Multi-fibre cable 24 single-mode fibres LSFH indoor Ø 900μm Televes

24-fibre cable with LSFH sheath for indoor installation. Each fibre has its own individual LSFH sheath and is identified with a specific colour (with or without a black ring, to duplicate the options). This provides a better organization and makes identification easier. Fiber coating Ø 900μm.

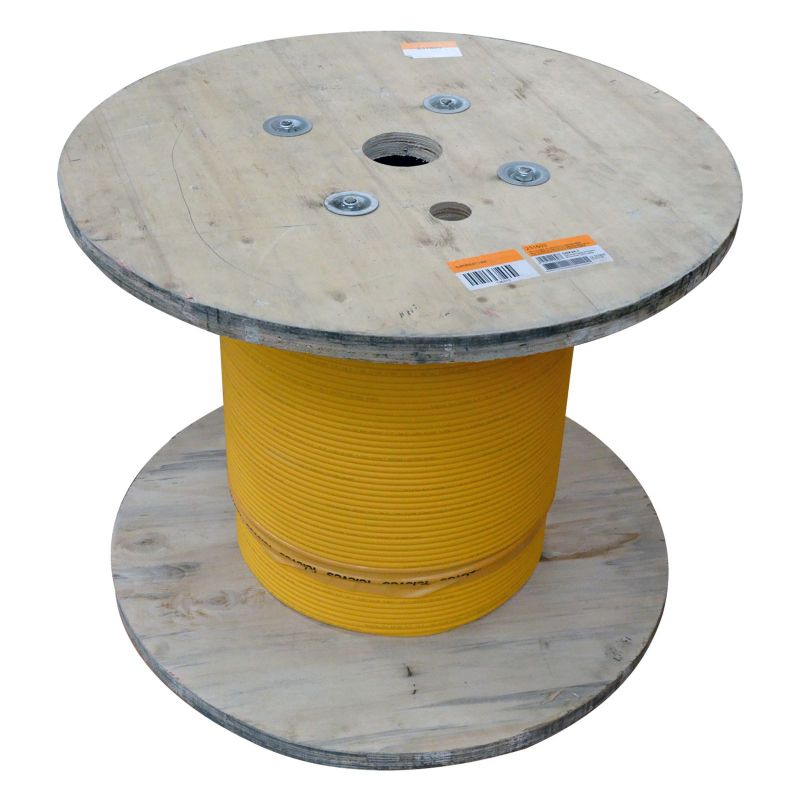

Provided in custom reels (by meters). Televes 231603

€5.77
Tax included
Reference televes-231603
Brand Televes
Quantity
Available in 24/48h

Free shipping
Multi-fibre cable 24 single-mode fibres LSFH indoor Televes

Multi-fibre cable 24 single-mode fibres LSFH indoor Ø 900μm Televes

€5.77

Check availability and shipping time.

24-fibre cable with LSFH sheath for indoor installation. Each fibre has its own individual LSFH sheath and is identified with a specific colour (with or without a black ring, to duplicate the options). This provides a better organization and makes identification easier.
Provided in custom reels (by meters).

Highlights

  • Low attenuation
  • Includes aramid fibres (kevlar) to reinforce its structure

Features

  • 9/125, ITU-T G.657A2 fibre type
  • Coating diameter adapted to the fibre: 900 μm
  • Equipped with a core guiding wire for resistance
  • LSFH sheath, orange colour

Specifications

Reference 231603
Cable type   Vertical distribution cable 24C
Fiber type   9/125 (G657A2)
Attenuation dB/Km ≤0.4 for 1310nm; ≤0.3 for 1550nm
Tight buffer material   LSFH (Low Smoke Free Halogen) & flame retardant
Tight buffer diameter mm 0.90 ±0.05
Jacket material   LSFH (Low Smoke Free Halogen) & flame retardant
Jacket color   PANTONE 136 C
Sub-unit material   LSFH (Low Smoke Free Halogen) & flame retardant
Cable diameter mm 8.0 ±0.2
Min. bending radius.   10 x Cable Diameter
Short tension N 1320
Short crush N/100mm 1000
Operation temperature ºC -20 ... 70
