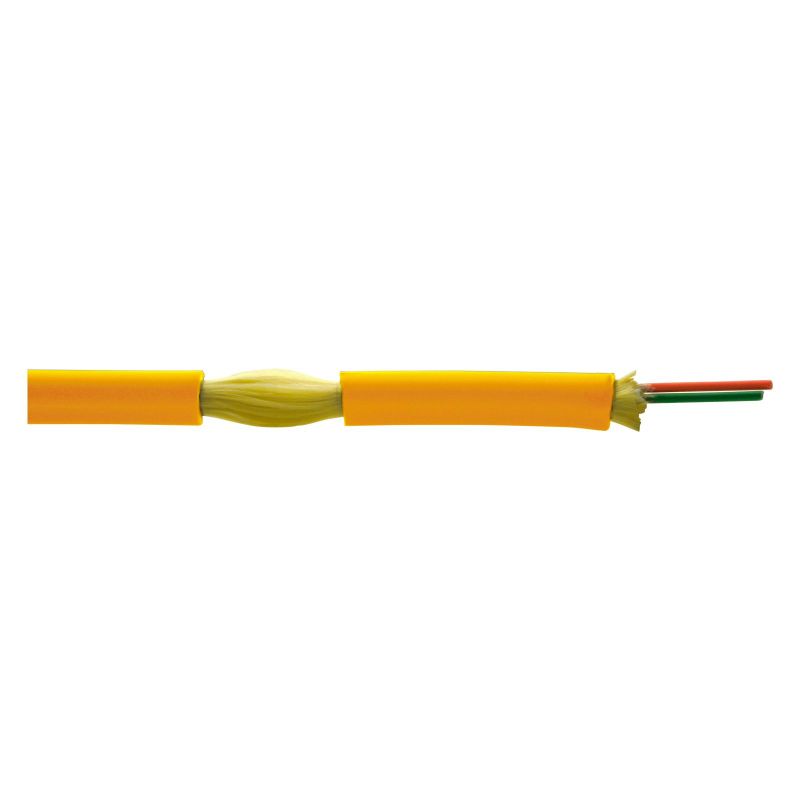

Plastic coil 750m 2 fibre cable single-mode indoor LSFH Televes
Plastic coil of 750m. 2-fibre cable with LSFH sheath for indoor installation. Each fibre has its own individual LSFH sheath and is identified with a specific colour. This provides a better organization and makes identification easier. Televes 231902
€0.69
Tax included
Reference
televes-231902
Brand
Televes
Plastic coil 750m 2 fibre cable single-mode indoor LSFH Televes
€0.69
2-fibre cable with LSFH sheath for indoor installation. Each fibre has its own individual LSFH sheath and is identified with a specific colour. This provides a better organization and makes identification easier.
Highlights
- Low attenuation
- Includes aramid fibres (kevlar) to reinforce its structure
Features
- 9/125, ITU-T G.657A2 fibre type
- Coating diameter adapted to the fibre: 900 μm
- LSFH sheath, orange colour
- Length of 750m
Specifications
| Reference | 231902 | ||
| Type of hose | Internal individual connection hose | ||
| Type of fiber | 9/125 (ITU-T G657A2) | ||
| Attenuation | dB/Km | 1310nm | ≤0.4 |
| 1550nm | ≤0.3 | ||
| Diameter adjusted fiber coating | mm | 0.90±0.05 | |
| Material of the hose cover | LSFH (Low Smoke Free Halogen) & flame retardant | ||
| Cover color | PANTONE 136 C | ||
| Diameter of the hose | mm | 3.5±0.2 (max. 4) | |
| Bending radius min. | 5 x diameter of the hose | ||
| Traction* | N | 500 | |
| Flattening | N/100mm | 500 | |
| Operating temperature | ºC | -20 ... 70 | |
* No material deformation or increased attenuation
Plastic coil of 750m. 2-fibre cable with LSFH sheath for indoor installation. Each fibre has its own individual LSFH sheath and is identified with a specific colour. This provides a better organization and makes identification easier. Televes 231902
