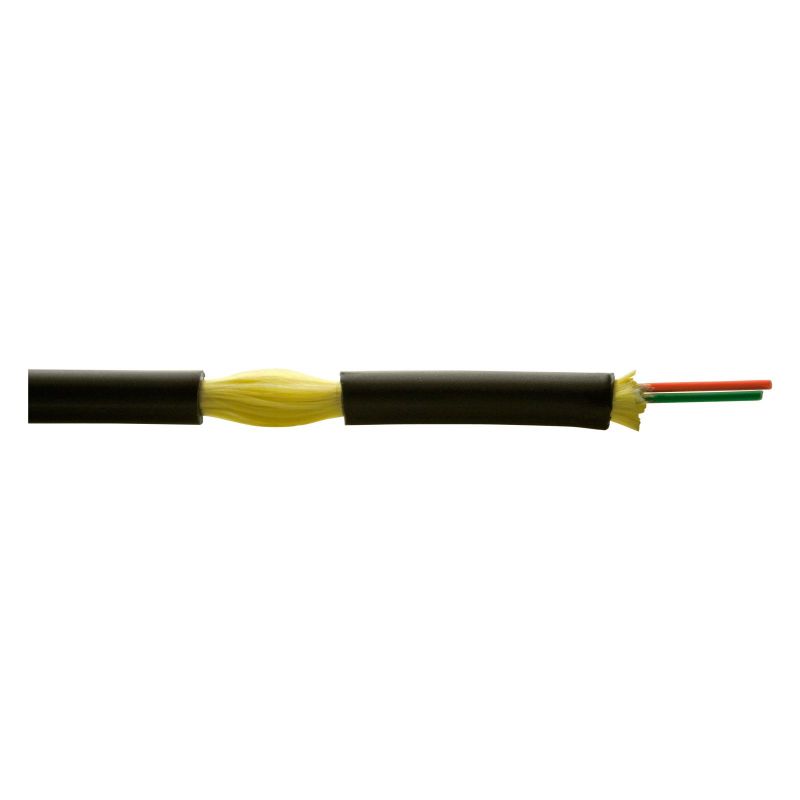

Plastic coil 500m 2-fiber cable single-mode LSFH outdoor Televes
500m plastic coil. 2-fibre cable with LSFH sheath for outdoor installation. Each fibre has its own individual LSFH sheath and is identified with a specific colour. This provides a better organization and makes identification easier. Televes 232002
€1.04
Tax included
Reference
televes-232002
Brand
Televes
Plastic coil 500m 2-fiber cable single-mode LSFH outdoor Televes
€1.04
2-fibre cable with LSFH sheath for outdoor installation. Each fibre has its own individual LSFH sheath and is identified with a specific colour. This provides a better organization and makes identification easier.
Highlights
- Low attenuation
- Includes aramid fibres (kevlar) to reinforce its structure
Features
- 9/125, ITU-T G.657A2 fibre type
- Coating diameter adapted to the fibre: 900 μm
- LSFH sheath, black colour
- Length of 500m
Specifications
| Reference | 232002 | ||
| Type of hose | Single external connection hose | ||
| Type of fiber | 9/125 (ITU-T G657A2) | ||
| Attenuation | dB/Km | 1310nm | ≤0.4 |
| 1550nm | ≤0.3 | ||
| Diameter adjusted fiber coating | mm | 0.90±0.05 | |
| Material of the hose cover | LSFH (Low Smoke Free Halogen) & flame retardant | ||
| Cover color | Black | ||
| Diameter of the hose | mm | 4.8±0.2 (max. 5) | |
| Bending radius min. | 10 x diameter of the hose | ||
| Traction* | N | 1200 | |
| Flattening | N/100mm | 1000 | |
| Operating temperature | ºC | -20 ... 70 | |
* No material deformation or increased attenuation
500m plastic coil. 2-fibre cable with LSFH sheath for outdoor installation. Each fibre has its own individual LSFH sheath and is identified with a specific colour. This provides a better organization and makes identification easier. Televes 232002
