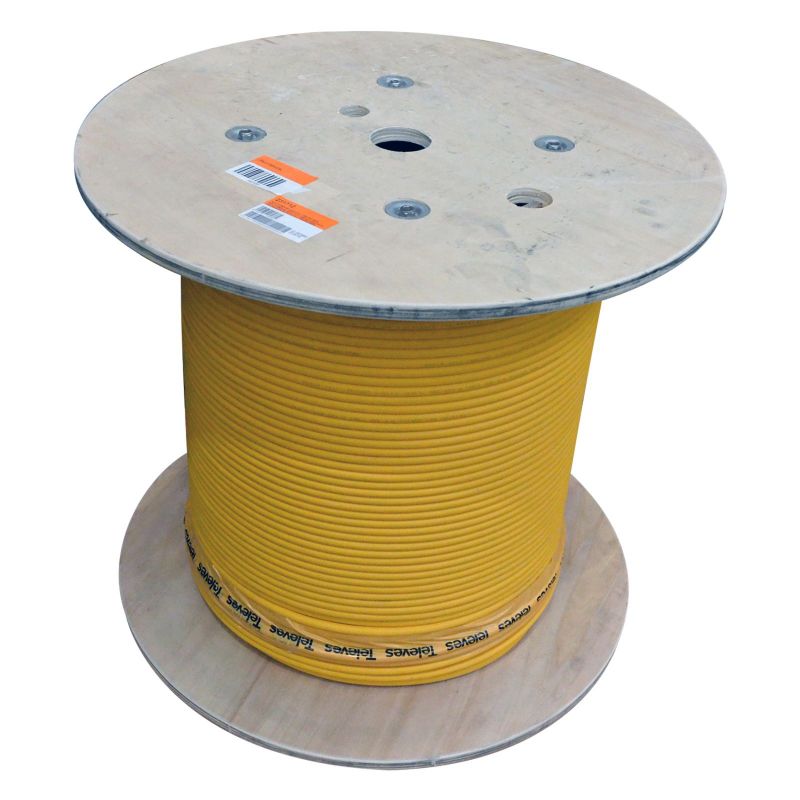

  • Multifibre fiber optic cable 48 fibers single-mode internal LSFH Ø 250μm Televes

Multifibre fiber optic cable 48 fibers single-mode internal LSFH Ø 250μm Televes

48-fibre cable with LSFH sheath for indoor installation. Divided in 6 micro-modules of 8 fibres each, each with its own LSFH sheath and different colour. This provides a better organization and makes identification easier.
Provided in custom reels (by meters). Fiber coating Ø 250μm.  Televes 231712

€6.74
Tax included
Reference televes-231712
Brand Televes
Quantity
Available in 24/48h

Free shipping
Multifibre fiber optic cable 48 fibers single-mode internal LSFH Ø 250μm Televes

Multifibre fiber optic cable 48 fibers single-mode internal LSFH Ø 250μm Televes

€6.74

48-fibre cable with LSFH sheath for indoor installation. Divided in 6 micro-modules of 8 fibres each, each with its own LSFH sheath and different colour. This provides a better organization and makes identification easier.
Provided in custom reels (by meters).

Highlights

  • Low attenuation
  • Water protection
  • Organized in fibre micro-modules
  • The micro-module includes aramid fibres (kevlar) to reinforce its structure

Features

  • 9/125, ITU-T G.657A2 fibre type
  • Coating diameter adapted to the fibre: 250 μm
  • Equipped with a core guiding wire for resistance
  • LSFH sheath, orange colour

Specifications

Cable type   Vertical distribution cable 48C
Fiber type   9/125 (G657A2)
Attenuation dB/Km ≤0.4 for 1310nm; ≤0.3 for 1550nm
Tight buffer material   LSFH (Low Smoke Free Halogen) & flame retardant
Tight buffer diameter mm 0.25 ±0.05
Jacket material   LSFH (Low Smoke Free Halogen) & flame retardant
Jacket color   PANTONE 136 C
Sub-unit material   LSFH (Low Smoke Free Halogen) & flame retardant
Cable diameter mm 9.5 ±0.5
Min. bending radius.   10 x Cable Diameter
Short tension N 1200
Short crush N/100mm 1000
Operation temperature ºC -20 ... 70
