Cable 4 fibers single-mode indoor LSZH Ø 250μm 300m Televes

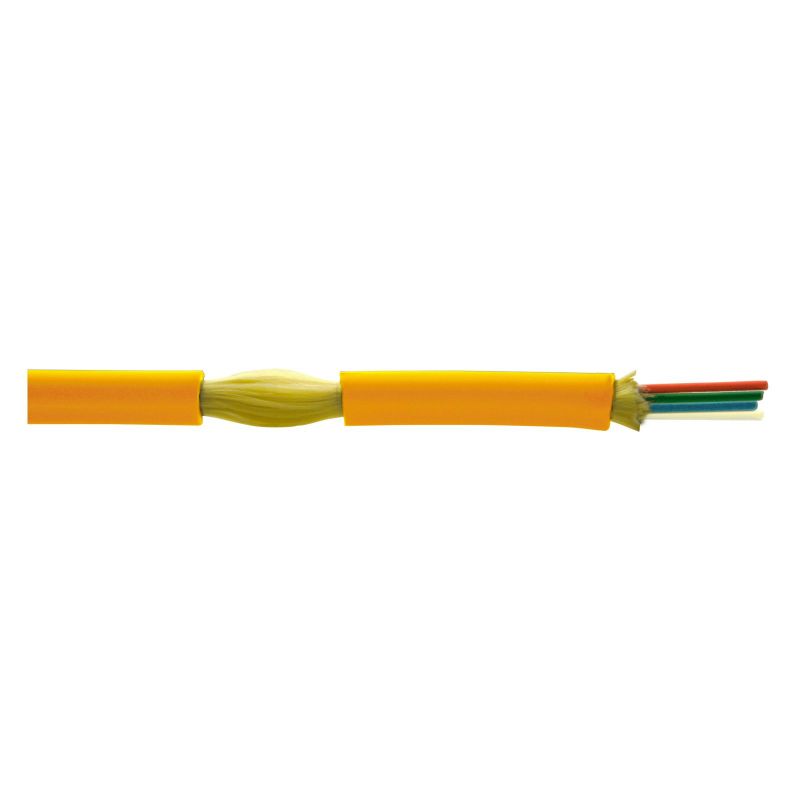

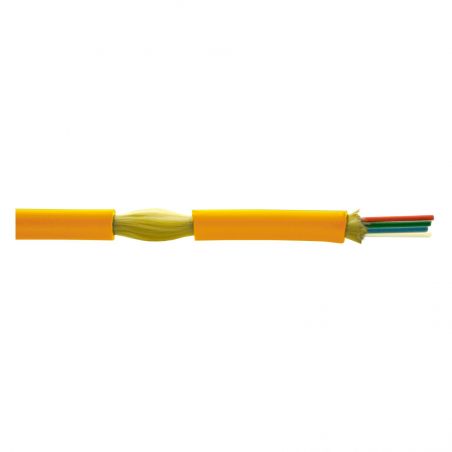

4-fibre cable with LSFH sheath for indoor installation. Each fibre has its own individual LSFH sheath and is identified with a specific colour. This provides a better organization and makes identification easier. Fiber coating Ø 250μm.
Provided in 300 m plastic reels. Televes 231911

€1.22
Tax included
Reference televes-231911
Brand Televes
Quantity
Available in 24/48h

Free shipping
Cable 4 fibers single-mode indoor LSZH Ø 250μm 300m Televes

Cable 4 fibers single-mode indoor LSZH Ø 250μm 300m Televes

€1.22

4-fibre cable with LSFH sheath for indoor installation. Each fibre has its own individual LSFH sheath and is identified with a specific colour. This provides a better organization and makes identification easier.
Provided in 300 m plastic reels.

Highlights

  • Low attenuation
  • Includes aramid fibres (kevlar) to reinforce its structure

Features

  • 9/125, ITU-T G.657A2 fibre type
  • Coating diameter adapted to the fibre: 250 μm
  • LSFH sheath, orange colour

Specifications

Cable type   Indoor distribution
Fiber type   9/125 (ITU-T G657A2)
Attenuation dB/Km 1310nm ≤0.4
1550nm ≤0.3
Tight buff er diameter mm 0.25 ± 0.05
Jacket material   LSFH (Low Smoke Free Halogen) & flame retardant
Jacket color   PANTONE 136 C
Cable diameter mm 3 ± 0.2
Min. bending radius   5 x diameter of the hose
Short tension* N 500
Short crush N/100mm 500
Operation temperature ºC -20 ... 70

* No deformation of material or increase in attenuation
