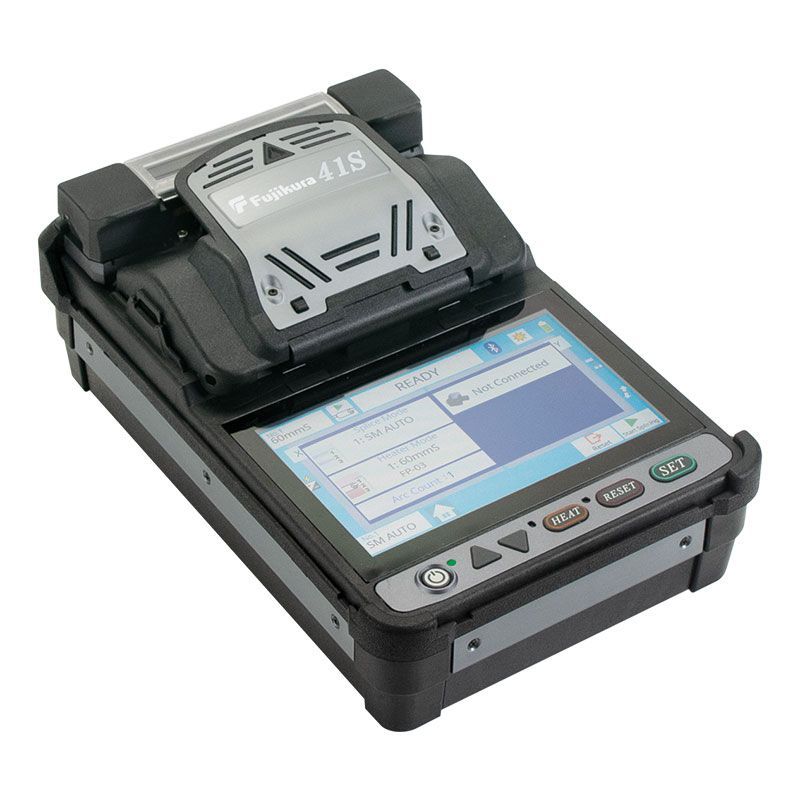

SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 59SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 7174 AND id_lang = 1 41S KIT Fujikura 41S Fusion Machine + CT-50 Precision Cutting Machine
41S KIT Fujikura 41S Fusion Machine + CT-50 Precision Cutting Machine
search
  • 41S KIT Fujikura 41S Fusion Machine + CT-50 Precision Cutting Machine

41S KIT Fujikura 41S Fusion Machine + CT-50 Precision Cutting Machine

Fujikura 41S Fusion Splicer, CT50 Cleaver, S31A Sheath clamps (installed), SP-31 Set Plates, ADC-19A AC Adapter, BTR-11 Battery Pack (installed), ACC-09 Power Cord, ELCT2-16B Spare Electrodes (pair), Operation Manual on CD, Quick Reference Guide, SS-03 Single Fiber Stripper and CC-36 Transit Case.

€2,957.00
Tax included
Reference fujikura-41s-ct50
Brand Fujikura
Quantity
Out-of-Stock

Free shipping

Designed for FTTX applications, the next-generation smart 41S splicer boasts innovative features in a compact and robust package.

Wirelessly connecting to the CT50 fibre cleaver using Bluetooth technology, the 41S enables a range of pioneering functions that will improve the overall installation time, cost and efficiency for operators. The 41S offers installers the convenience of a 5" colour touch-panel display, improved v-groove illumination and the benefit of easy splice protector positioning. The machine re-assures users of reliable splice results using CORE loss estimation using Warm Image Splicing Technology.

The issue of poor fibre cleaving due to worn, incorrectly adjusted or damaged cleaver blades is conveniently dealt with. When the 41S detects a high cleave angle or bad end shape, it sends a blade position change instruction to the cleaver The CT50 cleaver then rotates the cleaver blade automatically to the next position, restoring optimum cleaving performance.

By utilising the low radio power of Bluetooth technology, other equipment nearby will not be interfered with. Operators can benefit from the "always on" technology due to the low power consumption of the Bluetooth, which means that batteries can last for several months.

Our latest addition to the splicing family, the 41S, is flexible, smart and efficient and therefore makes a huge difference to this process. The easy-to-handle qualities of the solution means quick and simple splicing, with performance never being compromised.

In addition to cleave performance, the smart splicer can also wirelessly monitor battery and power usage of the CT50 cleaver. The 41S comes enabled with a touch screen menu as standard, but also maintains the traditional easy-to-use hard button navigation system. The splicer retains all of the unique, class-leading features from the current high-performance flagship line-up of Fujikura splicers, including: quick splice and heat times, fully ruggedized features, and user customizable settings.

Features

  • Warm Splice Imaging (WSI) loss estimation technology
  • Fast splicing time 6sec
  • Bluetooth enabled cleaver management
  • Two-camera active v-groove alignment
  • 5" touchscreen monitor
  • Interchangeable sheath clamps and fiber holders
  • Fully ruggedized for shock, moisture and dust resistance
  • Extended-life electrodes, 5,000 splices, exchangeable without tools
  • Long-life battery (200 splices/shrinks per charge)
  • 2 years warranty.

The Kit includes:

  • Fujikura 41S Fusion Splicer
  • CT50 Cleaver
  • S31A Sheath clamps (installed)
  • SP-31 Set Plates
  • ADC-19A AC Adapter
  • BTR-11 Battery Pack (installed)
  • ACC-09 Power Cord
  • ELCT2-16B Spare Electrodes (pair)
  • Operation Manual on CD
  • Quick Reference Guide
  • Fujikura SS-03 triple fiber fiber peeler
  • CC-36 Transit Case

Specifications

Data Sheet

REFERENCE GUIDE
