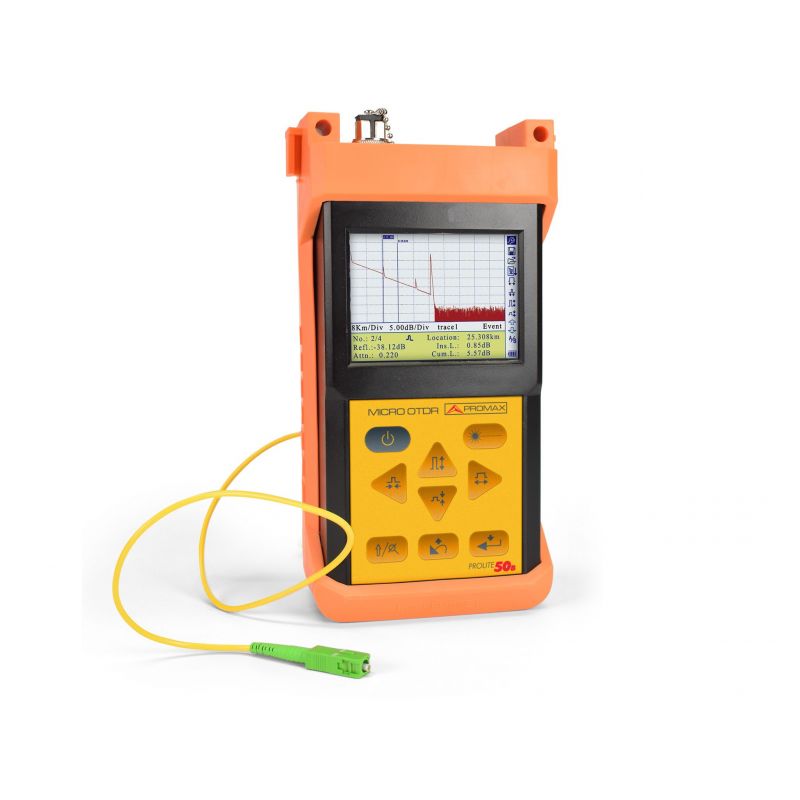

Promax PROLITE-50B portable single mode OTDR. Double window 1310/1550 0.3-240 km 28/28 dBs (SC/APC adapter included)
The OTDR model PROLITE-50B is the perfect tool to characterize optical fibers, from a single cable to the evaluation of an entire extensive network. It is calibrated at the wavelengths of 1310 nm and 1550 nm, and has a dynamic range of 28 dB at both lengths.
€2,286.90
Tax included
Reference
promax-prolite-50b
Brand
Promax
Promax PROLITE-50B portable single mode OTDR. Double window 1310/1550 0.3-240 km 28/28 dBs (SC/APC adapter included)
€2,286.90
The OTDR model PROLITE-50B is the perfect tool to characterize optical fibers, from a single cable to the evaluation of an entire extensive network. It is calibrated at the wavelengths of 1310 nm and 1550 nm, and has a dynamic range of 28 dB at both lengths.
It is perfect for daily use in the field or in the laboratory, as well as fiber manufacturing and network deployment or maintenance. It allows storing and transferring distribution curves to a PC. With the included software you can analyze, include in reports and print them.
Specifications
| Wavelengths (±20 nm) | 1310 / 1550 nm |
| Dynamic margin | 28 dB / 20 dB |
| Fiber type | Single mode |
|
Dead zone: EDZ (of events) / ADZ (of attenuation) |
2,5 m / 8 m |
| Tipo de conector | FC / PC (interchangeable, SC, ST) |
|
Selectable margins |
0,3 / 1,3 / 2,5 / 5 / 10 / 20 / 40 / 80 / 160 / 240 km |
| Pulse width | 30 / 100 / 300 ns, 1 / 2,5 µs |
| Screen | TFT LCD 3,5” |
| Average time | 15 / 30 / 60 / 120 / 180 s |
| Memory | 1000 records |
| PC connection | USB |
| Autonomy | 8 h |
| Dimensions | 110 (An.) x 220 (Al.) x 70 (Pr.) mm |
| Weight | 1 kg |
