SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 7SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 13389 AND id_lang = 1 PROLITE-51B OTDR single-mode portable color. Double window 1310/1550. 0.3-240 km. 28/28 dBs (SC / APC adapter included)
search

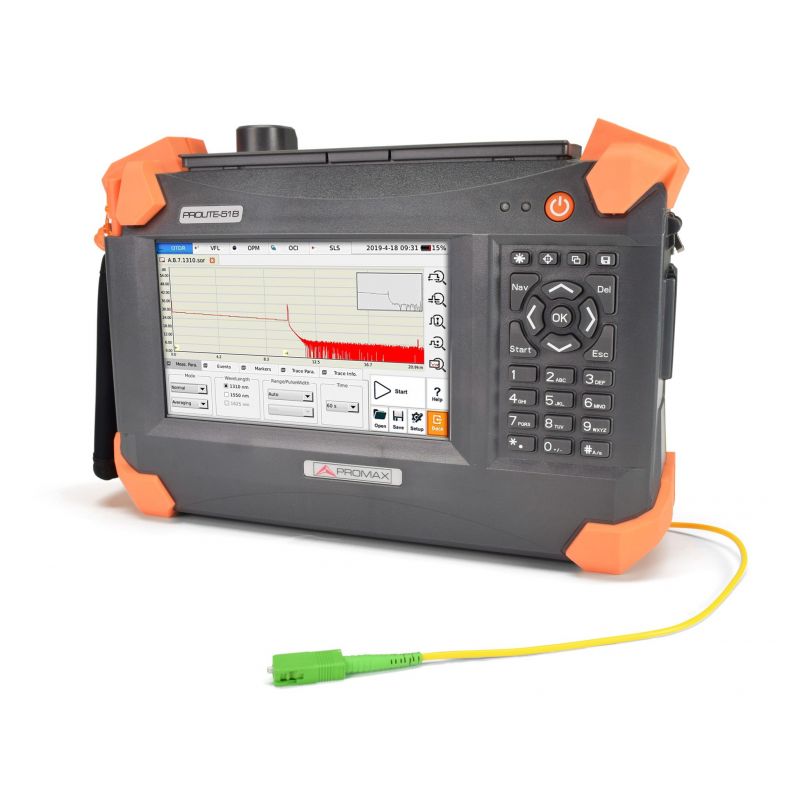

PROLITE-51B OTDR single-mode portable color. Double window 1310/1550. 0.3-240 km. 28/28 dBs (SC / APC adapter included)

The OTDR PROLITE-51B models are optical reflectometers for single-mode triple wavelength fiber optic fiber (1310, 1550 and 1625 nm) with a dynamic range of 43, 42 and 42 dB respectively. They integrate a visual fault locator (VFL) to help quickly locate breaks in fiber optic cables under analysis.

€11,979.00
Tax included
Reference promax-prolite-51b
Brand Promax
Quantity
Available in 24/48h

Free shipping

PROLITE-51B OTDR single-mode portable color. Double window 1310/1550. 0.3-240 km. 28/28 dBs (SC / APC adapter included)

€11,979.00

The OTDR PROLITE-51B models are optical reflectometers for single-mode triple wavelength fiber optic fiber (1310, 1550 and 1625 nm) with a dynamic range of 43, 42 and 42 dB respectively. They integrate a visual fault locator (VFL) to help quickly locate breaks in fiber optic cables under analysis.

They allow to carry out automatic or manual tests and integrate intelligent and multifunction analyzes. Its ergonomic design allows you to easily hold them thanks to its handle.

They have 2 GB of memory to store data that can be copied and processed on the PC to generate reports and analysis on the measurements. Allows connection of external storage devices via USB.

The PROLITE-51B has exclusive features in an OTDR, such as the possibility of controlling the device through a mouse and keyboard through the USB port.

Specifications

  • WAVE LENGTHS (± 20 nm): 1310/1550/1625 nm
  • DYNAMIC MARGIN: 43 dB / 42 dB / 42 dB
  • FIBER TYPE: Single mode
  • DEAD ZONE:
  • EDZ (event) 0.8 m
  • ADZ (attenuation) 4 m
  • CONNECTOR TYPE: FC / PC (interchangeable, SC, ST)
  • VISUAL FAILURE LOCATOR: Detection distance up to 5 km
  • SELECTABLE MARGINS: 1.3 / 2.5 / 8/10/20/40/80/160/240 km
  • PULSE WIDTH:
  • 5/10/30/100/300 ns
  • 1 / 2.5 / 10/20 µs
  • DISPLAY: 7 "Touch TFT
  • AVERAGE TIME: Fast / 15/30/45/60/90/120/180 s
  • MEMORY: 2 GB
  • PC CONNECTION: USB, 10/100 Mbps RJ45
  • USB MEMORY CONNECTION: Included
  • AUTONOMY: 10 h
  • DIMENSIONS: 220 (W) x 110 (H) x 70 (D) mm
  • WEIGHT: 2.1 kg
