search

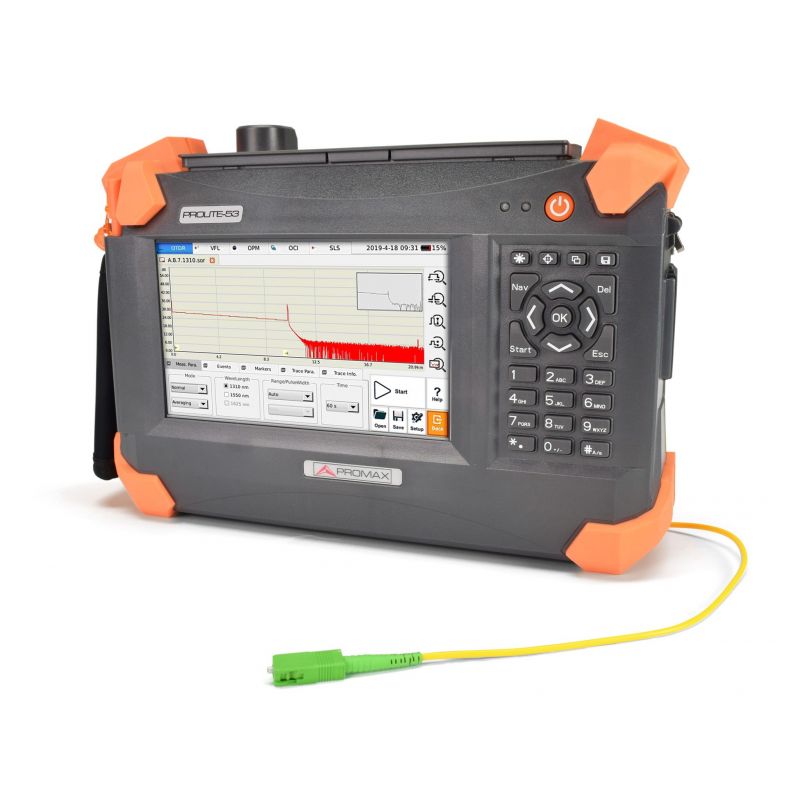

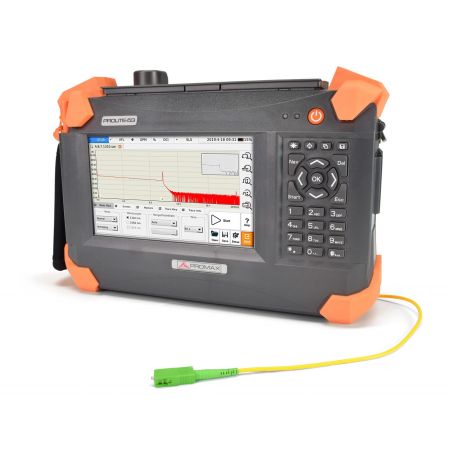

Promax PROLITE-53. OTDR PANORAMIC single mode/multimode QUAD 850/1300/1310/1550 23/36/38/36 dBs

The OTDR PROLITE-53 models are optical reflectometers for single-mode and multimode quad-wavelength optical fiber (850, 1300, 1310 and 1550 nm) with dynamic range of 23, 28, 38 and 36 dB respectively. They integrate a visual fault locator (VFL) to help quickly locate breaks in fiber optic cables under analysis.

€11,495.00
Tax included
Reference promax-prolite-53
Brand Promax
Quantity
Available in 24/48h

Free shipping

Promax PROLITE-53. OTDR PANORAMIC single mode/multimode QUAD 850/1300/1310/1550 23/36/38/36 dBs

€11,495.00

The OTDR PROLITE-53 models are optical reflectometers for single-mode and multimode quad-wavelength optical fiber (850, 1300, 1310 and 1550 nm) with dynamic range of 23, 28, 38 and 36 dB respectively. They integrate a visual fault locator (VFL) to help quickly locate breaks in fiber optic cables under analysis.

They allow to carry out automatic or manual tests and integrate intelligent and multifunction analyzes. Its ergonomic design allows you to easily hold them thanks to its handle.

They have 2 GB of memory to store data that can be copied and processed on the PC to generate reports and analysis on the measurements. Allows connection of external storage devices via USB.

The PROLITE-53 has exclusive features in an OTDR, such as the possibility of controlling the device through a mouse and keyboard through the USB port.

Specifications

  • WAVE LENGTHS (± 20 nm): 850/1300/1310/1550 nm
  • DYNAMIC MARGIN: 23 dB / 28 dB / 38 dB / 36 dB
  • FIBER TYPE: Singlemode, Multimode
  • DEAD ZONE:
  • EDZ (of events) 1 m
  • ADZ (attenuation) 4.5 m / 4.5 m / 4 m / 4 m
  • CONNECTOR TYPE: FC / PC (interchangeable, SC, ST)
  • VISUAL FAILURE LOCATOR: Detection distance up to 5 km
  • SELECTABLE MARGINS:
  • Single Mode Fiber: 1.3 / 2.5 / 8/10/20/40/80/160/240 km
  • Multimode fiber: 5/10/30 ns; 1 / 2.5 µs
  • PULSE WIDTH:
  • Single Mode Fiber 5/10/30/100/300 ns; 1 / 2.5 / 10/20 µs
  • Multimode fiber 5/10/30 ns; 1 / 2.5 µs
  • DISPLAY: 7 "Touch TFT
  • AVERAGE TIME: Fast / 15/30/45/60/90/120/180 s
  • MEMORY: 2 GB
  • PC CONNECTION: USB, 10/100 Mbps RJ45
  • USB MEMORY CONNECTION: Included
  • AUTONOMY: 10 h
  • DIMENSIONS: 220 (W) x 110 (H) x 70 (D) mm
  • WEIGHT: 2.1 k
