SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 7SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 13401 AND id_lang = 1 Promax IC-019D Voice and data network analyzer (Category 6A Certifier) 500 MHz
search

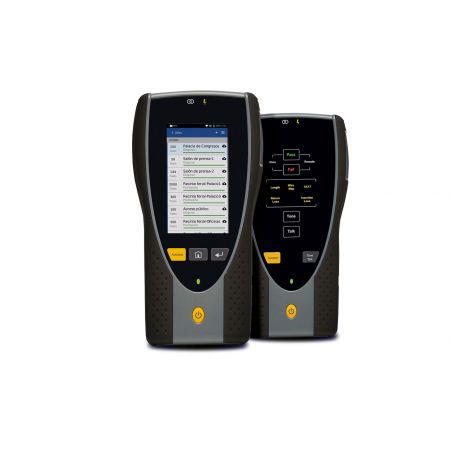

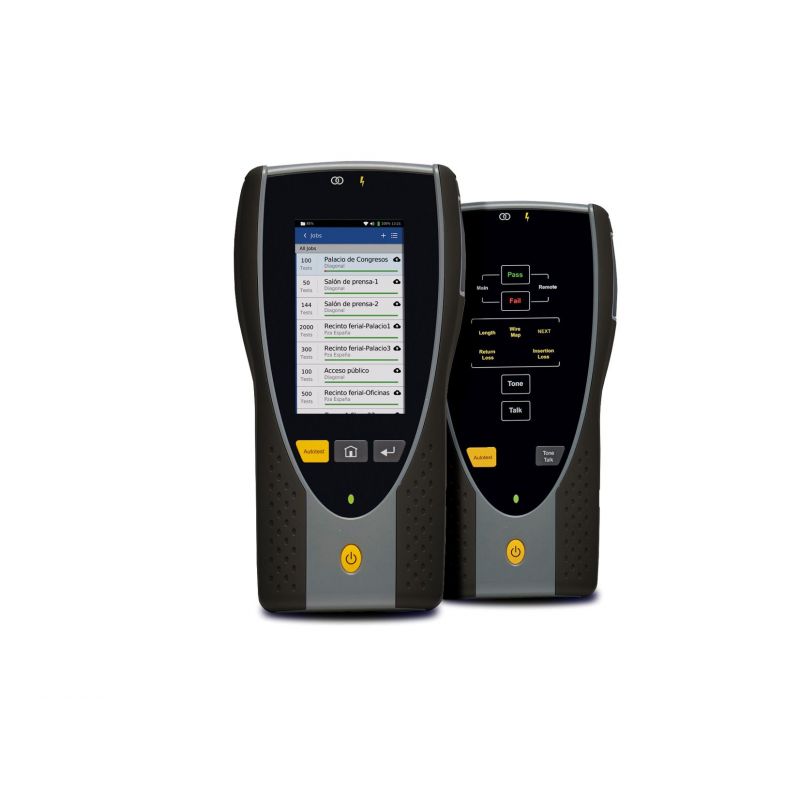

Promax IC-019D Voice and data network analyzer (Category 6A Certifier) 500 MHz

The wiring certificate IC-019D (CAT 6a) is a LAN certificate for copper and fiber optic cable (multimode and single mode) with replaceable adapters that include ultra fast tests: Run and store a CAT6A test in just 7 seconds and use connectors Replaceable long-lasting input (guarantee of 2000 insertion and removal operations).

€12,063.70
Tax included
Reference promax-ic-019d
Brand Promax
Quantity
Available in 24/48h

Free shipping

Promax IC-019D Voice and data network analyzer (Category 6A Certifier) 500 MHz

€12,063.70

The wiring certifier IC-019D (CAT 6a) is a LAN certifier for copper and fiber optic cable (multimode and single mode) with replaceable adapters that includes ultra-fast tests: Run and store a test on CAT6A in just 7 seconds and use connectors long-term replaceable input (guarantee of 2000 insertion and removal operations).

With fleet management in the cloud, project managers can pre-configure the certifier so that field technicians do not have to worry more than carry out the established tests. All this avoids possible errors and reduces the time needed to prepare reports to customers.

Includes advanced measures such as Wire Mapping, Power sum NEXT, Power sum ACR-N, Power sum ACR-F, Alien crosstalk (optional) together with the most common and essential measures such as DC loop resistance, Wiring length, Crosstalk, Insertion loss, etc.

Specifications

CATEGORY CAT6a (IC-019D) / CAT8 (IC-088D)
MEASUREMENTS Wire mapping, DC loop resistance, length, capacity, Crosstalk, insertion loss (formerly attenuation), ACR-N (formerly ACR), return loss, average impedance, propagation delay, lag delay, power sum NEXT, power sum ACR-N (formerly power sum ACR), ACR-F (formerly ELFEXT), power sum ACR-F (formerly power sum ELFEXT), alien crosstalk (with the AXT measurement option)
TYPES OF SUPPORTED CABLES - TIA/EIA Category 3, 4, 5, 5E, 6 y 6A: 100Ω
- ISO/IEC Class C, D, E, EA, F, FA: 100Ω
- Category 6/6A, Class E/EA RJ-45 permanent link adapters: shielded and unshielded cable, supplies universal adapters channel, permanent link measurement and channel
ADAPTADORES DISPONIBLES - Adaptador de enlace permanente (incluido)
- Módulos de prueba para RJ45, GC45, TERA, EC7, etc (opcionales)
- Módulo de prueba para fibra óptica (opcional)
- Cabezales CAT7 / CAT7A (opcionales)
