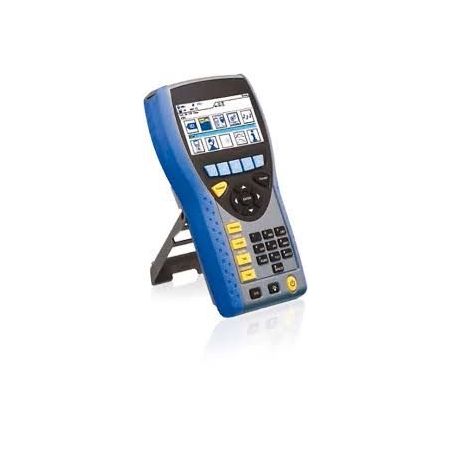

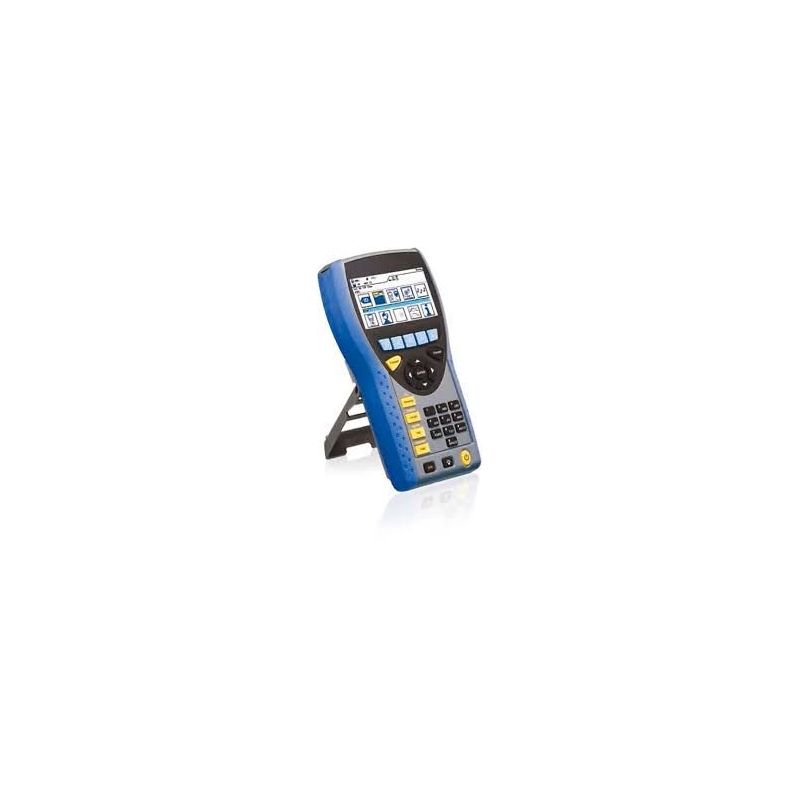

Promax IC-019C Voice and data network analyzer (Category 6A Certifier) with reflectometer
They include measures of Time Domain Return Loss (TDRL) and Time Domain NEXT (TDX), as well as quick tests, customizable reports and smartphone APP.
€9,425.90
Tax included
Reference
promax-ic-019c
Brand
Promax
Promax IC-019C Voice and data network analyzer (Category 6A Certifier) with reflectometer
€9,425.90
They include measures of Time Domain Return Loss (TDRL) and Time Domain NEXT (TDX), as well as quick tests, customizable reports and smartphone APP.
The wiring certifiers IC-019C (CAT6a) are LAN certifiers capable of certifying installations with great precision, exceeding the requirements of the specifications for CAT7 and CAT6a. They include measures of Time Domain Return Loss (TDRL) and Time Domain NEXT (TDX).
Locate hidden connections, cable failures and use the light source (visual fault locator) to identify optical fibers or find breakpoints quickly.
Reduce maintenance costs with long-lasting replaceable input connectors (2000 insertion and removal operations guaranteed).
Using the smartphone APP, you can share measurement reports that can be customized using the management software. The reports can be from a simple summary of pass / fail measures to a complete report with graphics and customized with the logo and company details.
Specifications
| CATEGORY | CAT6a |
| MEASUREMENTS | Wire mapping, DC loop resistance, length, capacity, Crosstalk, insertion loss (formerly attenuation), ACR-N (formerly ACR), return loss, average impedance, propagation delay, lag delay, power sum NEXT, power sum ACR-N (formerly power sum ACR), ACR-F (formerly ELFEXT), power sum ACR-F (formerly power sum ELFEXT), alien crosstalk (with the AXT measurement option) |
| TYPES OF SUPPORTED CABLES | - TIA/EIA Category 3, 4, 5, 5E, 6 y 6A: 100Ω - ISO/IEC Class C, D, E, EA, F, FA: 100Ω - Category 6/6A, Class E/EA RJ-45 permanent link adapters: shielded and unshielded cable, supplies universal adapters channel, permanent link measurement and channel |
| ADAPTADORES DISPONIBLES | - Adaptador de enlace permanente (incluido) - Módulos de prueba para RJ45, GC45, TERA, EC7, etc (opcionales) - Módulo de prueba para fibra óptica (opcional) - Cabezales CAT7 / CAT7A (opcionales) |
