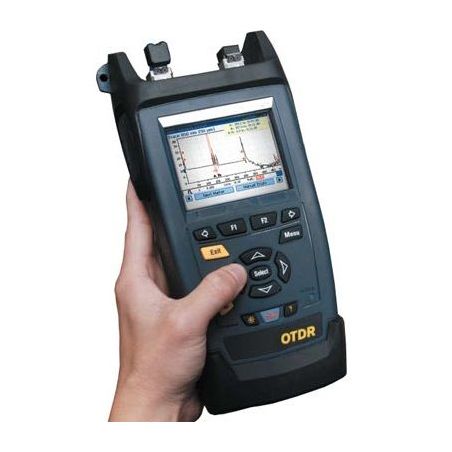

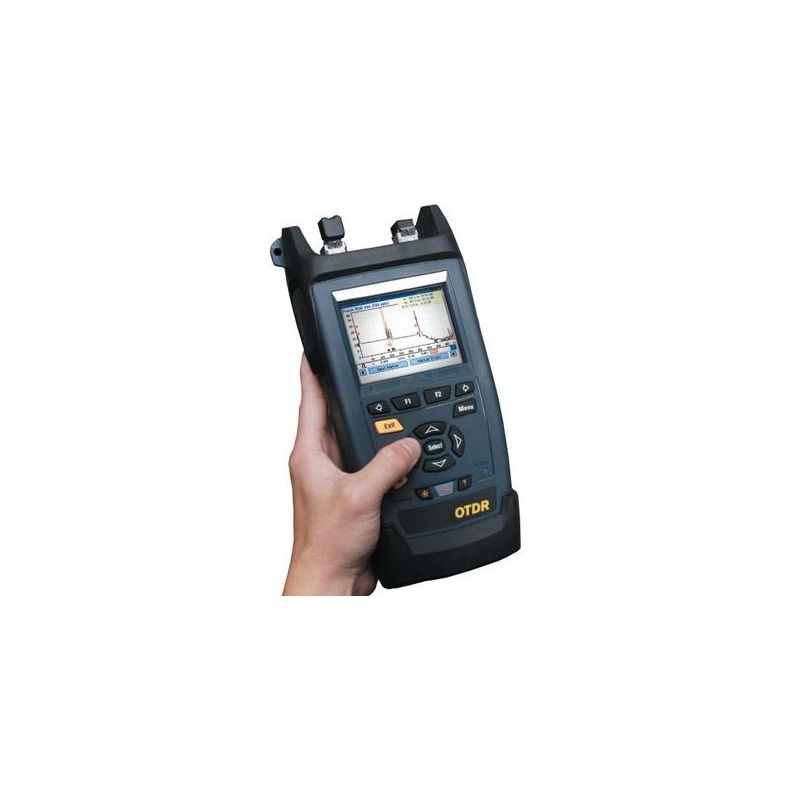

Designed with the needs of installers in mind, the Micro OTDR IC-061B is a lightweight, ergonomic device equipped with excellent features. It is the ideal tool for the installation and maintenance of LAN networks, Campus and WAN fiber networks.

The Micro OTDR IC-061B combines high precision with an easy-to-use interface: Pressing a key can accurately characterize connectors and splices, for a quick location of any infrastructure failure.

The Micro OTDR IC-061B is delivered in a shock-proof case, together with PC software, rechargeable batteries and charger.

Features

• Reduced dead zone of events and attenuation - Locate and characterize events accurately
• Autotest function - Taking measurements by pressing a single button.
• Acquisition function (Datalogger)
• Interchangeable optical adapters
• USB port for PC
• Option OTDR certifier for certification level 2
• Optional detection of macrobends for single mode fibers
• Prepared for the inspection of fiber with probe by port for video inspection

Applications

• Level-2 Certification - For networks in buildings and companies that require a reflectometric measurement
• Increase in bandwidth in existing optical cabling
• Troubleshooting - The micro OTDR is prepared to meet the most demanding needs
• Valid for WAN and FTTH cabling thanks to the high dynamic range of the micro OTDR IC-061B

PC Software

• Dumping data to a USB memory or directly to the PC
• Automatic or manual interpretation (EXPERT mode) of traces
• Manual interpretation - Up to 4 markers: Attenuation (dB and dB / km), return loss and reflection
• Limits PASA / NO PASA and bidirectional measures viewer
• Export of files in BELLCORE ™ format compatible with any standard OTDR.
• Export to PDF to protect measurement files against modifications
