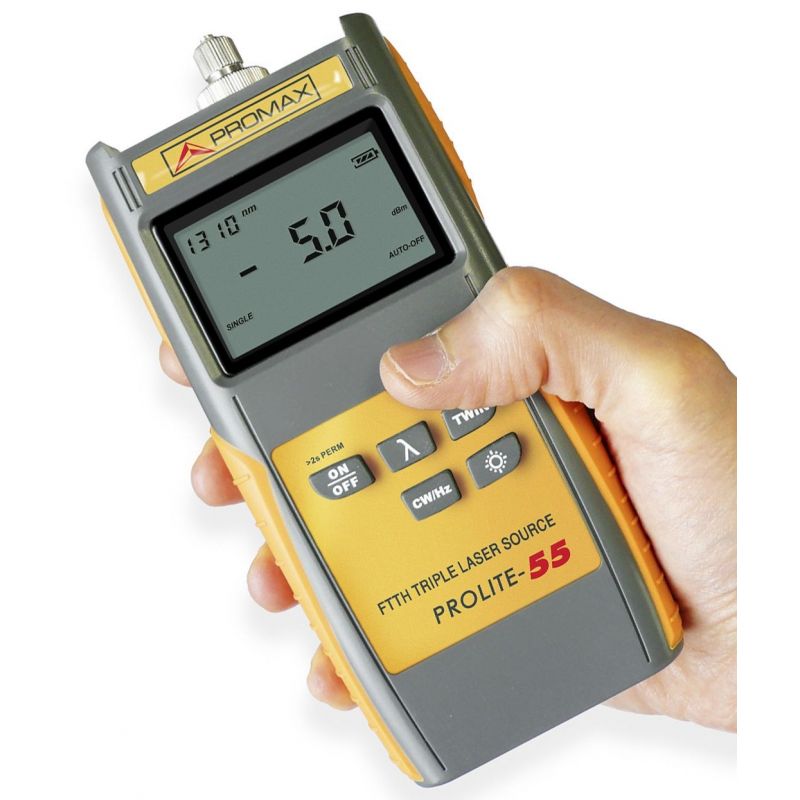

Promax PROLITE-55 LASER triple low cost source

The PROLITE-55 provides the wavelengths used in the ICT-2 (1310, 1490 and 1550 nm) with excellent stability for testing fibers with precision, especially in FTTx. This compact instrument works both in continuous wave (CW) and in modulated mode.

€877.25
Tax included
Reference promax-prolite-55
Brand Promax
Quantity
Available in 24/48h

Free shipping
Promax PROLITE-55: Low cost triple LASER source

Promax PROLITE-55 LASER triple low cost source

€877.25

The PROLITE-55 offers 1310nm, 1490nm, 1550nm with excellent stability for accurate fiber testing, especially in FTTx. This compact instrument operates in either continuous wave (CW) mode or modulated mode.

The PROLITE-55 can transmit with a wavelength identification digital encrypted protocol, enabling the PROLITE-63B power meter to automatically shift to the proper calibration wavelength. This feature reduces the need of communication between the two users and decrease the potential for error.

Features

  • Easy to use, straight forward operation.
  • Digital communication with PROLITE-63B power meter for auto wavelength recognition.
  • Continuous or modulated output.
  • LCD backlight for easy operation in dark environments.
  • Rechargeable internal battery.
  • Three-year warranty.

Specifications

Model PROLITE-55 - Low cost triple LASER source
Output wavelength 1310, 1490, 1550 nm ±20 nm
Emitter Type LD
Output Stability (@ 15 minutes) < ±0.05 dB (1310 and 1550 nm), < ±0.1 dB (1490 nm)
Output Stability (@ 5 hours or above) < ±0.1 dB (1310 and 1550 nm), < ±0.2 dB (1490 nm)
Spectral Width 3 nm
Output Frequency 270 Hz, 1 kHz, 2 kHz
Output Power -5 dBm ±0.5 dB
Back-light Yes
POWER SUPPLY 2 x Ni-MH AA batteries. Auto power off function.
DIMENSIONS & WEIGHT W. 76 x H. 160 x D. 45 mm, 270 g

More information here
