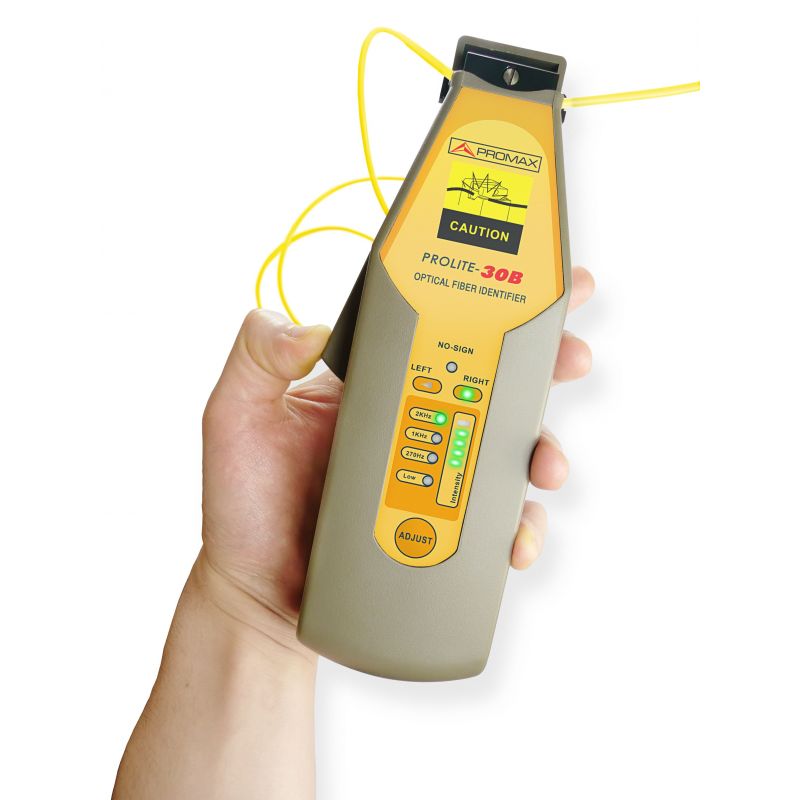

Promax PROLITE-30B - Optical fiber identifier. Live fiber locator
The PROLITE-30B fiber optic identifier is a portable and low cost instrument designed to detect optical signals without interrupting data traffic. Based on non-destructive macrobending technology, the PROLITE-30B does not alter traffic or damage or produce mechanical stress on the fiber, which allows efficient, accurate and reliable data acquisition.
€801.02
Tax included
Reference
promax-prolite-30b
Brand
Promax
Promax PROLITE-30B - Optical fiber identifier. Live fiber locator
€801.02
The PROLITE-30B Optical Fiber Identifier is a low cost, portable instrument designed to detect optical signals without disrupting traffic.
Based on non-destructive macrobending technology, the PROLITE-30B doesn’t disrupt traffic, damage or overstress the fiber, enabling efficient, accurate and reliable data acquisition.
During maintenance, installations, rerouting or restorations, it’s often necessary to isolate a specific fiber. By simply clamping the PROLITE-30B onto a fiber, the OFI will indicate if there is a signal, a Modulated Signal, or traffic and show signal direction.
Features
- Detects 270Hz, 1kHz and 2kHz.
- Signal direction indication.
Specifications
| SPECIFICATIONS | PROLITE-30B - Optical fibre identifier |
|
Recognizable Wavelength Range Recognizable signal type Detector Type Clamp Type Sensitivity Continuous wave Modulated signal LED Indicator |
900 to 1650 nm CW, 2 kHz, 1 kHz, 270 Hz ±5% InGaAs 2 pcs GES WITHOUT PRIOR NOTICE. 09-14 H0.9/0.25 for bare fibers ; H2.0/3.0 for jacketed fiber
+11 dB to -20 dBm (1310 nm); +11 dB to -30 dBm (1550 nm) +11 dB to -10 dBm (1310 nm); +11 dB to -18 dBm (1550 nm) Signal traffic, signal frequency (2 kHz, 1 kHz or 270 Hz), signal intensity (5 grades), low battery |
| POWER SUPPLY | 2 x 1.5 AA batteries |
| MECHANICAL FEATURES Dimensions eight |
W. 62 x H. 202 x D. 36 mm 270 g |
More information here
The PROLITE-30B fiber optic identifier is a portable and low cost instrument designed to detect optical signals without interrupting data traffic. Based on non-destructive macrobending technology, the PROLITE-30B does not alter traffic or damage or produce mechanical stress on the fiber, which allows efficient, accurate and reliable data acquisition.
