SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 7SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 2132 AND id_lang = 1 Promax PL-575 - Economical measurement kit for FTTH ICT-2

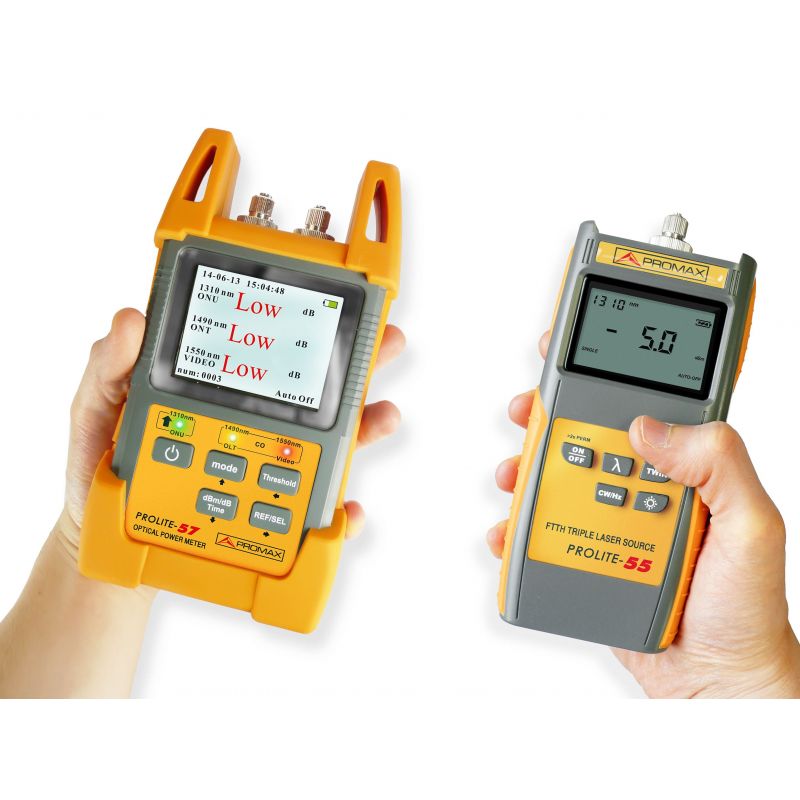

Promax PL-575: Fibre optics “Low Cost” Measurement kit
search
  • Promax PL-575: Fibre optics “Low Cost” Measurement kit

Promax PL-575 - Economical measurement kit for FTTH ICT-2

The PL-575 Kit includes a PROLITE-55 model light source and an ICT PROLITE-57 meter. Both devices are designed under the "low cost" philosophy and have the basic functions for the certification of optical distribution installations. Through the established routines of measurement, the operator can develop the protocol required in the ICT-2.

€2,007.39
Tax included
Reference promax-pl-575
Brand Promax
Quantity
Available in 24/48h

Free shipping
Promax PL-575: Fibre optics “Low Cost” Measurement kit

Promax PL-575 - Economical measurement kit for FTTH ICT-2

€2,007.39

The PL-575 Kit includes a light source PROLITE-55 model and a PROLITE-57 optical power meter. Both instruments are designed under the “low cost” philosophy and are equipped with the basic functions for the certification of optical distribution facilities.

Through established measurement routines, the operator can develop the proper measurements protocol. The installer takes a starring role in the mechanics of measurement and interpretation.

PROLITE-57 Optical meter

PROLITE-57 is a portable, hih quality PON optical power meter for FTTx networks using PON technologies (Passive Optical Network). It is capable to measure all three signals (1310 nm, 1490 nm and 1550 nm). The simple operation and accurate measurement make it an ideal tool for xPON networks installation, certification and troubleshooting.
  • Designed for field and lab testing.
  • PASS/FAIL mode. User definable threshold value.
  • Battery operation for more than 20 hours.

PROLITE-55 Triple LASER source

PROLITE-55 LASER light source ofers 1310 nm, 1490 nm and 1550 nm wavelengths for accurate fiber testing, especially in FTTx. This compact instrument operates in either continuous wave (CW) mode or modulated mode.
  • Easy-to-use, straight forward operation.
  • LCD backlight for easy operation in dark environments.

Pigtails for calibration

Connecting them between the light source and the power meter,
they allow the calibration of the measurements taken by the latter.

Hard suitcase for transport

Suitcase rigid and resistant, ideal to protect the kit from bumps,
shakes and weather.

Specifications

SPECIFICATIONS PL-575
KIT COMPONENTS
  PROLITE-57
  PROLITE-55
  Otros
Optical power meter.
Light source.
Pigtails for calibration and hard suitcase for transport
PROLITE-57 - It measures 1310, 1490 and 1550 nm wavelengths
- For xPON networks
- PASS/FAIL mode
- User definable threshold values
- 20 h battery operation time
PROLITE-55 - It generates 1310, 1490, 1550 nm wavelengths
- Continuous wave mode (CW) or modulated mode
- Straight forward operation
- LCD backlight

More information here
