  • INNO Instruments View5: Core-alignment splicer

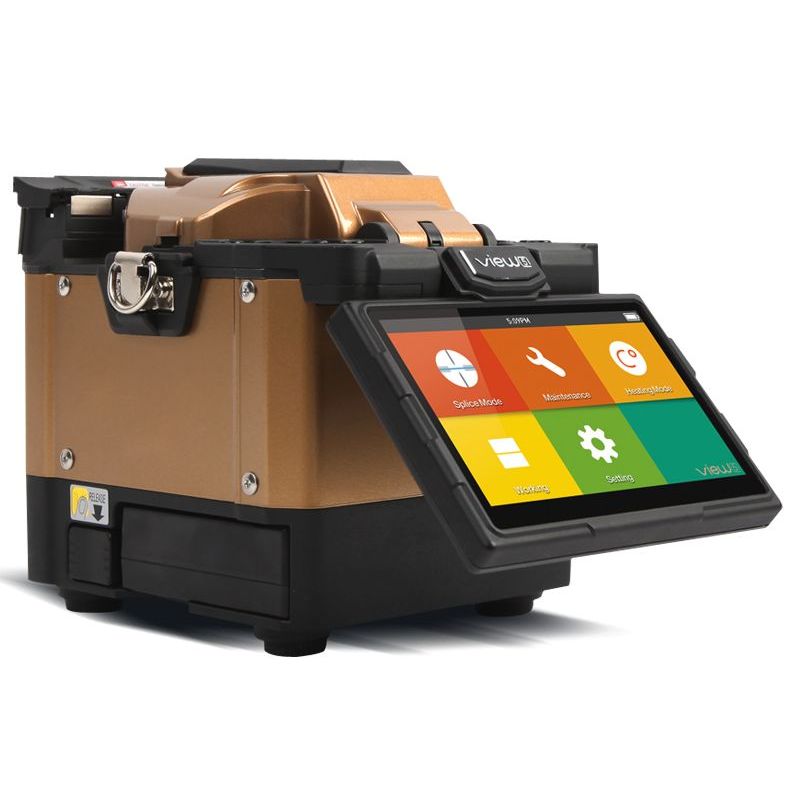

INNO Instrument View5 - Core alignment splicer

View 5, Fusion of core alignment with the highest fiber image increase rate in the world, is the most reliable fusion splicer on the market. The high resolution 5-inch color LCD touch screen with an intuitive interface that offers large and clear fiber images to users.

€5,390.01
Tax included
Reference inno-view5
Brand Inno Instrument
Quantity
Out-of-Stock

Free shipping

View 5, a core-alignment splicer with the world’s highest fiber image magnification rate, is the most dependable fusion splicer in the market.

View 5’s 5 inch high-resolution color LCD touch screen with user-friendly intuitive GUI (Graphic User Interface) offers large and clear fiber images to user

Features

  • Core Alignment Splicing Method with DACAS (Digital Analysis Core Alignment System)
  • The Highest Magnification and Resolution
  • 5” Color LCD Touch Screen
  • Double Tapping (Zoom in & out)
  • Detachable SOC Holder and Heating Oven
  • 3 Bright LEDs for Dark Environment
  • Ceramic Clamp for Improved Durability

Video

Specifications

Model View 5
Dimension 147H x 130W x155D mm
Weight 2.21KG (wiith battery) / 1.85KG (withoutbattery)
Number of Fiber Single
Applicable Fibers SM(ITU-TG.652&G.657) / MM(ITU-TG.651) / DS(ITU-T G.653) / NZDS(ITU-Tg.655)
Compatible FIber/ Cable 0.25 ~ 3.0mm / Indoor Cable
Cleaved Lenght Diameter :0.125 ~ 1mm / Cleave Lenght : 8~ 16mm
Cladding Diameter 80~ 150μm
Splicing Mode Preset 17 modes / Max 128 modes
Heating Mode Preset 6 modes / Max 32 modes
Typical Splice Loss SM :0.02dB / MM: 0.01dB / DS: 0.04dB /NZDS: 0.04dB / G.657: 0.02dB(ITU-T Standard)
Return Loss >>60dB
Lighting 3 White LEDs
Splicing Time Auto mode : 9 sec / Quick mode : 7 sec
Estimated SpliceLoss Available
Protection Sleeve Lenght 20~ 60mm
Heating Time FP-03 typical heating time : 30 sec
Results Storage The last 2000 results
Tension Test 1.96 ~ 2.25N
Operation Condition Operation Altitude: 0~5000m above sealevel, 0~95% relative humidity,-10~50°C, Max Wind 15m/s
Storage Condition 0~95%relative humidity, -40~80°C
Display 90° bi-directional view, 5.0"Color High Resolution Display
Fiber View & Magnification X, Y, XY, X/Y : 520 Magnification
Power Supply AC Input 100-240V, DC input 9-14V
No.of Splice / Heating with Battery 4200mAh Battery Capacity, Typical 170times (Splice+Heat)
Operating Methods Button / Touch screen
Automatic Calibration Automatic arc calibration by air pressureand temperature
Electrode Life 3500 arcs, can be extended by using anelectrode grinder
Terminal USB2.0 / MINI USB
