SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 82SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 2577 AND id_lang = 1 FHP12-A Mini Optical Power Meter PON/GPON
  • -15%

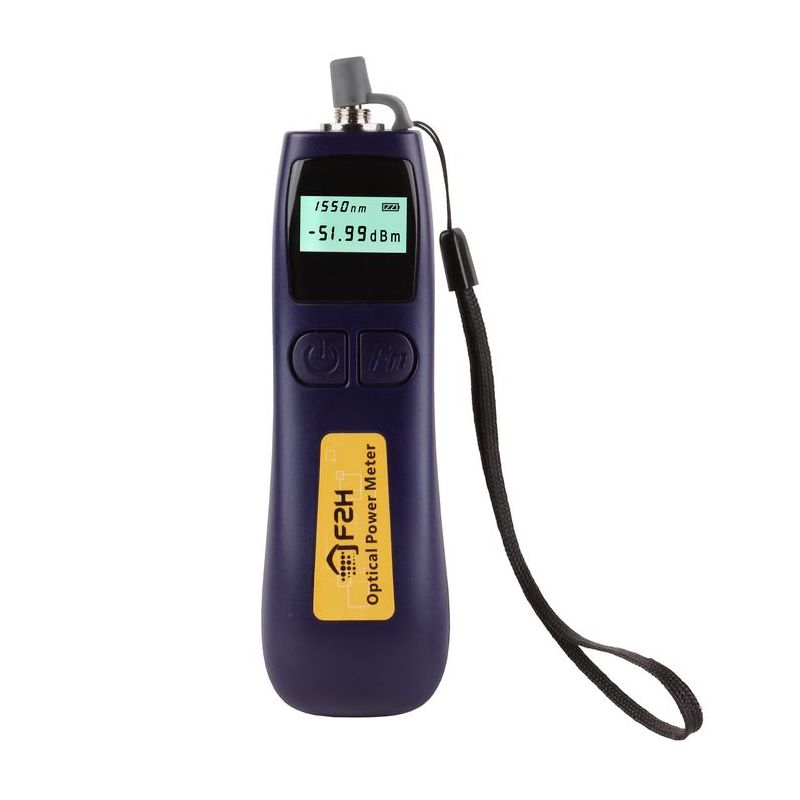

FHP12-A Mini Optical Power Meter PON / GPON
search
  • FHP12-A Mini Optical Power Meter PON / GPON
  • FHP12-A Mini Optical Power Meter PON / GPON
  • FHP12-A Mini Optical Power Meter PON / GPON
  • FHP12-A Mini Optical Power Meter PON / GPON

FHP12-A Mini Optical Power Meter PON/GPON

Optical power meter for wavelengths of 850/1300/1310/1490/1550/1625nm.

€101.82 €119.79 Save 15%
Tax included
Reference fhp12-a
Brand HDTeck
Quantity
Available Now

Free shipping
FHP12-A Mini Optical Power Meter PON / GPON

FHP12-A Mini Optical Power Meter PON/GPON

€101.82 €119.79 Save 15%

FHP12 Series Mini Optical Power Meter has compact structure and stable performance and ensures high measuring precision of 850nm, 1300nnm, 1310nm, 1490nm, 1550nm and 1625nm wavelengths. Used together with Optical Laser Source, it could accurately measure the loss of bier, cable and other passive optical devices.

Main Features

  • Imported sensor head
  • 2.5mm universal interface (support FC/SC/ST connectors)
  • Low power consumption, continuous work more than 100 hours
  • Linear optical power and logarithmic power display
  • Automatic measuring range adjust and power remains indication
  • Relative value measurement
  • Compact and portable design

Specs

Type FHP12-A FHP12-B
Display Range +10~-70dBm @1550nm +26~-50dBm @1550nm
Resolution 0.01dB
Calibrated Wavelength 850/1300/1310/1490/1550/1625
Sensor Type InGaAs
Accuracy 0.35dB±1nW 0.35dB±10nW
Working Wavelength 800~1700nm
Continuous Working Hours about 230 hours (standby time: about 3,500 hours)
Power Source 2*AAA dry batteries
Working Temp. -10 to +50℃; <90%RH
Storage Temp. -20 to +70℃; <90%RH
Dimension L120nmxW33nmxH30mm / about 70g
Standard Accessories:
2*AAA batteries, carrying bag, user manual
