  • Kit Fiber Optic Fusion Arc Arc Televes

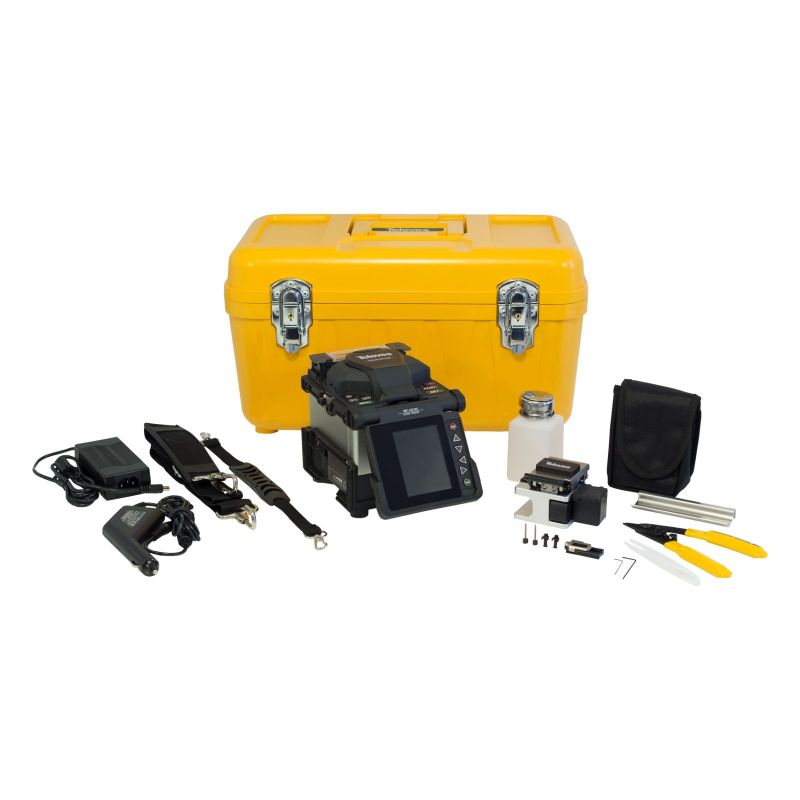

Kit Fiber Optic Fusion Arc Arc Televes

Professional fusion splicer equipped with six alignment engines to work on the different axes, capable of performing an optical fibre fusion in 8 seconds. Furthermore, fusion is automatically started with the cover closure.

This product is replaced by the Kit F.O Arc Fuser + Stripper + Cutter + Connector Fusion Accessory Televes

€2,904.00
Tax included
Reference televes-232103
Brand Televes
Quantity
Available in 24/48h

Free shipping

Kit Fiber Optic Fusion Arc Arc Televes

€2,904.00

Professional fusion splicer equipped with six alignment engines to work on the different axes, capable of performing an optical fibre fusion in 8 seconds. Furthermore, fusion is automatically started with the cover closure. It also allows the fusion of pre-configured connectors, thus connectorizing the fibre.
Design optimized to work in any environment, even in the most stringent conditions. Besides, it prevents dust form entering the fusion area, thus ensuring an unsurpassable quality of the overall procedure.
The menu-based user interface is easy and intuitive.
The highly-resistant ABS case containing the kit has a second function besides transportation: thanks to its grooved design it can be used as a working table, making it possible to work virtually anywhere.

The following accessories are also included:

  • Fibre cleaver with removable pick-up feature (cutting blade specified for 16,000 cuts)
  • Precision fibre stripper (pre-set for 250 μm and 900 μm)
  • Isopropyl alcohol tank with dispenser
  • Plastic clamp
  • Mount for fibre protection cooling
  • Set of spare electrodes (2 items)
  • Set of spare pushers (2 items)
  • Interchangeable head for pre-configured connector fusion
  • Case and fusion splicer straps
  • Regular and lighter-type chargers with USB connector allowing the recharge of other devices (5 V, 2 A)
  • User-removable lithium battery

Highlights

  • Light-weight, reduced-dimensions professional fusion splicer
  • The bumper protector made of high-density rubber provides a high impact resistance
  • Endures high wind speeds, water resistance and other stringent environmental conditions
  • Protection against dust in the fusion area
  • Easy and intuitive user interface
  • Fusion quality verification by means of a traction procedure followed by the calculation of optical losses
  • The cutting angles are measured to detect a poorly set cleaver
  • Detects errors in the fibre - usually due to dirt - prior to the fusion taking place

Features

  • Core-based fibre alignment
  • 360º protection: dust,water, and shock proof.
  • Discharge self-calibration based on altitude and atmospheric pressure
  • Calibration option based on the type of the fibre being used
  • Automatic oven closure upon tube insertion
  • Each of the six high-precision engines is equipped with the stepper motor operation mode, with a permanent magnet and gearbox for maximum precision
  • Temperature sensor activated cooling system
  • Equipment automatic self-check option
  • Configurable ECO mode (auto shut down and stand-by)
  • Datalog for fusion data and image export
  • Up to 250 fusions/bakings with a single battery charge; allows operation in charging mode (connected to the charger)
  • 3.7" LCD screen with automatic image rotation based on position

Specifications

Reference 232103
General
Average loss per splice dB

0.02 @ Single Mode fiber (SM)
0.01 @ Multi Mode fiber (MM)

0.04 @ fiber DS and NZDS
Average time per splice s 8
Average time for the heat-shrink sleeve heating s 28
Fusion programmes 11 (SM, MM, NZ, DS and BIF) pre-configurated 89 free
Oven programmes 10 preconfigurated 10 free
Fibre alignment  By core in three axes X-Y-Z
Screen 3.7” colour LCD, 640x480
Lens magnification Axe X + Axe Y = 155
Axe X or Axe Y = 310
Languages Spanish, English
Electrodes life uses 4000 (aprox) 8000 (with spare)
Sensors
Internals Internal temperature, atmospheric pressure, elevation and oven temperature
Interfaces
Mini USB Updates and logs download
Powering
Mains voltage Vac 100 - 240
Mains frequency Hz 50 / 60
Battery Li-ION (7.4V and 3000mAh)
Charging battery duration cycle 250 (aprox)
Operating range
Operating temperature

ºC /

ºF

-10 ... 50 /

14 ... 122
Relative humidity % < 95%
Altitude m 0 - 5000
