  • Fiber Optic Kit Hand-held fuser Arc Voltaico Televes

Fiber Optic Kit Hand-held fuser Arc Voltaico Televes

Hand-held fusion splicer capable of performing an optical fibre electric-arc fusion in 7 seconds. With an easy and intuitive user interface, it is managed with only 3 buttons. Furthermore, fusion is automatically started with the cover closure. Very easy to carry thanks to its light weight and reduced dimensions. Televes 232130

€1,403.60
Tax included
Reference televes-232130
Brand Televes
Quantity
Out-of-Stock

Free shipping

Hand-held fusion splicer capable of performing an optical fibre electric-arc fusion in 7 seconds. With an easy and intuitive user interface, it is managed with only 3 buttons. Furthermore, fusion is automatically started with the cover closure.
Very easy to carry thanks to its light weight and reduced dimensions.

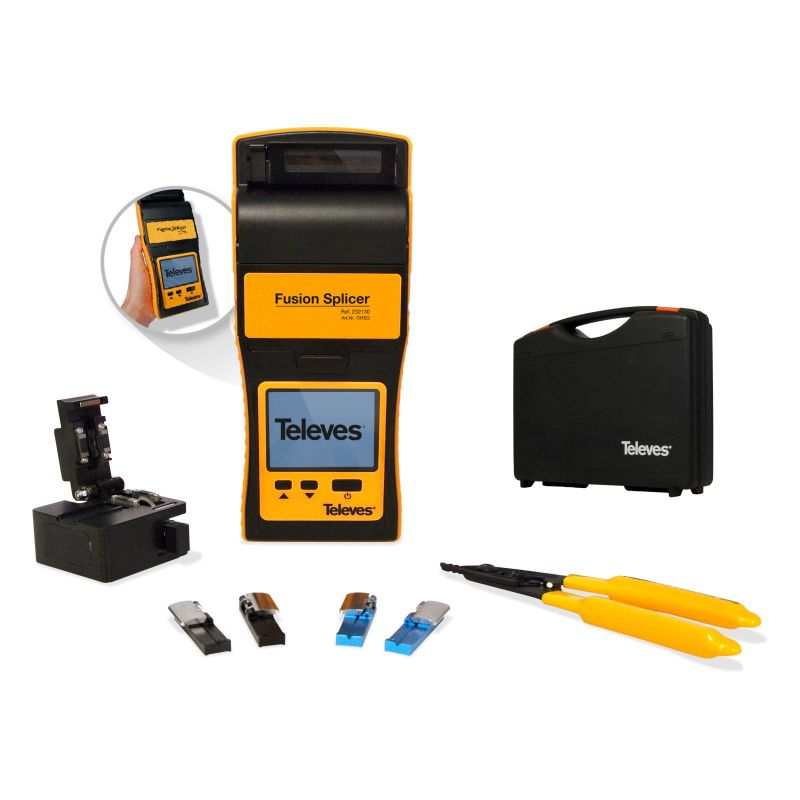

The kit also provides a carrying case with the following accessories:

  • Fibre cleaver with head insertion (cutting blade specified for 16.000 cuts)
  • Fibre stripper (pre-set for 250 μm and 900 μm)
  • Head set for 250 μm-fibre (black) and 900 μm-fibre (blue)
  • Charger

Highlights

  • Compact and light-weight: hand-held format
  • Easy and intuitive user interface
  • Fusion quality verification by means of a traction procedure followed by the calculation of optical losses
  • The cutting angles are measured to detect a poorly set cleaver
  • Detects errors in the fibre - usually due to dirt - prior to the fusion taking place

Features

  • Cladding-based fibre alignment
  • Calibration based on the insertion of one fibre
  • Automatic electrode cleaning
  • Datalog for fusion data export
  • Up to 60 fusions/bakings with a single battery charge; allows operation in charging mode (connected to the charger)

Specifications

Reference 232130
General
Average loss per splice dB

0,03 @ Single Mode fiber
0,01 @ Multi Mode fiber
Average time per splice s 7
Average time for the heat-shrink sleeve heating s 60 @ cannula 45mm
90 @ cannula 60mm
Fusion programmes 2 pre-configurated programmes (SM and MM)
Fibre alignment By cladding:
Axial (automatic)
Radial (fixed, over V-Groove)
Screen 2,8” colour LCD, 320x240p
Lens magnification 140x
Languages Spanish, English, German, French, Italian, Polish, Russian, Dutch, Swedish, Czech, Turkish
Interfaces
Mini USB Updates
External SD (not included) Save and export fusion data
Powering
Mains voltage Vac 100 - 240
Mains frequency Hz 50 / 60
Battery Li-ION (7.4V and 3000mAh)
Charging battery duration cycle 250 (aprox)
Operating range
Operating temperature

ºC

 0 ... 45
Storage temperature

ºC

 -20 ... 60
Relative humidity % < 95%
