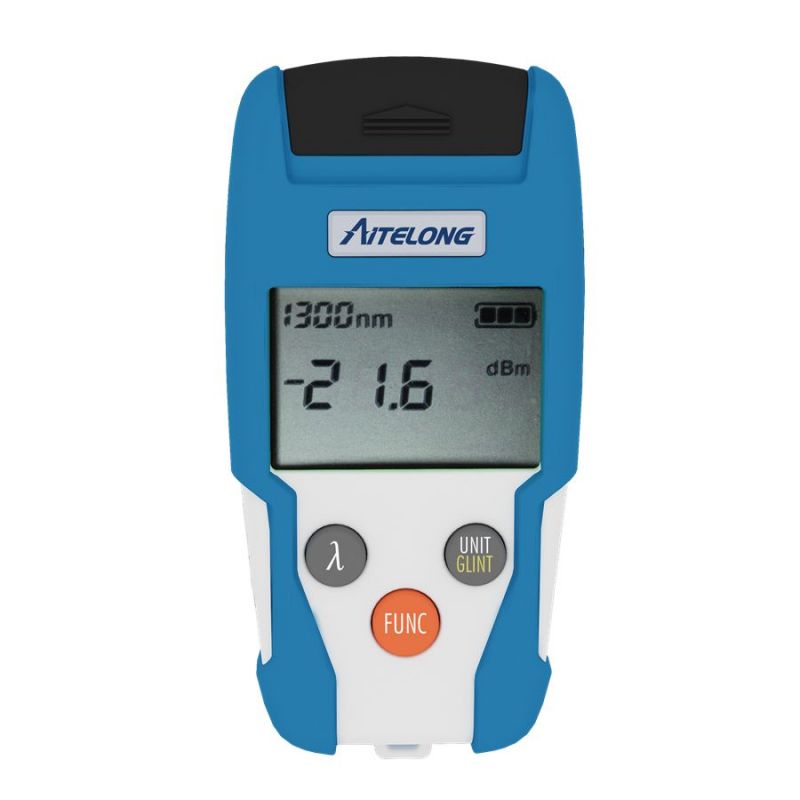

  • Aitelong SAT-4EX Optical Power Meter

Aitelong SAT-4EX Optical Meter

SAT-4EX Optical Power Meter. LED Light. Wide measurement range, High resolution. SM or MM applications. 2.5mm universal connector. 850/1300/1310/1490/1550/1625nm. Auto power off (can be cancelled). One-year warranty and three-year recommended calibration interval.

€104.00
Tax included
Reference aitelong-sat-4ex
Brand Aitelong
Quantity
Available in 24/48h

Free shipping

Aitelong SAT-4EX Optical Meter

€104.00

SAT-4EX Optical Power Meter.

Features

  • LED Light
  • Wide measurement range, High resolution
  • SM or MM applications
  • 2.5mm universal connector
  • 850/1300/1310/1490/1550/1625nm
  • Auto power off (can be cancelled)
  • One-year warranty and three-year recommended calibration interval.

Specifications

Model

SAT-4EXT

Display Range

1310/1490/1550/1625:-70--+10 dBm

850/1300: -60--+6 dBm

Accuracy*

± 0.2dB

Calibrated Wavelengths

850nm/1300nm/1310nm/1490nm/1550/nm/1625nm

Display Resolving Power

0.01dB

Linearity

± 0.2 dB

OPM Connector

2.5mm universal

VFL Connector

2.5mm universal

VFL Output(Optional)

1mW or 10mW, CW and Glint

LED Light

SOS code output

Automatic Power Off

No operation in 10 minutes (can be cancelled),

 Low battery energy.

Battery Charge

Yes

Battery Life

Above 60 hours(OPM)

Size

105mm X 52mm X24mm

Weight

About 100g

Storage Temperature

-20---+60 ℃

Operating Temperature

-10---+50 ℃

Humidity

<90%RH

Elevation

0---5000m

*At 20-3ºC, CW, with FC connector, -10dBm



4EXT=OPM(-70---+10 dBm)+VFL(1nw)/No VFL

4EXC=OPM(-50---+26 dBm)+VFL(1nw)/No VFL
