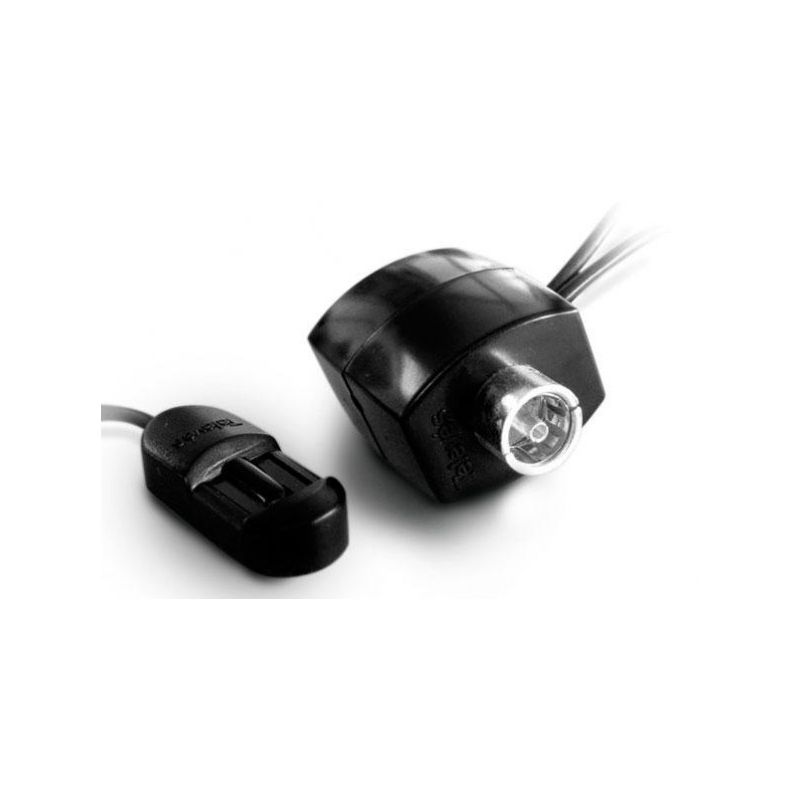

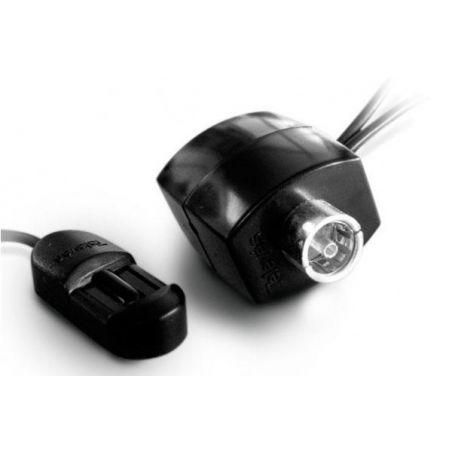

Supplementary emitter for the coaxial cable infrared extension kit (TX + RX) Televes
Add a transmitter to the kit that allows the transmission of infrared signals from the remote controls over the coaxial cable network, so that we can control any receiver, TV, etc. from a different room.
€54.00
Tax included
Reference
televes-7606
Brand
Televes
Supplementary emitter for the coaxial cable infrared extension kit (TX + RX) Televes
€54.00
Remote control extension using coaxial cable (14.7 MHz).
The infrared signals of the remote control are transmitted using the coaxial cable related to the network of the television till the other end, where the coaxial receiver will extract the signal and transmit it towards the IR sensor of the desired equipment.
Features
- Without interferences thanks to the shielding of the coaxial cable.
- Long range. Not limited by any interferences or obstacles.
Specifications
| Reference | 7606 | ||
| RX | TX | ||
| IR | |||
| Output frequency | KHz | 36 (RC5) | - |
| RF | |||
| Input minimum level | dBμV | 50 | |
| Modulation frequency | MHz | - | 14,7 |
| Output level | dBμV | - | 100 |
| Harmonics levels | dBc | - | -45 |
| Insertion losses | dB | 0,5 @ 5-862MHz | |
| General | |||
| Power supply | Vdc | 12 | |
| Max consumption | mA | 12 | |
| Power supply in coaxial output | mA | 30 | - |
Add a transmitter to the kit that allows the transmission of infrared signals from the remote controls over the coaxial cable network, so that we can control any receiver, TV, etc. from a different room.
