Remote control infrared (IR) signal extender system that allows to remotely control devices in rooms other than the user's; for example: a satellite receiver, a video player, a stereo, etc.
The transmission band can be configured in eight switch-selectable channels.

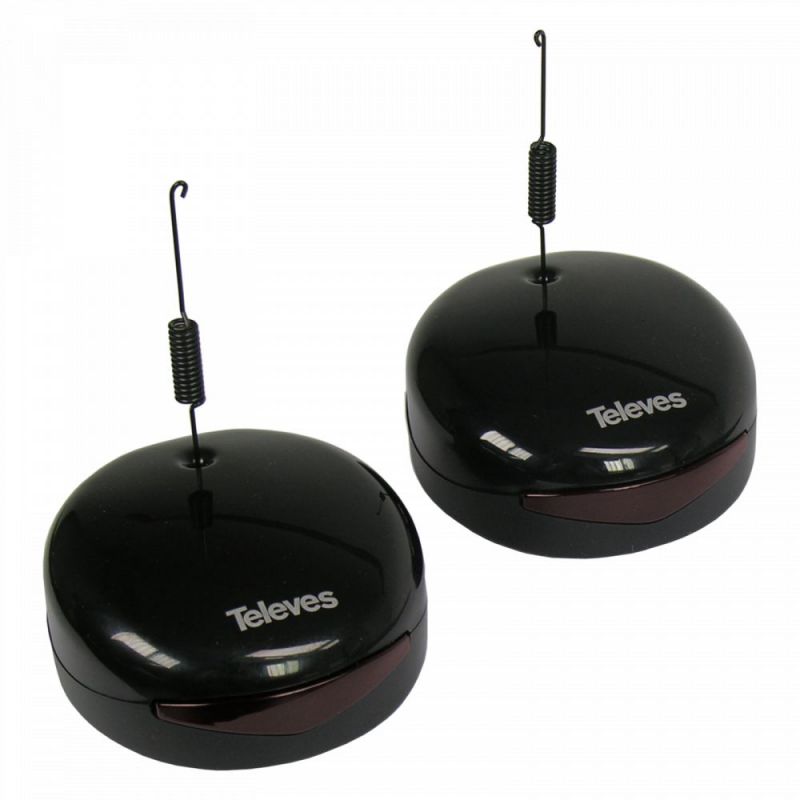

It consists of a transmitter and a receiver: the commands sent by the remote control travel via radio (air) to the controlled element, allowing to switch channels on the satellite receiver from another TV set, for example.

• Universal system (infrared 38/56 KHz)
• Far-reaching
• Compact and pleasing design, ideal for any room
• Low power consumption

Features

• Up to 8 similar equipment can coexist in the same area of influence
• Signal transmitted between the transmitter and the receiver is coded to avoid interference with other devices

Specifications

Power supply AC	Vac	100-240@50/60Hz
Power supply DC	Vdc	5
Consumption TX/RX	mA	TX -40 / RX -50
Operating frequency	MHz	433.9 (±100KHz)
Modulation		ASK
Coding		8 channels, selectable by switch
IR carrier	KHz	30-60
