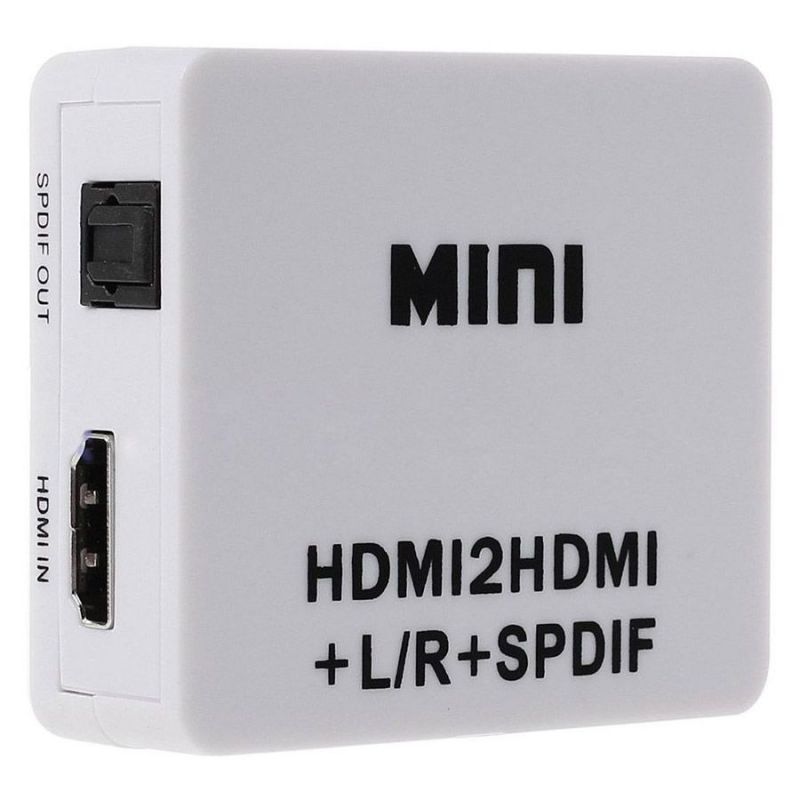

This mini HDMI to HDMI + audio repeater (extractor) repeats the digital audio signal from the HDMI input and converts it into analog stereo 2-channel or 5.1-channel audio.

Features

• An HDMI input converted to an HDMI + Audio output (stereo 3.5mm).
• Support audio output: stereo + 3.5 mm analog audio output.
• HDMI is compatible with HDMI 1.3.
• Low power, without power adapter.
• Without loss of quality.
• Installs in minutes
• LED indication: when the source or sink is working, the relative LED is light.
• The high bandwidth capacity supports up to 1920x1080 @ 60Hz.
• It is not necessary to install drivers, portable, flexible, plug and play.
• White color
• Plastic shell

Specifications

• HDMI resolution: 1080 p / 1080i / 720 p / 576 p / 576i / 480 p / 480i
• Support color video format: 24bit / deep color 30bit, 36bit
• Audio output: l / R + SPDIF
• Max bandwidth: 225 MHz
• Max baud rate: 6.75 Gbps
• TMDS input / output signal: 0.5 ~ 1.5 volts P-P (TTL)
• Input / Output DDC signal: P-P 5 volts (TTL)
• Frequency band: 2.97Gbps.
• Current adapter format:
• Input: AC (50Hz, 60Hz) 100 v-240 V;
• Output: DC 5 V / 1
• Input interface: 1 x HDMI female
• Output interface: 1 x HDMI female, 1 x 3.5mm headphones
• Compatible with FullHD: 1920 x 1080 at 60 Hz
• Stereo analog audio output
• Plug and play
• Weight: 61 g
• Dimensions: 6.0 cm x 5.4 cm x 2.0 cm

Applications

• To use an HDMI cable to connect the HD Source with the HDMI input port.
• To connect the HDMI output port of the converter with the HD screen.
• To use an audio cable to connect the 3.5mm audio port of the converter to the audio equipment.
• To use the optical cable to connect the stereo audio port with the audio equipment.
• To connect the converter with the power adapter.

Package content

• 1 x HDMI 2 HDMI + Audio
• 1 Power adapter cable
• 1 user manual
