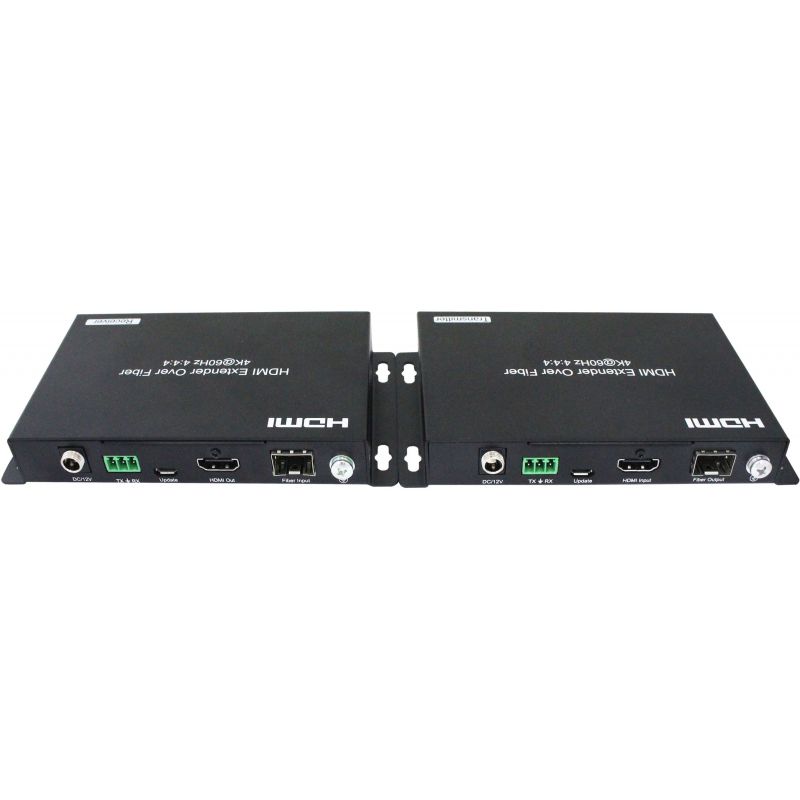

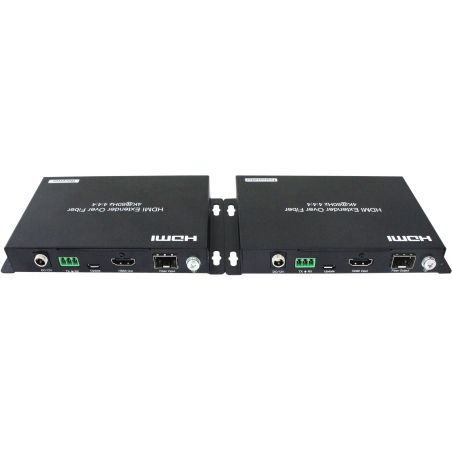

Extender HDMI 2.0 Fiber optic SFP 4K 60hz HDR 60km
Transmit distance up to 60KM over Single mode, (Multi mode upto 300m) fiber module Single /Duplex fiber (Optional) cable. Support resolution upto 4kx2k@60hz, YUV4:4:4 HDR. Support bandwidth upto 18Gbps. Without latency. Support HDCP2.2 input, HDCP2.2 output. Support HDCP1.4 input, HDCP1.4 output. Support RS232 Bi-direction pass through.
€491.26
Tax included
Reference
FX-EXT-HDMI-FIB-4k
Brand
Fx-HdmiTech
Extender HDMI 2.0 Fiber optic SFP 4K 60hz HDR 60km
€491.26
Features
- Transmit distance up to 60KM over Single mode, (Multi mode upto 300m) fiber module Single /Duplex fiber (Optional) cable.
- Support resolution upto 4kx2k@60hz, YUV4:4:4 HDR.
- Support bandwidth upto 18Gbps.
- Without latency.
- Support HDCP2.2 input, HDCP2.2 output.
- Support HDCP1.4 input, HDCP1.4 output.
- Support RS232 Bi-direction pass through.
- With Automatic EDID for rapid integration of source and display.
- Support LPCM 7.1, Dolby®True HD, DTS-HD Master Audio™ .
- Locking power supplies.
- Surface-mountable.
Specifications
| Operating Temperature Range | -5 to +40°C(+23 to +95°F) |
| Operating Humidity Range | 5 to 90%RH (No Condensation) |
| Video Input(Transmitter) | 1xHDMI Type A, 19-pin, female |
| Video Output(Receiver) | 1xHDMI Type A, 19-pin, female |
| Link(Transmitter/ Receiver) | 1m~60Km single Multi mode 300m single Duplex fiber optical cable |
| Module type required ① | SFP Type, Single / Multi mode ,Single / Duplex fiber (optional) |
| Video Format | 4K@60Hz YUV 4:4:4, 4K@60Hz, 1080P, 720P, 576P, 480P/ VESA Resolution |
| Audio Format | Support LPCM 7.1, Dolby®True HD, DTS-HD Master AudioTM . |
| HDCP | HDCP 1.4 in, HDCP 1.4 out HDCP 2.2 in, HDCP 2.2 out |
| Power consumption | Transmitter: 3watts(Maximum) Receive: 3watts(Maximum) |
| Dimension (L×W×H) | Transmitter: 96*100*21mm Receiver: 96*100*21mm |
| Net Weight | 475g (Pair) |
Note: Specifications are subject to change without notice. Mass and dimensions are approximate.
① 4Kx2K requires 10G SFP Transceiver fiber module.
Package content
- Main Unit. HDMI Extender Over Fiber
- DC12V 1A Power Supply X2
- Operating Instructions
