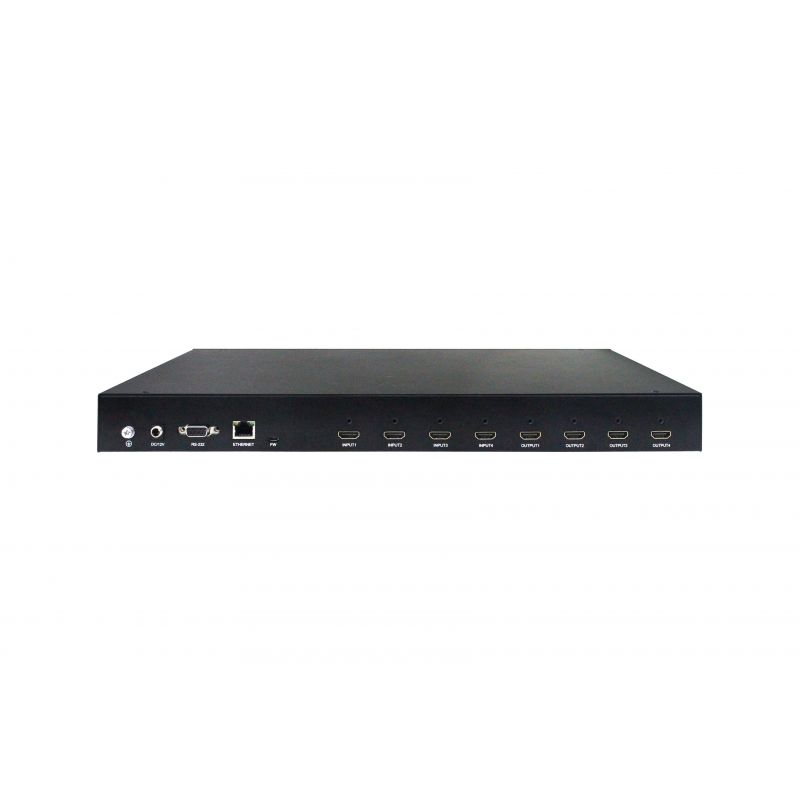

HDMI Matrix 4x4 & Video Wall Controller 4k HDMI

Any one of the 4 sources to any one of the 4 displays. Seamless switching ensures no switching delay and pictures loss during transitions, the switching speed is less than 40 millisecond. Support VideoWall mode and output image mirror function. Any one of the four outputs can be turned off independently. Support PCM 2CH audio.

€1,149.50
Tax included
Reference FX-VW4x4
Brand Fx-HdmiTech
Quantity
Available Now

Free shipping

HDMI Matrix 4x4 & Video Wall Controller 4k HDMI

€1,149.50

Features

  • Any one of the 4 sources to any one of the 4 displays.
  • Seamless switching ensures no switching delay and pictures loss during transitions, the switching speed is less than 40 millisecond.
  • Support video wall mode and output image mirror function
  • Any one of the four outputs can be turned off independently.
  • Support PCM 2CH audio.
  • Support EDID management
  • Compliant HDCP 2.2 and HDCP1.4
  • Support high definition resolutions, including: 4K30HZ,1080p@60Hz@36 b/pixels, and other standard video formats.
  • Support output downscale to 1080P/720P/2560*1440/1920*1200/1360*768
  • With panel button, Remote Control, RS232 Control, TCP/IP Control to select the source.And support for third-party platform control.
  • 1U rack design, easy installment.
  • DC 12V 2A power supply.
  • Unit size:L438 * W205 * H44mm

Wiring diagram

Specifications

Operating Temperature Range 0 to +40ºC (32 to +104ºF)
Operating Humidity Range 5 to 90 % RH (no condensation)
Input Video Signal 0.5-1.0 volts p-p
Input DDC Signal 5 volts p-p (TTL)
Video Format Supported DTV/HDTV: 1080P/1080i/720P/ 576P/480P/4K
Audio Format Supported LPCM 2.0
Input ports 4xHDMI
Output ports 4xHDMI
Matrix mode 4x4 Seamless switching
Video wall mode Multiple video wall modes
Power consumption 20watts(Maximum)
Dimension (mm) L 438 X W 205 X H 44 mm
Weight 2710g

Packing contents

  • 4x4 Matrix x1pcs
  • Remote Controller x1pcs
  • CD ROM (user manual) x1pcs
  • Power Adapter 12V2A x1pcs
  • Mounting Ears x1pair
Fx-HdmiTech

user manual

Manual Video Wall Matrix FullHD 4x4

Download (5.13M)
