  • Matrix HDMI 2.0 8x8 with 8 SPDIF Manageable by IP

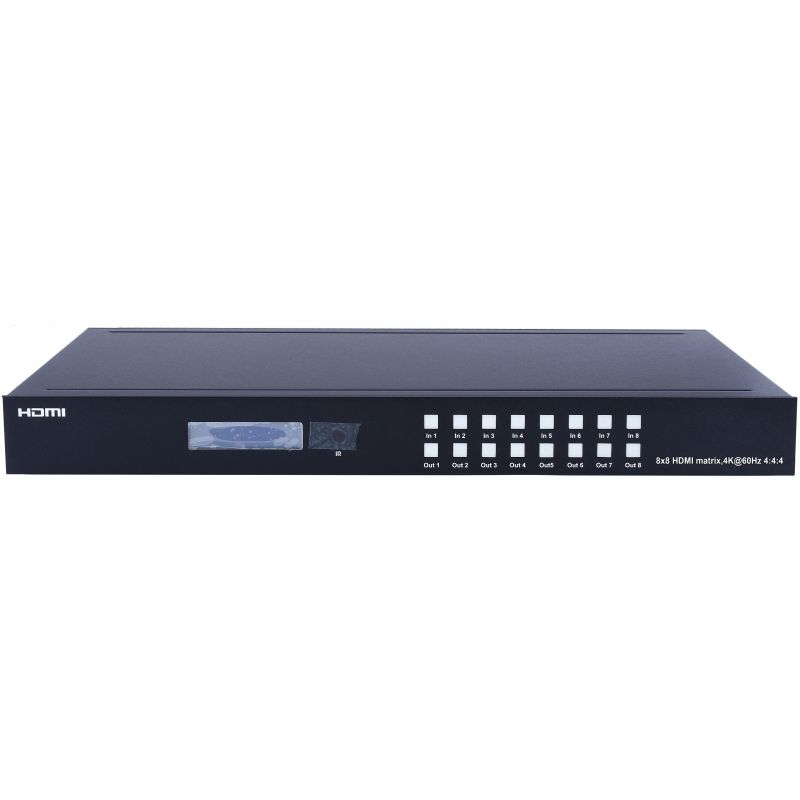

Matrix HDMI 2.0 8x8 with 8 SPDIF Manageable by IP

HDMI 2.0 version (Support 4K@60Hz YUV4:4:4). Support 3D. Bandwidth upto 18Gbps. HDCP2.2 input ,HDCP2.2 output. HDCP1.4 input, HDCP1.4 output. Support HDR10. 8xHDMI Input, 8xHDMI output with 8xSPDIF Audio.

€1,102.31
Tax included
Reference FX-MX8x8
Brand Fx-HdmiTech
Quantity
Available Now

Free shipping

Matrix HDMI 2.0 8x8 with 8 SPDIF Manageable by IP

€1,102.31

Features

  • HDMI 2.0 version (Support 4K@60Hz YUV4:4:4)
  • Support 3D
  • Bandwidth upto 18Gbps
  • HDCP2.2 input ,HDCP2.2 output
  • HDCP1.4 input, HDCP1.4 output
  • Support HDR10
  • 8xHDMI Input, 8xHDMI output with 8xSPDIF Audio
  • Any one of the 8 Ultra HD sources to any one of the 8 Ultra HD displays
  • Support Panel Button, Local IR, RS232 Control with command, IP Control, Web GUI
  • Control
  • Support Dolby True HD and DTS-HD master audio
  • 1U rack design, easy installment
  • Unit size: L440XW220XH44.5mm

Specifications

  • Bandwidth: 18 Gbps
  • Resolution: 480p@60hz,576P@50hz,720P@60hz, 1080P@24hz,1080P@50hz,1080P@60hz,4K@24hz,4K@30hz, 4K@60hz UV4:2:0, 4K@ 60hz YUV4:4:4
  • Video Input Connectors: 8xHDMI Type A, 19-pin, female
  • Video Output Connectors. 8xHDMI Type A, 19-pin, female
  • RS-232 serial port: DB9, female
  • Ethernet port (IP control). RJ45, female
  • IR Ext port: 1x3.5mm stereo jack
  • Rack-Mountable: Rack ears included
  • Dimensions(WxHxD): L440XW220XH44.5mm
  • Net Weight. 2.8kg
  • Operating Temperature: -4°F to 140°F (-20°C to 60°C)
  • Storage Temperature: -40°F to 158°F (-40°C to 70°C)
  • Power consumption: 19W(Max)

Package Content

  • 1x HDMI Matrix
  • 1x 12V DC power supply
  • 1x Remote control
  • 1x IR Ext RX Cable
  • 1x mounting kit
  • 1x CD for control software & user manual
Fx-HdmiTech
