  • Conexer Simplus Single HDMI DVB-T Modulator

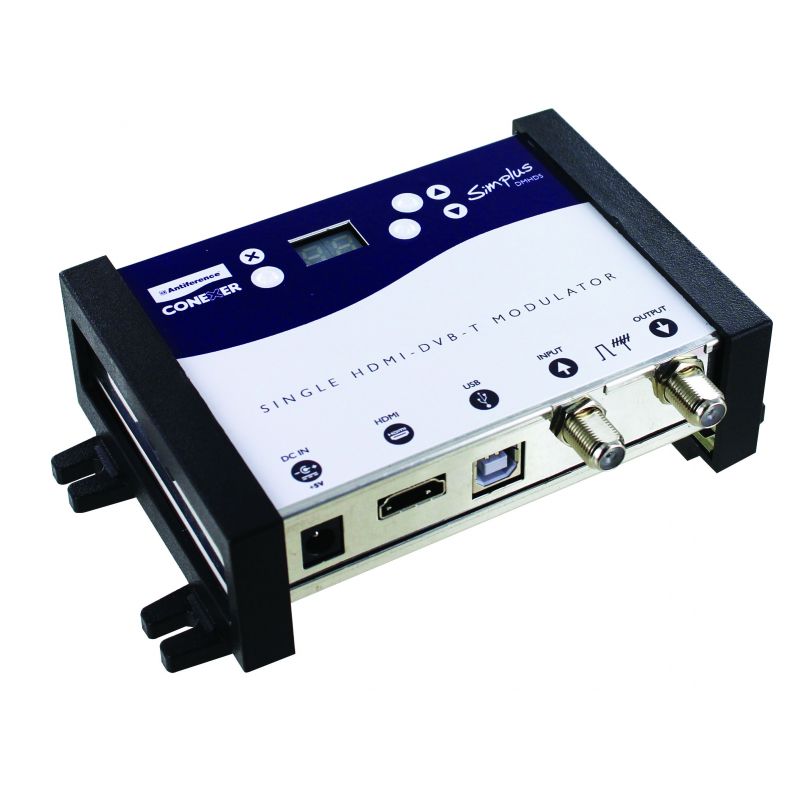

Conexer Simplus Single HDMI DVB-T Modulator

Simple to use single input HDMI to DVB-T modulator. This ‘state of the art’ product, is a HD encoder. The  video and audio input can be taken from HDMI.  After compressing the video into H264 and audio in AAC or MPEG1-L2 the output can be configured as DVB-T signal.Stand alone configuration is made easy through 3 tact switches and ergonomic menu’s.

€157.30
Tax included
Reference af-DMHDS
Quantity
Out-of-Stock

Free shipping

Simple to use single input HDMI to DVB-T modulator. This ‘state of the art’ product, is a HD encoder. The video and audio input can be taken from HDMI. After compressing the video into H264 and audio in AAC or MPEG1-L2 the output can be configured as DVB-T signal.Stand alone configuration is made easy through 3 tact switches and ergonomic menu’s.

Features

  • Simple HDMI to DVB-T modulator for distribution of HD content over a coax RF system
  • VHF/UHF output
  • Basic front panel controls for simple set up
  • Full control via Windows software for LCN, channel name etc
  • Useful for SKY HD/Q, CCTV, DVD player etc

Specifications

Video input Input HDMI
  Resolution modes 480p -576p -720p - 1080i - 1080P
  Compression H.264 – bitrate 5-15 Mb/s
Audio input Input HDMI
  Sample Rate HDMI (32kHz / 44.1 kHz / 48 kHz)
  Compression AAC-LC / MPEG1 - L2 – bitrate 128-384 Kb/s
DVB Processing Table insertion PAT, PMT, SDT, NIT
  Configuration Channel/network name, SID, LCN, TSID, ONID, NID, versions, audio, video PIDs.
DVB-T output Output frequency / level 170-230 MHz + 470-862 MHz / > 85 dBμV
  Constellation - FEC QPSK/16QAM/64QAM - 1/2, 2/3, 3/4, 5/6, 7/8
  Guard interval 1/4, 1/8, 1/16, 1/32
  Mode - MER 2K/8K - 31 dB
Power DC 2.1 mm connector +5V
  Consumption 10 Watts
Dimensions LxWxH 150x130x35mm
  Weight 0.45kg

Downloads

Data Sheet
