SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 29SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 8216 AND id_lang = 1 Ikusi MAW-300 HD DVB-T modulator HDMI input + CVBS
Ikusi MAW-300 HD DVB-T modulator HDMI input + CVBS
search
  • Ikusi MAW-300 HD DVB-T modulator HDMI input + CVBS

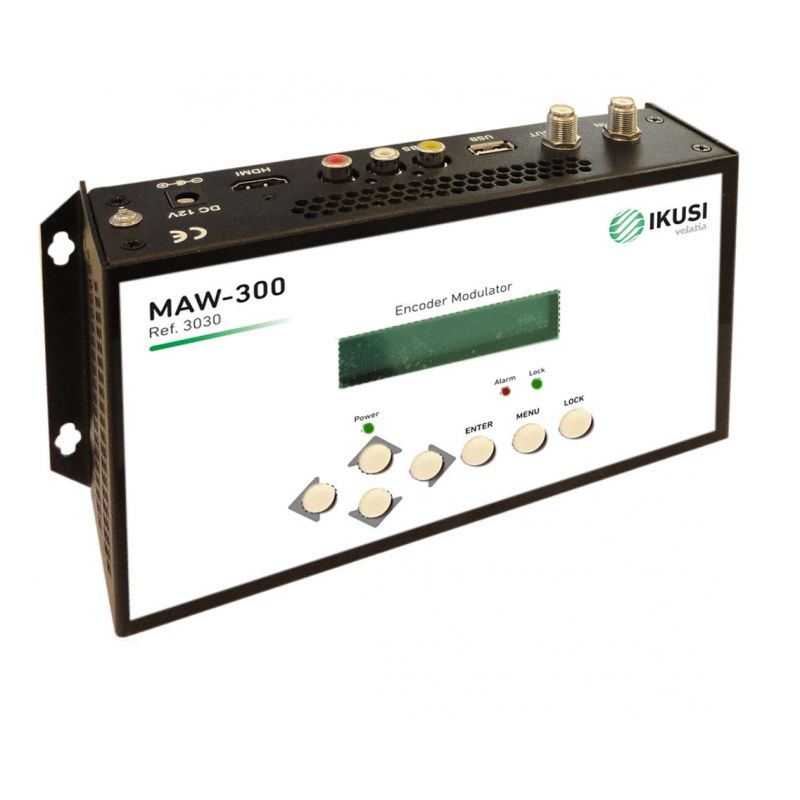

Ikusi MAW-300 HD DVB-T modulator HDMI input + CVBS

The MAW-300 modulator converts a video/audio or HDMI input signal into a digital DVB-T signal at the output. The equipment integrates an MPEG-4 AVC/H.264 encoder. The output signal can be mixed with other TV signals for home entertainment applications or security cameras. The DVB-T output signal is compatible with TVs or Set-top-box, DVB-T.

€506.99
Tax included
Reference ikusi-3030
Brand Ikusi
Quantity
Available in 24/48h

Free shipping
Ikusi MAW-300 HD DVB-T modulator HDMI input + CVBS

Ikusi MAW-300 HD DVB-T modulator HDMI input + CVBS

€506.99

The MAW-300 modulator converts a video/audio or HDMI input signal into a digital DVB-T signal at the output. The equipment integrates an MPEG-4 AVC/H.264 encoder. The output signal can be mixed with other TV signals for home entertainment applications or security cameras. The signal sources can be: Blu-ray player, satellite receiver, security cameras, DVD, etc. The DVB-T output signal is compatible with TVs or Set-top-box, DVB-T.

Features

  • Domestic modulator that allows to introduce audio and video signals in TV distributions.
  • The input source can be: Blu-ray player, Satellite receiver, CCTV camera, DVD, etc.
  • Audio/Video to DVB-T
  • A digital video and audio channel in HDMI format, HDMI connector.
  • An analog CVBS audio and video channel, RCA connectors.
  • MPEG4/H.264 encoding in HD.
  • Cascade installation.
  • Possibility of changing the LCN.
  • Local configuration with LCD screen.

Applications

  • Communities or residential Information in the "Community Channel".
  • Restaurants (Information of the day menu).
  • Hotels (Information about events).
  • Hospitals (Health guides information).
  • Public spaces (News, user information).
  • Shopping centers (News, business promotion, offers, etc.).
  • Boats (information on the logbook, activities, schedules).

Specifications

Model MAW-300
Ref.  3030
Video input  CVBS, HDMI
HDMI compression section
Video standards   PAL/NTSC/SECAM/B&W
Audio input   1 (mono and stereo)
Video encoding   H.264/MPEG4 MP@L 3.0/3.1/4.0
Video resolution

Input: 480i60, 576i50, 720p60, 1080i50, 1080i60, 1080p60

Output: 480p30, 576p25, 720p60, 1080p25, 1080p30
Aspect ratio   16:9 , 4:3
Bit rate video Mbps 1000 - 18000
Sampling frequency kHz 48
Audio bit rate kbps 64, 96, 128, 192, 256, 320
Modulation section
Standard   DVB-T
Bandwidth MHz 6, 7, 8
Constellation   QPSK, 16QAM, 64QAM
Guard interval   1/32, 1/16, 1/8, 1/4
Code rate   1/2, 2/3, 3/4, 5/6, 7/8
Transmission Mode   2K , 8K
MER dB ≥32
RF frequency range MHz 139 - 862
RF output level dBµV dBμV 94 - 104 (steps 0.1 dB)
General
Local interface    LCD + control keys
LCN insertion   Yes
Upgrade   USB
Feeding VDC 12
Operating temperature ºC 0-45
Dimensions mm 183 x 110 x 50
Weight kg 1
