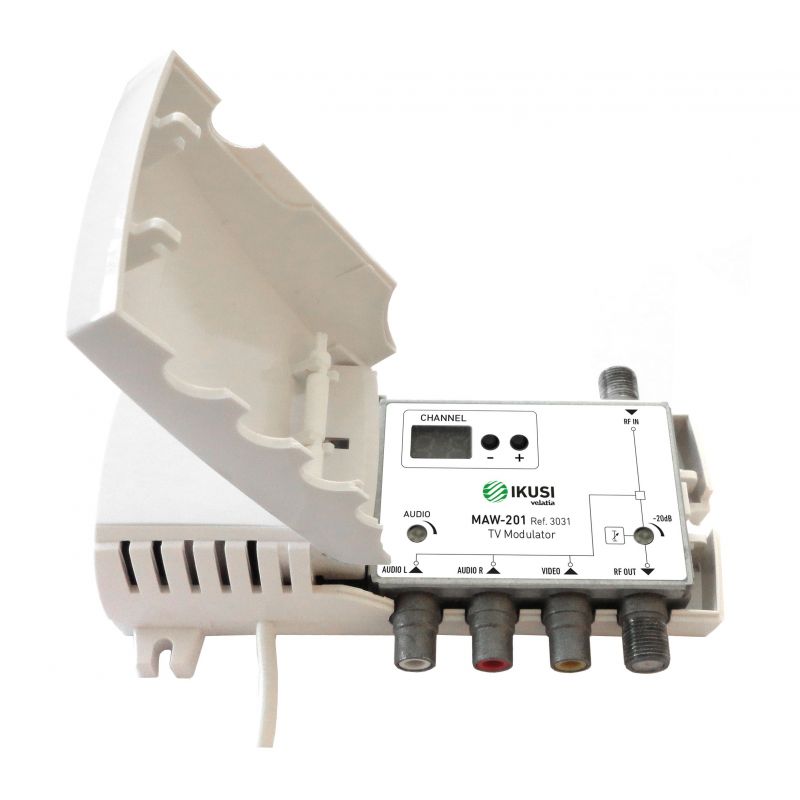

Ikusi MAW-201 Household analog modulator

Multistandard VHF/UHF TV modulator. The MAW-201 modulator generates double sideband, mono sound TV channels of the systems B/G/D/K/I/L/M/N/Australia.

€72.60
Tax included
Reference ikusi-3031
Brand Ikusi
Quantity
Available in 24/48h

Free shipping

Ikusi MAW-201 Household analog modulator

€72.60

IKUSI MAW-201. Multistandard VHF/UHF TV modulator. The MAW-201 modulator generates double sideband, mono sound TV channels of the systems B/G/D/K/I/L/M/N/Australia.

Features

  • The MAW-201 modulator generates double sideband, mono sound TV channels of the systems B/G/D/K/I/L/M/N/Australia.
  • Appropriate use with TV satellite receivers, VCR’s and video cameras.
  •  Possible connection of stereo sound sources. L and R signals are summed by the modulator itself.
  • Panel potentiometers for audio modulation and RF output level settings.
  • Indoor mounting.

Technical specifications

REF. 3031
Video input Frequency range Level / Impedance 20 Hz - 6 MHz
1 ±0.1 V / 75 Ω
Audio input Frequency range Level adjustment
Level / Impedance / Deviation *		 20 HZ - 15 Hz
0 ... 7 dB
2x 775 mV RMS / 10 kΩ / 50 kHz*
RF output Level (typical) / impedance Level adjustment
Frequency range (programmable)		 85 dBµV / 75 Ω
0 ... -20 dB
45 - 84 MHz ; 170 - 300 MHz ; 470 - 862 MHz
Selectable TV system B/G/D/K/H/I/L/M/N/AUSTRALIA
Number of outputs (1F) RF + (3 RCA) video/audio R-L
Number of inputs (1F) RF
Sound subcarrier frequency (programmable) 4.5 MHz ; 5.5 MHz ; 6.0 MHz ; 6.5 MHz
Fine tuning range of video carrier frequency (programm.) ± 2.25 MHz max. by 0.25 MHz step
Combining through loss 2.5 dB
Frequency range of RF combining 45 - 2150 MHz (TV+IF)
Video frequency response ± 1 dB
A/V ratio (programmable) 12/16 dB
Amplitude modulation depth, typical 81 %
Signal/noise ratio, weighted ≥ 55 dB
Supply voltage limit values, power consumption 198-250 V~  50/60 Hz  3 W
Operating temperature range -10 ºC ... +50 ºC
Dimensions/Weight (packed) 133 x 73 x 39 mm / 0.36 kg



Manual/Datasheet
