search

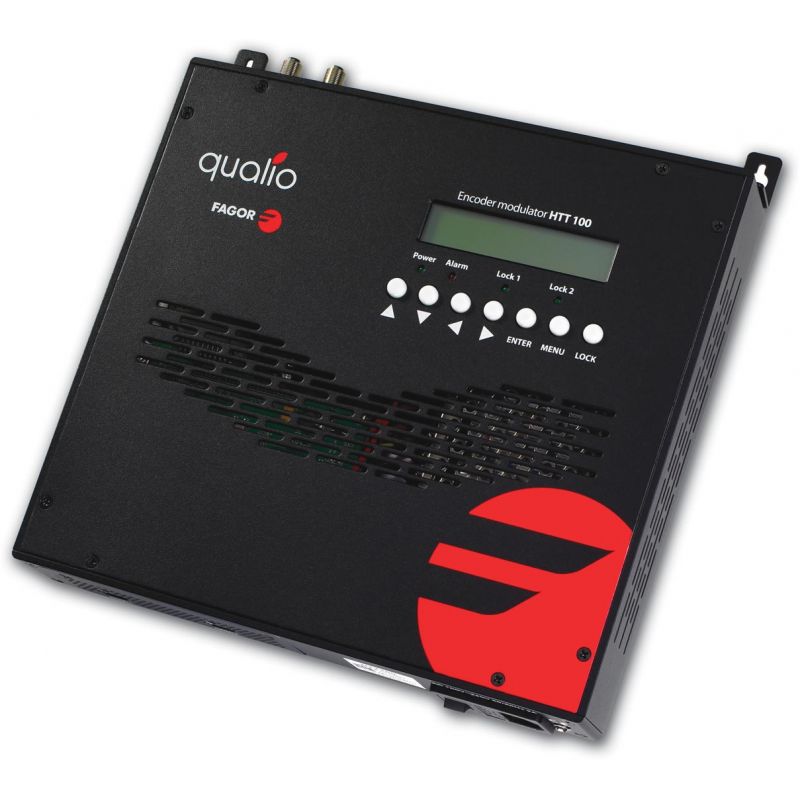

Fagor HTT 100 Qualio COFDM modulator with HDMI input + IP streaming

Fagor HTT 100 Qualio Digital Modulator that converts the HDMI signal into a DVB-T and IP Streaming channel. Processes HDMI signals from satellite receivers, computers, DVDs or BluRay players in COFDM signals. With simultaneous IP output

€2,250.00
Tax included
Reference Fagor-HTT100
Brand Fagor
Quantity
Available in 24/48h

Free shipping

Fagor HTT 100 Qualio COFDM modulator with HDMI input + IP streaming

€2,250.00

Fagor launches the new Digital HTT 100 Qualio Modulator that converts the high definition HDMI audio / video signal into a DVB-T channel with simultaneous IP output. A totally autonomous team that allows the distribution of High Definition signals in an easy and accessible way, to be received on any television connected to the installation.

It processes HDMI signals from satellite receivers, computers, DVDs or Blue Ray players in COFDM signals. The programming of the HTT 100 is easily done through a keyboard and an integrated screen. It has an LCD screen for your local configuration.

An ideal team for collective installations such as housing estates, residences, hospitals, hotels ...

Features

  • Fully configurable bit rate.
  • Outputs: Bus ASI, IPTV (RJ45), RF.
  • Mix the RF input in the RF output.
  • Interchangeable input modules.
  • Possibility of changing the LCN.
  • Excellent quality of the signal at the output: MER> 42dB.
  • Local configuration with LCD screen.
  • Equipment with internal ventilation, metallic chassis.
  • Remote configuration via Ethernet.
  • Backup / Restore saved configurations.
  • IPTV unicast / multicast.
  • VLC compatible IPTV (MPTS).
  • Simultaneous IP output.

Specifications

Video
Encoding H.264/AVC High Profile Level 4.0(HD)
Input HDMI x 1 + 1 (backup), PbYPr, S-Video, AV
Resolution 1920*1080_60P,1920*1080_50P;1920*1080_60i, 1920*1080_50i;1280*720_60p, 1280*720_50P
Audio
Encoding MPEG1 Layer II
Sample frequency 48KHz
Bit rate 64, 96, 128, 192, 256, 320, 384 Kbps
Modulation
Standar EN300744
FFT mode 2K, 8K
Bandwidth  6, 7, 8 MHz
Constellation  QPSK, 16QAM, 64QAM
Guard interval  1/4, 1/8, 1/16, 1/32
FEC 1/2, 2/3, 3/4, 5/6, 7/8
MER > 42dB
Frequency RF 30~960 MHz, 1 KHz step
Output level 81~97 dB V, 0.1dB step
General
AC power AC 100V~240V
Dimensions  285 x 270 x 50 mm
Weight  2.6 Kg
Operating temperature 0 - 45ºC

Manual (PDF)
