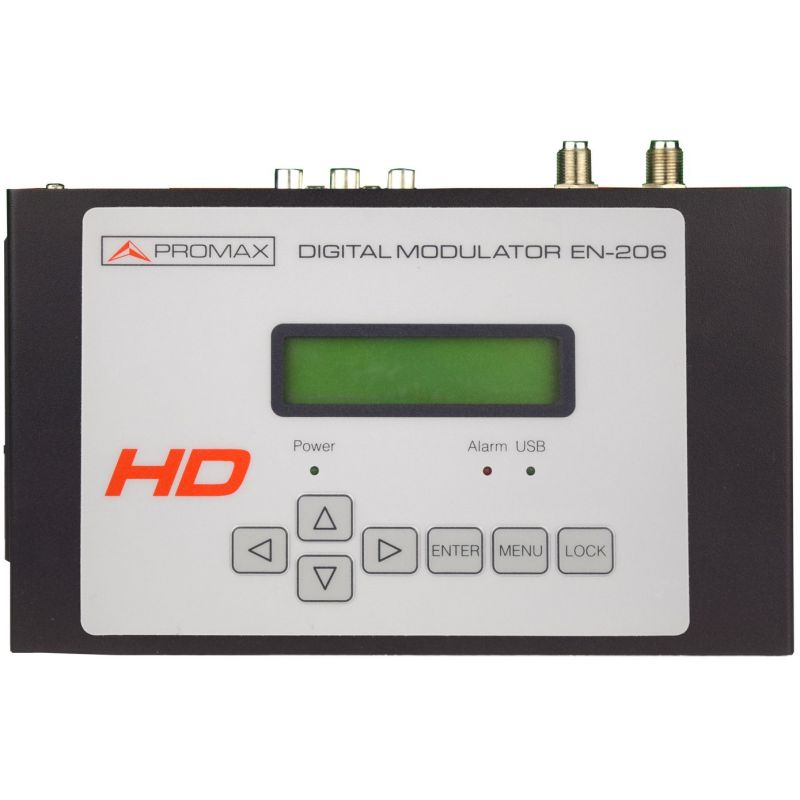

Promax EN-206E DVB-T / ATSC / QAM HD digital modulator

The EN-206E home modulator allows you to send high definition HDMI audio/video signals from satellite TV receivers, closed circuit cameras (CCTV), video players or USB sticks to televisions that use DVB-T Digital Terrestrial Television standards, ATSC and ISDB-T/TB (*), as well as DVB-C digital cable television receivers.

€572.33
Tax included
Reference promax-en-206e
Brand Promax
Quantity
Available in 24/48h

Free shipping
Modulador Promax HD 1080 Alta Definición EN-206, Entrada HDMI

Promax EN-206E DVB-T / ATSC / QAM HD digital modulator

€572.33

The EN-206E home modulator allows you to send high definition HDMI audio / video signals from satellite TV receivers, closed circuit cameras (CCTV), video players or USB sticks to televisions that use DVB-T Digital Terrestrial Television standards, ATSC and ISDB-T / TB (*), as well as DVB-C digital cable television receivers.

The EN-206E can be programmed from a PC by accessing its internal configuration web page (webserver). It can also be programmed via the keyboard and display integrated in the modulator.

The EN-206E integrates an RF combiner in which it is possible to easily add a modulated channel of existing antenna signals. It is a passive combiner that works even if the modulator is turned off. It can also be used in series with other EN-206E modulators as well as with any other type of RF signals so that the number of channels in the SMATV system can be increased as desired.

Features

  • Easy to program: webserver or keyboard + display
  • HDMI to DVB-T / C, ATSC or ISDB-T / TB (*) on UHF and VHF
  • Small and compact, only 45 mm high
  • LCN Programmable
  • DVB table generation
  • Integrated RG Combiner

Specifications

SPECIFICATIONS EN-206E
INPUTS HDMI, CVBS
HDMI INPUT
   Video encoding
   Video resolutions

   Audio coding
   Audio bitrates		 MPEG-4 AVC/H.264
1920x1080 @60p, 1920x1080 @50p, 1920x1080 @60i, 1920x1080 @50
1280x720 @60p, 1920x720 @50p
MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC
64, 96 ,128, 192, 256, 320, 384 kbps
CVBS TICKETSS
  Resolutions
  Coding		 720x576 @50i (PAL), 720x480 @60i (NTSC)
MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC
MODULATION DVB-T COFDM DVB-C J.83 A/B/C ATSC A/53 ARIB STD-B31 (*)
FUNCTIONING Via web interface (webserver) or keyboard + LCD display

(*) On demand.

Downloads

User manual

PRODUCT SHEET
