search
  • Modulador Tecatel DIMHD6 DVB-T HD con entrada HDMI

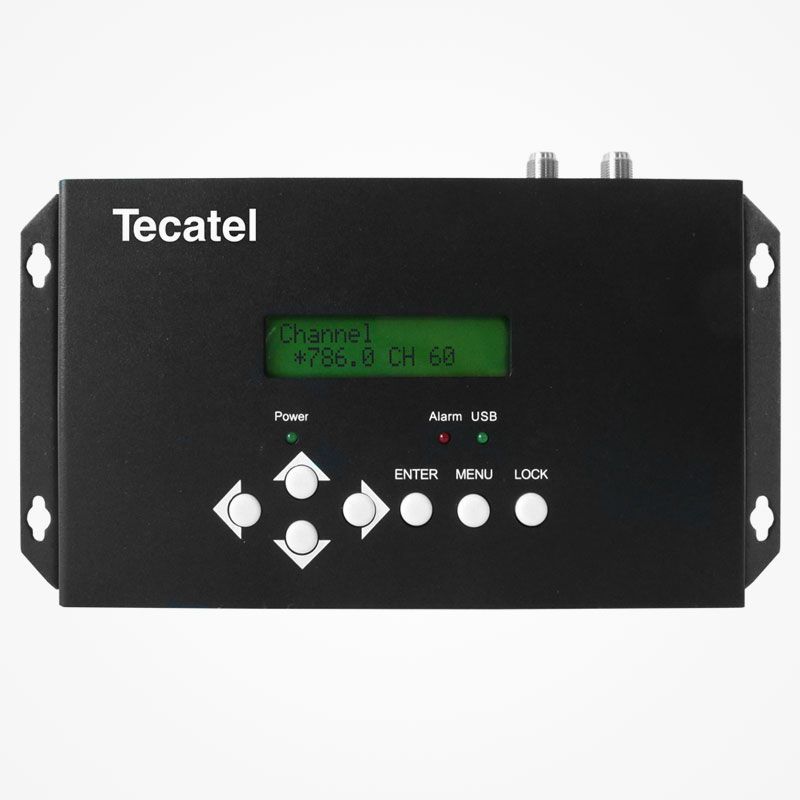

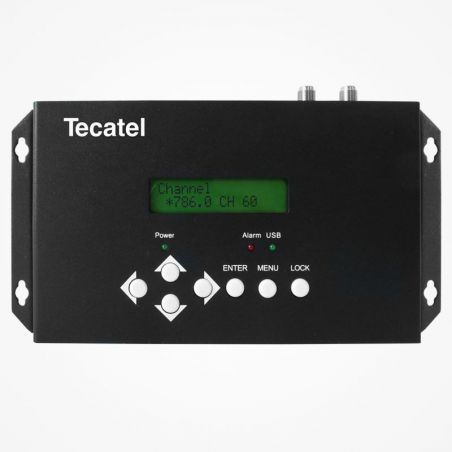

Tecatel DIMHD6 FullHD DVB-T modulator with HDMI input

Tecatel DIMHD6 COFDM modulator for DVB-T HD distribution via the HDMI input. It allows modulation to DTT signal by selecting the output channel.

€532.40
Tax included
Reference tecatel-MOD-DIMHD6
Brand Tecatel
Quantity
Available in 24/48h

Free shipping

Tecatel DIMHD6 FullHD DVB-T modulator with HDMI input

€532.40

Tecatel DIMHD6 HD modulator for the distribution of COFDM signal configurable in DVB-T. It allows the modulation of audio and video coming from the HDMI input to the DTT signal, selecting the output channel. It is used in installations where you want to add a modulated channel to the television network. All televisions would tune it directly without the need for any other device.

Features

  • Digital Terrestrial TV Modulator (VHF-UHF) in Full HD (H264 / AAC).
  • Frequency range: 139-862 MHz.
  • Output level: 111 dBuV.
  • Selection of PID Video / Audio.
  • Editable channel name.
  • QPSK, 16QAM and 64QAM.
  • Compatible DVB-T.
  • High stability in frequency.
  • Easy and intuitive programming through keyboard and LCD display.
  • Low consumption.
  • USB port for update.
  • Aesthetic and compact design.

Specifications

Input
Video input HDMI
Video resolution 480p - 576p - 720p - 1080i - 1080p
Video compression H.264 MP@L 3.0/3.1/4.0. hasta 18.000 Mbps
Audio compression MP2 / AAC / 64 - 384 kbps / 48KHz
Bit rate video 1.000~18.000 Mbps
Output
Insertion of LCN YES
Standard DVB-T/COFDM
FFT carriers 2K - 8K
Output frequency 139 - 862 MHz / adjustable 1Khz steps
Code rate (FEC) 1/2, 2/3, 3/4, 5/6, 7/ 8
Constellation QPSK/16QAM/64QAM
Guard interval 1/4, 1/8, 1/16, 1/32
MER > 31 dB
Bandwidth 6 - 8 MHz
Max output level 111 dBμV (+ 6 / -14 dBm) (adjustable steps 0.1 dB)
Output impedance 75 Ohm
Fine tuning 1 KHz
Type of connector "f" female
Power Supply
Power Supply Adapter 230V AC - 12V 2A
Consumption 7W
General
Operating temperature 0 ~ +45 ºC
Language English
Dimensions / Weight (product) 203x110x50mm / < 1 Kg
