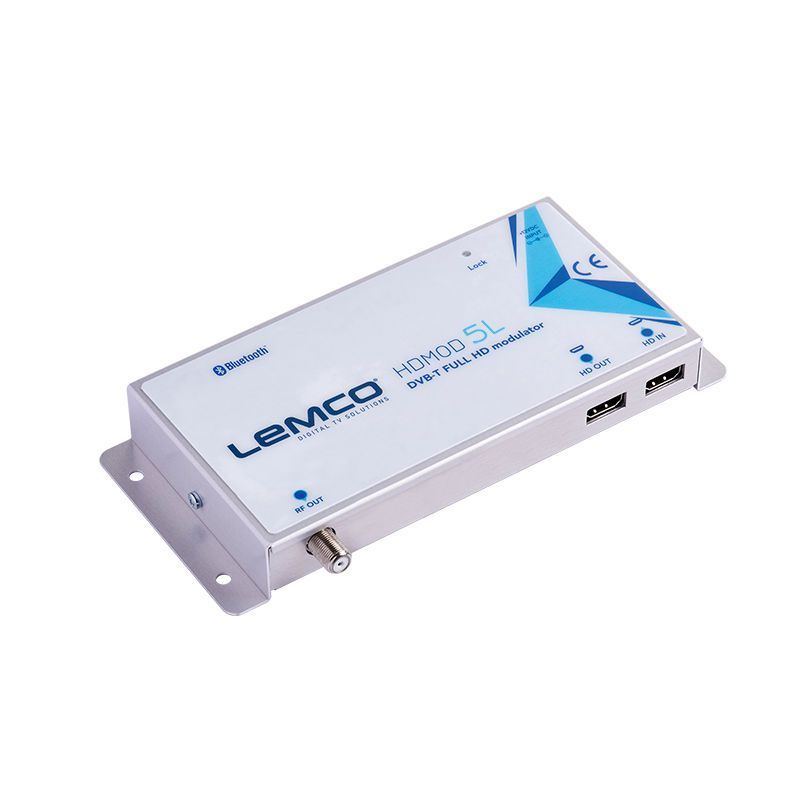

Lemco HDMOD-5L Modulator loop in HDMI to DVB-T and HDMI loop

The HDMOD-5L is a high quality DVB-T "Home" modulator which accepts one HDMI and converts it into one RF DVB-T channel on its output. The excellent picture (Full HD 1920 x 1080 - 30p) and modulation quality (MER ~35dB) renders the HDMOD-5L the ideal solution for distributing SD/HD digital signals coming from.

€179.00
Tax included
Reference lemco-hdmod-5L
Brand Lemco
Quantity
Available in 5/7 days

Free shipping

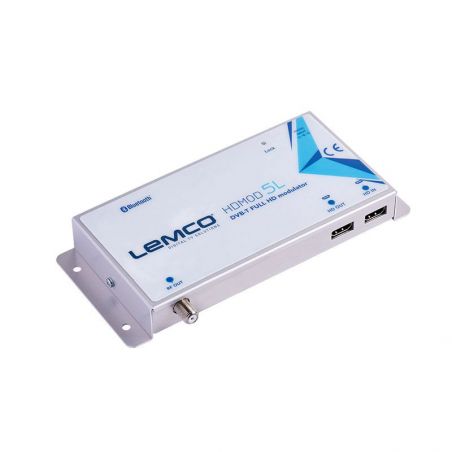

Lemco HDMOD-5L Modulator loop in HDMI to DVB-T and HDMI loop

€179.00

The HDMOD-5L is a high quality DVB-T "Home" modulator which accepts one HDMI and converts it into one RF DVB-T channel on its output. The excellent picture (Full HD 1920 x 1080 - 30p) and modulation quality (MER ~35dB) renders the HDMOD-5L the ideal solution for distributing SD/HD digital signals coming from e.g. a DVD player, STB or camera in a CATV network using the DVB-T technology.

The user has the ability to control the device remotely using Bluetooth interface by downloading the appropriate application from the Android or iOS market for free. Finally, the HDMOD-5L's small size and metal case provides excellent electromagnetic shielding as well as great temperature dissipation and rigidness.

Features

  • 1 HDMI input
  • HDMI loop-through
  • True HDCP support
  • Full HD (1920 x 1080 - 30p) resolution
  • H.264 compression
  • MER value ~ 35dB
  • Control with smartphone app via Bluetooth v4.0
  • Does not require Bluetooth pairing
  • Android v5.1 and above or iOS 11 and above
  • 5 year warranty

Highlights

  • Wall-Mount: Ability to wall mount without any prerequisites
  • Bluetooth Interface: Control and setup of the device using Bluetooth interface
  • Mobile App: >Control the device by using Android or iOS application
  • HDCP support: The device supports HDCP-locked content
  • E/M Shielding: Each unit is electromagnetically shielded
  • 5-Year Warranty

Specifications

Input
Type HDMI
Connector 1 x HDMI Type A
Video coding MPEG-4 AVC / H.264
Profile High profile 4.0
Resolution 1920x1080-30p for HDMI
HDCP support Yes
Audio HDMI & Mono/Stereo
Audio encoding MPEG2, ACC, AC3
Standard MPEG-1 Layer II
Audio bit rate 64, 96, 128, 192, 256, 320, 384 kbps
Level 0.5Vpp to 1.0Vpp adjustable

DVB-T (OUT)
Standard EN 300 744
Bandwidth 5, 6, 7, 8 MHz
Mode 2K, 8K
Constellation QPSK, 16QAM, 64QAM
Guard interval 1/4, 1/8, 1/16, 1/32
Code rate 1/2, 2/3, 3/4, 5/6, 7/8

Programming Interface
Method Via Bluetooth Requires version 4.0 and above ETSI EN 300 328 and EN 300 440 Class 2 (Europe), FCC CFR47 Part 15 (US) and ARIB STD-T66 (Japan).
Android v5.1 and above
iOS v11 and above

H.264 encoder
Standard MPEG-4 AVC / H.264
Bit rate 1 – 19 Mbps adjustable
Configurable parameters Service Name, Service ID, Video PID, Audio PID, PMT PID, PCR PID

Transport Stream Processing
Automatic regeneration NIT,PAT,CAT,SDT, PMTs, EITs tables
Configurable parameters TS ID, Original Network ID, Network ID,Provider Name
LCN support Yes
LCN providers Nordig, ITC/UK, EICTA/Europe, New Zealand

RF Output
Type RF DVB-T (COFDM)
Output Frequencies 174…230 & 470...862 MHz
Output Level 90dbμV max.
Connector 1 x 75Ω - F, female
Output Attenuator 0, -10, -20dBm
MER 35dB (Typical)
Shoulder attenuation Less than 45dBc

General
Power supply +12VDC
Power supply consumption 290 mA max.
Operating temperature 0 ºC to 50 ºC
Storage temperature -10 ºC to +70 ºC
Humidity Up to 90%
Dimensions 160.0 x 89.3 x 28.4 mm
Weight 0.2Kg
