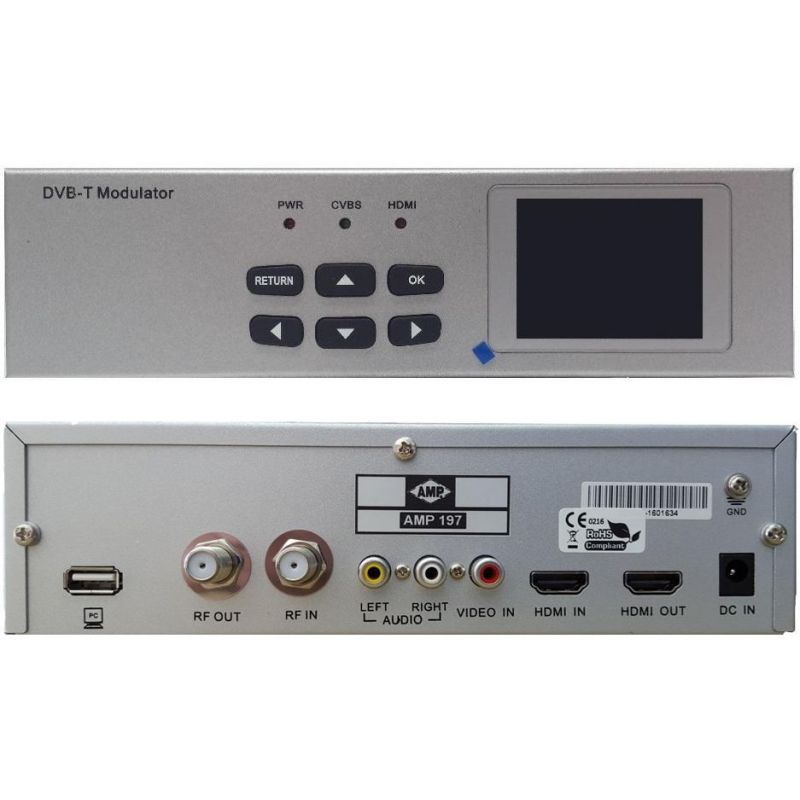

Modulador Edision DVB-T HD COFDM con entrada HDMI y Filtro LTE

Digital DVB-T HD COFDM modulator with HDMI and USB input / output

€716.32

HD digital programmable modulator that incorporates HDMI input and output in high definition and also incorporates USB input to update the software or introduce an advertising channel.

Features

  • HDMI + A / V input (3 RCA) / HDMI output.
  • It incorporates USB to update and introduce an advertising channel.
  • This modulator is compatible with equipment that has HDMI output or Audio / Video output (3 RCA). For this reason, this equipment is compatible with both new generation equipment and equipment with more seniority in the market.
  • It can be used for a multitude of applications such as converting to RF signals from satellite TV receivers, for circuit cameras
    closed (CCTV) and a long list of other applications.

Specifications

Modulator
Standard DVB-T
Constellation QPSK / 16QAM / 64QAM
Bandwidth 6 / 7 / 8 MHz
Carriers 2K / 8K
Guard interval 1/4, 1/8, 1/16, 1/32
Code ratio 1/2, 2/3, 3/4, 5/6, 7/8
MER 35 dB
Frequency range 50 ~ 860 MHz
Output level 70 ~ 100 dBµV
Output impedance 75Ω
Video
Input format CVBS/HDMI
Coding format H.264
Video resolution 576i PAL / 480i NTSC/1080p
Connector RCA/HDMI 1.3
Audio
Input format Stereo L/R channel
Coding format MPEG-1 Audio Layer II
Connector RCA
General
Power supply DC 12V / 1.5A
Operating temperature 0 ~ +50°C
Dimensions 212 mm(L) × 121 mm(W) × 67 mm(H)
Weight 0.9 Kg
