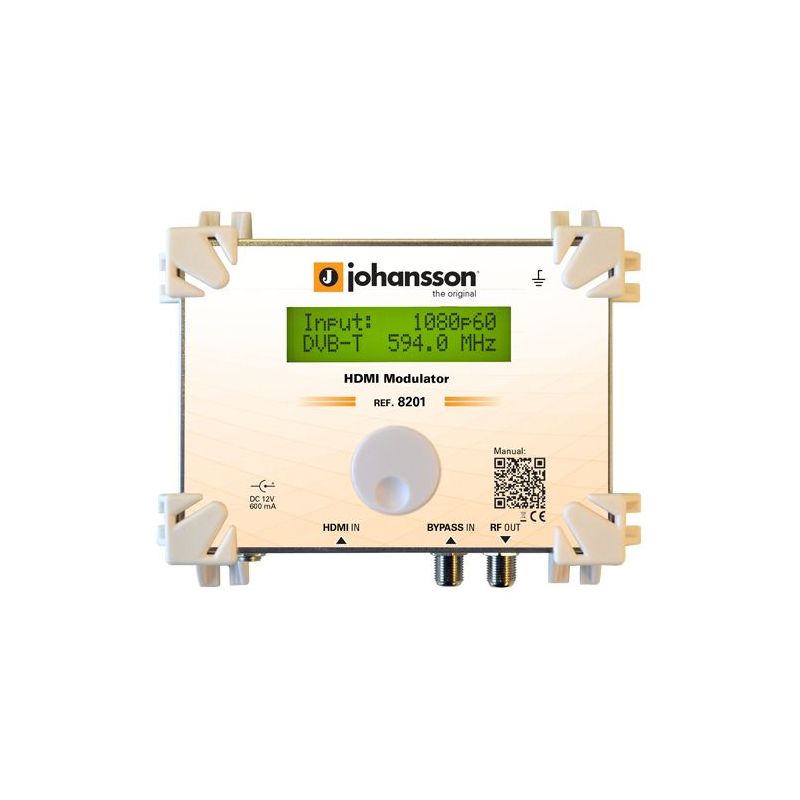

Johansson 8201: HDMI to DVB-T and ISDB-T modulator

HDMI to DVB-T and ISDB-T modulator: 1 HDMI input / 1 RF input - output. Convert your local HDMI signal into an RF signal, ready for distribution over coaxial cables.

€282.27 €421.30 Save 33%

Tax included

Reference johansson-8201

Brand Johansson

Description
Product Details

HDMI to DVB-T and ISDB-T modulator: 1 HDMI input / 1 RF input - output. Convert your local HDMI signal into an RF signal, ready for distribution over coaxial cables.

Features

1 HDMI input, capable of receiving all resolutions.
1 RF input, to by-pass terrestrial or cable signals.
1 RF output, supporting resolutions up to 1080p60: DVB-T and ISDB-T
Perfect picture thanks to a MER comparable to other premium headend equipment.
Easy to use menu structure, in combination with the Johansson rotary/push button.
Optimized for cascading multiple modulators on your coaxial network.
Smallest housing in its range.

Specs

HDMI INPUT
VIDEO RESOLUTION	-	576i up to 1080p
VIDEO ENCODING	-	H264/AVC
AUDIO ENCODING	-	MPEG1 Layer II / AAC
CONNECTOR TYPE	-	HDMI Type A
RF INPUT
FREQUENCY	MHz	5 - 1218
LOSS TO RF OUTPUT	dB	2
RF OUTPUT (=RF INPUT SIGNAL + HDMI MODULATED TRANSPONDER)
MODULATED CHANNEL FREQUENCY	MHz	17 - 1218
OUTPUT LEVEL	dBµV	59 - 99 (adjustable)
MER	dB	Typ. 38
OUTPUT SETTINGS
OUTPUT TYPE	-	DVB-T	ISDB-T
BITRATE	Mbps	2 - 23	2 - 23
CHANNEL BANDWIDTH	MHz	6,7 or 8	6
CONSTELLATION	-	COFDM (QPSK / 16QAM / 64QAM)	COFDM (QPSK / 16QAM / 64QAM)
OTHER SETTINGS	-	Code rate Guard Interval 2K-8K	Code rate Guard Interval 2K-8K
CONFIGURATION
BASIC CONFIGURATION	-	Country \| Output Type \| Output Frequency \| Output Level \| LCN \| Channel Name
ADVANCED CONFIGURATION	-	RF \| Video & Audio \| SID \| PMT, VPID, APID \| NIT, ONID \| PDS \| TS ID
POWER & DIMENSIONS, ETC...
POWER	-	Input Voltage: 12 VDC \| Consumption: 5 W Typ. (6 W max.) \| Jack Ø 2.1 mm
DIMENSIONS, WEIGHT, EAN CODE	-	155 x 120 x 60 mm. \| 0.6 kg. \| 2082010000018
ACCESSORIES	-	12V power adapter
