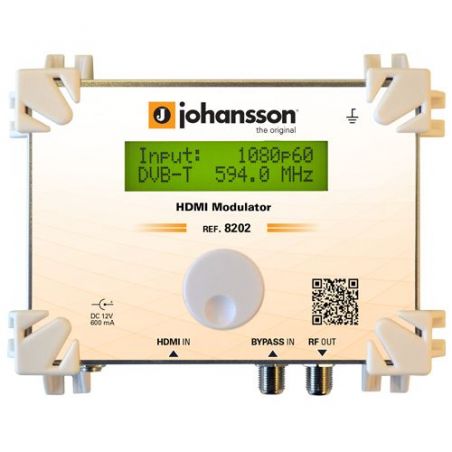

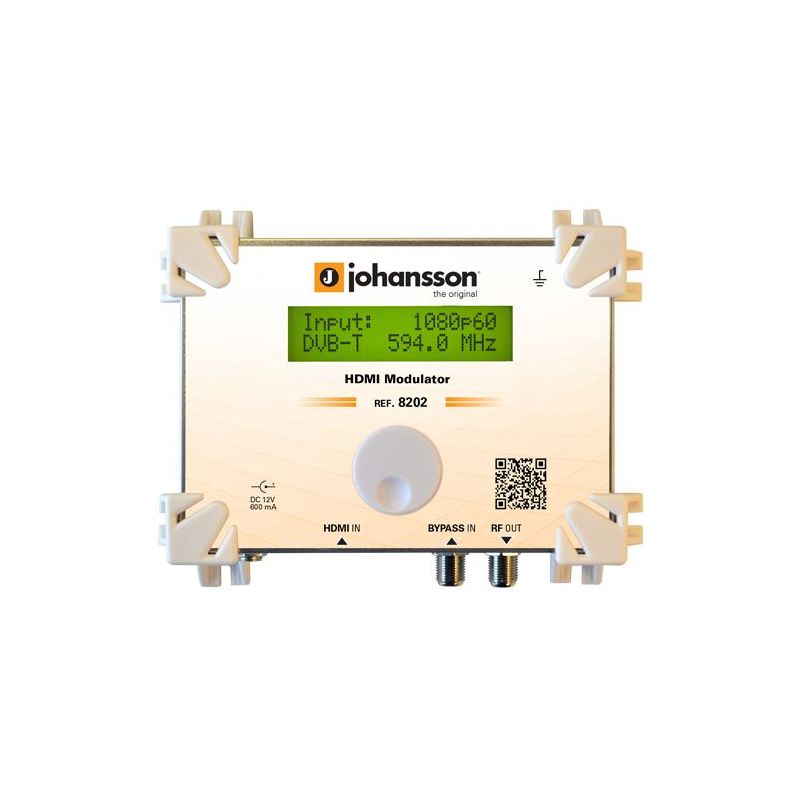

Johansson 8202 HDMI to DVB-T, DVB-C, DMB-T and ATSC modulator
HDMI to DVB-T, DVB-C, DMB-T and ATSC modulator: 1 HDMI input / 1 RF input - output. Convert your local HDMI signal into an RF signal, ready for distribution over coaxial cables.
€381.03
€568.70
Save 33%
Tax included
Reference
johansson-8202
Brand
Johansson
Johansson 8202 HDMI to DVB-T, DVB-C, DMB-T and ATSC modulator
€381.03
€568.70
Save 33%
HDMI to DVB-T, DVB-C, DMB-T and ATSC modulator: 1 HDMI input / 1 RF input - outputConvert your local HDMI signal into an RF signal, ready for distribution over coaxial cables.
Features
- 1 HDMI input, capable of receiving all resolutions.
- 1 RF input, to by-pass terrestrial or cable signals.
- 1 RF output, supporting resolutions up to 1080p60: DVB-T, DVB-C, DMB-T and ATSC
- Perfect picture thanks to a MER comparable to other premium headend equipment.
- Easy to use menu structure, in combination with the Johansson rotary/push button.
- Optimized for cascading multiple modulators on your coaxial network.
- Smallest housing in its range.
Specs
| HDMI INPUT | ||||||
| VIDEO RESOLUTION | - | 576i up to 1080p | ||||
| VIDEO ENCODING | - | H264/AVC | ||||
| AUDIO ENCODING | - | MPEG1 Layer II / AAC | ||||
| CONNECTOR TYPE | - | HDMI Type A | ||||
| RF INPUT | ||||||
| FREQUENCY | MHz | 5 - 1218 | ||||
| LOSS TO RF OUTPUT | dB | 2 | ||||
| RF OUTPUT (=RF INPUT SIGNAL + HDMI MODULATED TRANSPONDER) | ||||||
| MODULATED CHANNEL FREQUENCY | MHz | 17 - 1218 | ||||
| OUTPUT LEVEL | dBµV | 59 - 99 (adjustable) | ||||
| MER | dB | Typ. 38 | ||||
| OUTPUT SETTINGS | ||||||
| OUTPUT TYPE | - | DVB-T | DVB-C | ATSC-T | ATSC-C | DTMB |
| BITRATE | Mbps | 2 - 23 | 2 - 15 | 2 - 23 | ||
| CHANNEL BANDWIDTH | MHz | 6,7 or 8 | 2 to 8 | 6 | 6 | 6 |
| CONSTELLATION | - |
COFDM (QPSK/16QAM/64QAM) |
16QAM 32QAM 64QAM 128QAM 256QAM |
8VSB |
64QAM 256QAM |
QPSK QAM-4NR 16QAM 32QAM 64QAM |
| OTHER SETTINGS | - |
Code rate Guard Interval 2K-8K |
- | - | - |
Interleave Code rate 2K-8K Sync frame PN phase |
| CONFIGURATION | ||||||
| BASIC CONFIGURATION | - | Country | Output Type | Output Frequency | Output Level | LCN | Channel Name | ||||
| ADVANCED CONFIGURATION | - | RF | Video & Audio | SID | PMT, VPID, APID | NIT, ONID | PDS | TS ID | ||||
| POWER & DIMENSIONS, ETC... | ||||||
| POWER | - | Input Voltage: 12 VDC | Consumption: 5 W Typ. (6 W max.) | Jack Ø 2.1 mm | ||||
| DIMENSIONS, WEIGHT, EAN CODE | - | 155 x 120 x 60 mm. | 0.6 kg. | 2082020000015 | ||||
| ACCESSORIES | - | 12V power adapter | ||||
Additional info
HDMI to DVB-T, DVB-C, DMB-T and ATSC modulator: 1 HDMI input / 1 RF input - output. Convert your local HDMI signal into an RF signal, ready for distribution over coaxial cables.
