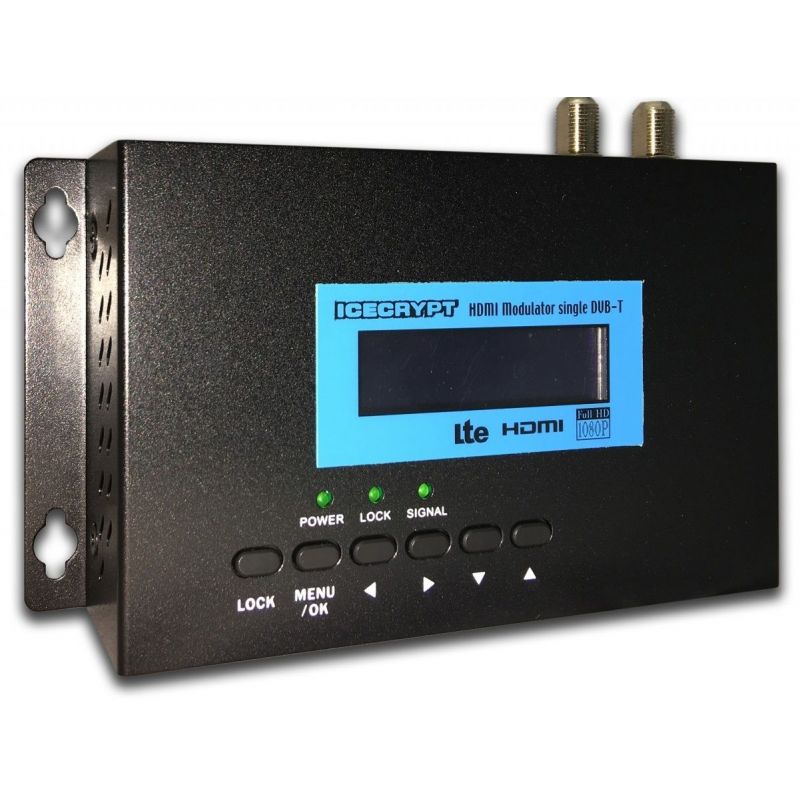

Icecrypt HDM100 modulator COFDM DVB-T HD with HDMI input and LTE filter
HD Modulator that distributes your high definition images to all the devices in the house through the existing coaxial cable line.
€192.39
Tax included
Reference
icecrypt-hdm100
Brand
Icecrypt
You might also like
HD Modulator that distributes your high definition images to all the devices in the house through the existing coaxial cable line.
Main Features
- Distribute your High Definition pictures to other TVs over your existing coax cabling.
- Perfect for Sky, Virgin, Freesat, Freeview, CCTV, DVD/BluRay and any other video source with HDMI Output.
- Remote control IR extender included – control your existing equipment control from a remote location.
- Compatible with existing Sky Link remote control systems.
- Suitable for both domestic and commercial applications with LCN and Variable Output Level.
Specs
| Encoder | |
| Video Encoder | ISO/IEC 11172-2 MPEG1 ISO/IEC 13818-2 MPEG2 MP@HL ISO/IEC 14496 MPEG4 Compliant Support SP@L3 to ASP@L5 ISO/IEC 14496-10AVC HP@level 4.1, MP@level 4.1 H.264 profile 0 JPEG base-line, progressive |
| Aspect Ratio | 16:9 widescreen, 4:3 Letterbox, 4:3 Pan Scan Supports AFD (DTG, MingDTG) |
| Resolution | Up to 1080p@30FPS |
| Modulation | |
| Output Frequency Range | VHF III: 174 ~ 233MHz UHF: 470 ~ 858 MHz |
| Output Impedance | 50Ω |
| Input Impedance | 50Ω |
| Forward Error Correction | 1/2, 2/3, 3/4, 5/6 and 7/8 |
| Guard Interval | 1/4, 1/8, 1/16 and 1/32 |
| Constellations | 16QAM and 64QAM |
| RF Output Level | Default: 90BuV Adjustable: 0 to -14dB 0 to +6dB |
| Channel Bandwidth | 7MHz (VHF), 8MHz (UHF) |
| Reed Solomon | 202, 188, T=8 |
| Symbol Rate | <31.668MBPS |
| MER | >35dB at maximum RF level output |
| Main System | |
| Main Processor | 200MHz 32Bits RISC |
| Security Processor | 200MHz 32Bits |
| Memory | RAM : DDRII 16Bit 512Mbits FLASH : NOR Flash 32MBit |
| Top Panel | |
| RF Input | Impedance: 50Ω Input Type: F-Type Female |
| RF Output | Impedance: 50Ω Input Type: F-Type Female |
| USB Connector | 1x USB 2.0 Host |
| LTE Switch | On/Off (Cut Off Frequency: 790MHz) |
| HDMI Input | 1x HDMI v1.4a, HDCP 1.4 |
| Power DC Input | 1x DC (12V, 2A) |
| Front Panel | |
| Display | 128×32 dots OLED Display |
| LED | Power/Locked/Signal Indicator |
| Buttons | 6 Keys (Left, Right, Up, Down, Lock, Menu) |
| Power Supply | |
| Input Voltage | AC 100-240V |
| Output Voltage | DC 12V/2A |
| Power Consumption | Max. 10W |
| Physical Specification | |
| Size (W x H x D) | 165mm X 105mm X 36mm |
| Weight (Net) | 0.5KG |
| Operating Temp. | 0°C ~ +45°C |
| Storage Temp. | -10°C ~ +70°C |
| EAN | 5060086981902 |
