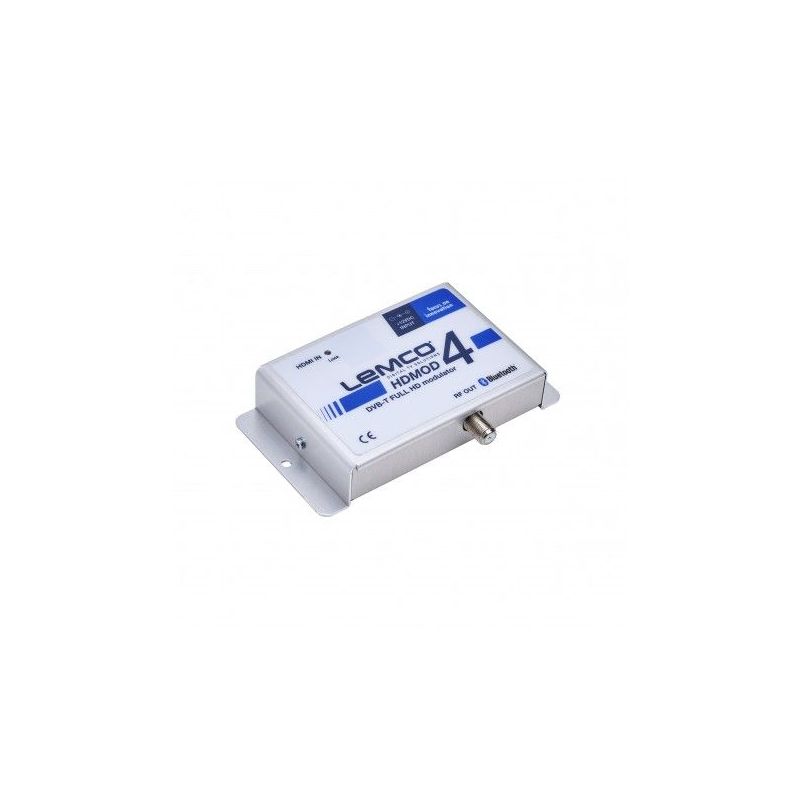

Modem Lemco HDMOD-4 CODFM DVB-T HDMI 1080p with Bluetooth
HDMI to DVB-T CODFM 1.080p domestic modulator with Bluetooth, converts hdmi signal to DVB-T signal.
€147.20
€160.00
Save 8%
Tax included
Reference
lemco-hdmod-4
Brand
Lemco
The HDMOD-4 is a high quality DVB-T "Home" modulator which accepts one HDMI and converts it into one RF DVB-T channel on its output. The excellent picture (Full HD 1920*1080-30p) and modulation quality (MER~35dB) renders the HDMOD-4 the ideal solution for distributing SD/HD digital signals coming from e.g. a DVD player, STB or camera in a CATV network using the DVB-T technology.
The user has the ability to control the device remotely using Bluetooth interface by downloading the appropriate application from the Android or IOS market for free.
Finally, the HDMOD-4’s small size and metal case provides excellent electromagnetic shielding as well as great temperature dissipation and rigidness.
Specs
Input |
|
| Type | 1 x HDMI |
| Connector | 1 x HDMI Type A |
| Video coding | MPEG-4 AVC / H.264 |
| Profile | High profile 4.0 |
| Resolution | 1920x1080-30p for HDMI |
| HDCP support | Yes |
| Audio | HDMI & Mono/Stereo |
| Audio encoding | MPEG2, ACC, AC3 |
| Standard | MPEG-1 Layer II |
| Audio bit rate | 64, 96, 128, 192, 256, 320, 384 kbps |
| Level | 0.5Vpp to 1.0Vpp adjustable |
DVB-T (OUT) |
|
| Standard | EN 300 744 |
| Bandwidth | 5, 6, 7, 8 MHz |
| Mode | 2K, 8K |
| Constellation | QPSK, 16QAM, 64QAM |
| Guard interval | 1/4, 1/8, 1/16, 1/32 |
| Code rate | 1/2, 2/3, 3/4, 5/6, 7/8 |
Programming Interface |
|
| Connector | Via Bluetooth V4.2 (Android and iOS) |
H.264 encoder |
|
| Standard | MPEG-4 AVC / H.264 |
| Bit rate | 1 – 19 Mbps adjustable |
| Configurable parameters | Service Name, Service ID, Video PID, Audio PID, PMT PID, PCR PID |
Transport Stream Processing |
|
| Automatic regeneration | NIT, PAT, CAT, SDT, PMTs, EITs tables |
| Configurable parameters | TS ID, Original Network ID, Network ID, Provider Name |
| LCN support | Yes |
| LCN providers | Nordig, ITC/UK, EICTA/Europe, New Zealand |
RF Output |
|
| Type | RF DVB-T (COFDM) |
| Output Frequencies | 470…862MHz |
| Output Level | 90dbμV max. |
| Connector | 1 x 75Ω - F, female |
| Output Attenuator | 0…25dB |
| MER | 35dB (Typical) |
| Shoulder attenuation | More than 45dBc |
General |
|
| Power supply | +12VDC |
| Power supply consumption | 280 mA max. |
| Operating temperature | 0 ºC to 50 ºC |
| Storage temperature | -10 ºC to +70 ºC |
| Humidity | Up to 90% |
| Dimensions | 131 Χ 83,5 Χ 26 mm |
| Weight | 0.2Kg |
