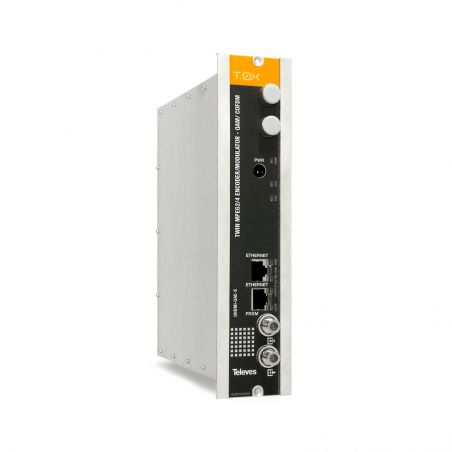

SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 33SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 4776 AND id_lang = 1 T.0X ENCODER TWIN comp. COFDM / QAM + feeder Televes
T.0X ENCODER TWIN comp. COFDM/QAM + alimentador Televes
search
  • T.0X ENCODER TWIN comp. COFDM/QAM + alimentador Televes
  • T.0X ENCODER TWIN comp. COFDM/QAM + alimentador Televes

T.0X ENCODER TWIN comp. COFDM / QAM + feeder Televes

A modulator is a device that transforms an audio/video signal from a source into a digital television channel (Multiplex).

€1,064.80
Tax included
Reference televes-566011
Brand Televes
Quantity
Available in 24/48h

Free shipping
T.0X ENCODER TWIN comp. COFDM/QAM + alimentador Televes

T.0X ENCODER TWIN comp. COFDM / QAM + feeder Televes

€1,064.80

A modulator is a device that transforms an audio/video signal from a source into a digital television channel (Multiplex).

The contents of a Multiplex produced by the Twin Encoder Modulator (ref.566011) consist in two services, since it has two composite video analogue inputs (CVBS), which can be generated by multiple devices, such as cameras, computers, etc. Video can be configured both in MPEG-2  and H-264 (MPEG-4) formats.

The main parameters of the generated signal, such as LNC availability or output modulation mode, can be edited.

The device can be configured either via the web interface embedded in the module or by means of the universal programmer.

Highlights

  • Two physical inputs for composite audio and video.
  • High output power in RF without the need for extra amplification.
  • Configurable via web interface.
  • Device monitoring and signal  status LEDs.
  • Perfect image and audio synchronization.

Features

  • Two physical inputs for CVBS video and for audio (L,R)
  • MPEG-2 or MPEG-4 (H.264) video output format
  • Supports auto-scan for input resolution
  • COFDM or QAM output
  • Excellent quality of the generated signal MER>40dB
  • Rack or individual mount
  • Combiner included (loop input)

Specifications

Reference 566011
Inputs
Vídeo   2 sets 1 x RCA (CVBS)
Audio   2 sets 2 x RCA (L,R)
Video Encoder
Output format MPEG-2 / H.264 (4.0, 4.1, 4.2, 5.1, 5.2)
Resolution 480i & 576i
Input resolution auto-scan (1)
Aspect ratio 4:3, 16:9 and pass
GOP   10, 12, 15, 16, 18, 20, 24 ó 30
Audio Encoder
Output format  MPEG1 Layer2
Sampling rate kHz 48
Output
Frequency band MHz 46...862
Output level maximum Maximum dBµV +115 (+103 with output loop enabled)
Minimum 85(+75 with output loop enabled)
MER  dB >40 (tip)
Spurious dBc -60
QAM Annex A Modulation 16, 32, 64, 128, 256
BaudRate Mbaud 1...7,2
Roll-off % 15
Code Reed Solomon
Spectrum mode Normal / Inverted
Frequency steps kHz 250
COFDM Modulation QPSK, 16QAM, 64QAM
Guard interval µS 1/4, 1/8, 1/16, 1/32
FEC  1/2, 2/3, 3/4, 5/6, 7/8
Bandwidth MHz 6, 7, 8
Cell_id  Editable
Frequency steps kHz 125 / 166
IP Transport Stream SP/MP  Editable
PSI Transport Stream ID  Editable
Original Network ID  Editable
Network ID  Editable
LCN  Editable
NIT  Manual / Automatic
SDT  Manual / Automatic
Tipo LCN  Generic / UK / NorDig V1 / NorDig V2
Network Name  Editable
Service PID  Editable
Service Name  Editable
Service ID  Editable
General
Supply voltage Vdc 12 ... 24
Power consumption W <12
Protection Index IP 20

(1) Output resolution is equal to the resolution of the input signal source.
