DiMod. HD-DVB-T/DVB-C Encoder/Modulator Televes
search
  • DiMod. HD-DVB-T/DVB-C Encoder/Modulator Televes

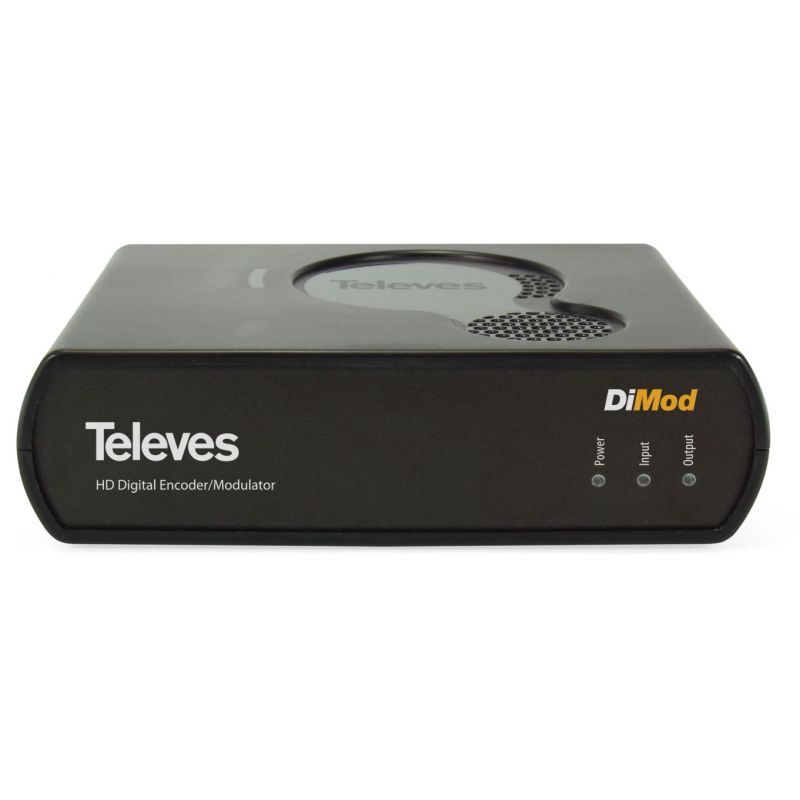

DiMod. HD-DVB-T/DVB-C Encoder/Modulator Televes

This device transforms the digital audio and video signal (HDMI) from an external source (satellite receiver, Smart TV receiver, etc.) into a DVB-T or a DVB-C digital television channel. It is equipped with an HDMI input and allows various configuration parameters to be modified as the input format, the transport stream configuration or the output channel configuration.

€580.80
Tax included
Reference televes-585401
Brand Televes
Quantity
Available in 24/48h

Free shipping
DiMod. HD-DVB-T/DVB-C Encoder/Modulator Televes

DiMod. HD-DVB-T/DVB-C Encoder/Modulator Televes

€580.80

This device transforms the digital audio and video signal (HDMI) from an external source (satellite receiver, Smart TV receiver, etc.) into a DVB-T or a DVB-C digital television channel. It is equipped with an HDMI input and allows various configuration parameters to be modified as the input format, the transport stream configuration or the output channel configuration.

Highlights

  • Audio/video digital input (HDMI)
  • Perfect image and audio synchronization
  • High-quality encoding
  • Equipment status LEDs
  • Intuitive interface and easy programming
  • Energy efficiency and low consumption

Features

  • HDMI digital input
  • MPEG-2 or MPEG-4 (H.264) format video encoding
  • Automatic detection of the input resolution
  • Over 35 dB MER (Modulation Error Rate)
  • Compatibility with multiple resolutions (up to 1080 p @ 60 fps)
  • Uses VBR (Variable Bit Rate), from 2 Mbps to 50 Mb for video, and from 96 kb to 384 kb for audio
  • Signal mixer included (loop input)
  • Configuration via Wi-Fi (smartphone, tablet, computer...)
  • Web-based monitoring and control via Wi-Fi
  • Video loop playback via USB port (.TS format)
  • Firmware update via USB

Package content

  • HDMI-COFDM modulator
  • Power supply 12V - 1.5A
  • User manual

Specifications

ENCODER
Video Encoding MPEG2, H264 Auto, H264-High, H264 4.2, H264 5.0 or H264 5.1
Interface 1 x HDMI
Output resolution Auto (no resizing), 1080p HR (resizing 1080p 50/60 to 1080p 25/30),
1080i, 720p, 576p, 576i, 480p, 480i
Bit rate Mbps 2...50
Audio Interface 1 x HDMI
Sample rate kHz 44.1 or 48
Bit rate kbps 96...384
MODULATOR
Standard DVB-T and DVB-C
Frequency range MHz 46 ... 862
Frequency steps kHz 125, 166 or 250
RF output level dBµV 60 ... 80
RF loop MHz 5 ... 900
USB
File system FAT 32 - High Speed 2.0 (*)
Recommended memory GB 32 (USB device))
Video playback “video.ts” file only (in the USB root)
SYSTEM
Management Wi-Fi 802.11 b/g interface
FW update USB USB
GENERAL
Power supply 12V
Power consumption A <1.1 (**)
Operating temperature ºC 0 ... 30
Weight gr 500
Dimensions mm 165 x 129 x 45
NETWORK ADAPTER
Input voltage V 100 - 240 (50/60Hz)
Input current mA 600
Output voltage V 12
Weight gr 160
Dimensions mm 100 x 48 x 67

(*) Televes does not guarantee 100% compatibility with all USB devices; using high-quality USB devices is recommended.

(**) For 1080p H264 5.1 encoding, non-resizing input/output.
