  • Triax MOD103T HDMI modulator to COFDM

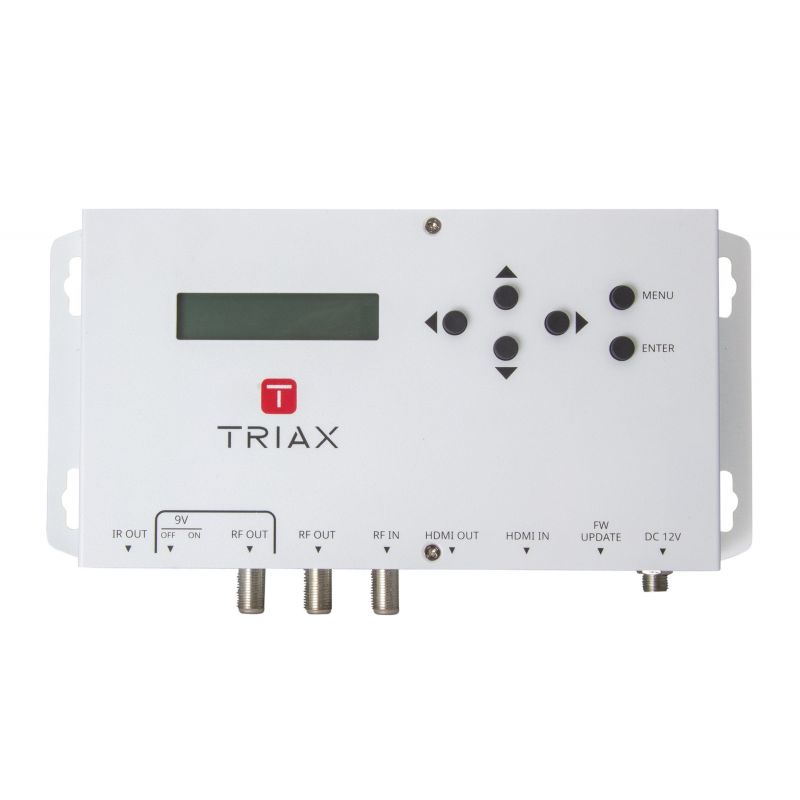

Triax MOD 103T HDMI modulator to COFDM

HDMI modulator to COFDM. Full HD Video and HDMI Loop, 1 antenna input and 2 RF outputs (antenna signal + modulated HDMI service). Infrared control when used with digital links and infrared step amplifiers. Combined output with existing RF signals. Compatible with HDMI sources. IR emitter supplied. Ideal solution for domestic and commercial installations.

€401.12
Tax included
Reference triax-300128
Brand Triax
Quantity
Available Now

Free shipping

Triax MOD 103T HDMI modulator to COFDM

€401.12

HDMI to COFDM Modulator
Watch + control HD content at each TV location using existing coax cable infrastructure

Features

  • Enhanced viewing experience
  • IR Control when used with Digital Links and IR Pass Amplifiers
  • Compatible with HDMI sources.
    • IR Emitter supplied
  • Ideal solution for domestic and commercial installations
  • HDMI loop through for connection to the local TV
  • Combine existing RF with the modulated output channel on RF Out 1 and RF Out 2
  • Adjustable level control to balance the COFDM channel with the incoming RF channels (1dB steps)
  • Source Set Top Box etc. can be controlled from another TV location using an IR emitter and a digital link (included)
  • The local coaxial network must be connected to the RF Out 2 (with the 9VDC able to pass through the network) to remotely power the digital link
  • Set up via the front panel and LCD screen
  • Firmware update via USB interface

Specifications

Video Input HDMI
Audio Input Stereo, HDMI
Video resolution Up to 1080p@30Hz Pixel
Video Compression H.264 4.0
Audio Compression MPEG-2, AAC
Number of carriers 2K / 8K
Guard Interval 1/4, 1/8, 1/16, 1/32
Constellation QPSK/16QAM/64QAM
Code rate 1/2, 2/3, 3/4, 5/6, 7/8
Output level < 95 dBµV
MER <30 dB
FREQUENCY
Frequency range 177…858 MHz
Bandwidth 6/7/8 MHz
RETURN LOSS
LCN 1…999
ELECTRICAL
Impedance 75 Ω
OPERATIONAL
DC Operating voltage 12 VDC
External PSU Included
Service Settings

Serv. Name: Edit service name

Serv. ID: 1-65535
Stream Settings

Orig Netw ID: 1-65535

Netw ID: 1-65535 TS

ID: 1-65535

Netw Name: Edit Network Name
Parameter Settings

Const: QPSK/16QAM/64QAM

Code Rate: 5/6, 7/8

Guard Interval: 1/4, 1/8, 1/16, 1/32

Trans Mode: 2K, 8K Bandwidth: 6,7,8 MHz
CONNECTORS
Input connector HDMI, F-terrestrial loop through
Connector IN HDMI female (Type A)
Connector OUT F-female
MECHANICAL
Display LCD panel and buttons
Product Height 106 mm
Product Depth 32 mm
Product Width 220 mm
Colour White
Packaging Height 0.057 m
Packaging Width 0.248 m
Packaging Depth 0.190 m
Packaging Volume 0.003 m3
