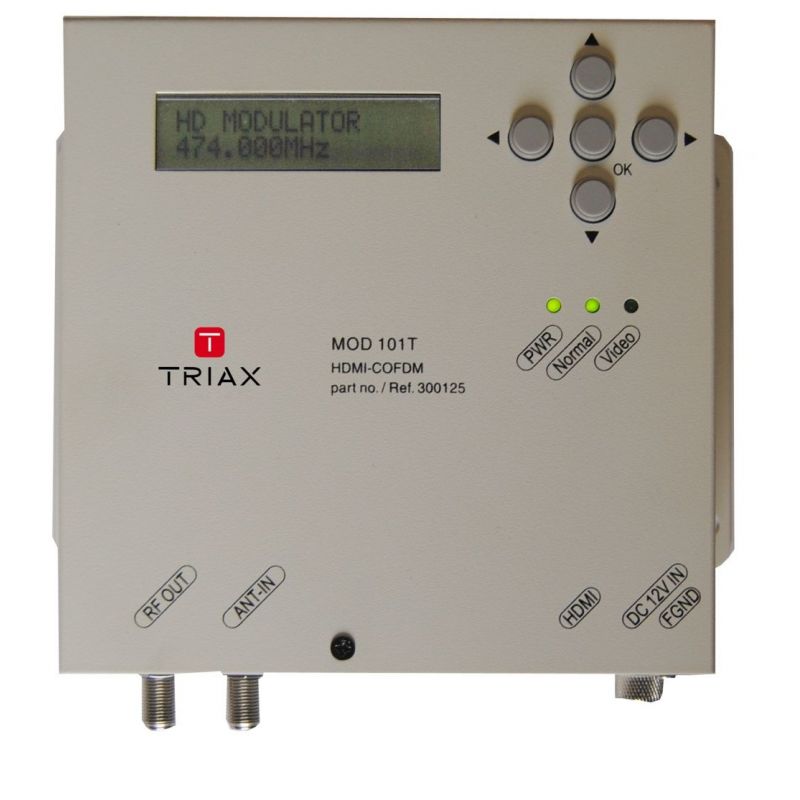

  • Triax MOD 101T HDMI modulator to COFDM

Triax MOD 101T HDMI modulator to COFDM

The MOD 101T is a COFDM modulator with one high definition HDMI input (1080P, MEPG4) and a full range COFDM modulator.

€499.00 €804.65 Save €305.65
Tax included
Reference triax-300125
Brand Triax
Quantity
Last items in stock

Free shipping

Triax MOD 101T HDMI modulator to COFDM

€499.00 €804.65 Save €305.65
The MOD 101T is a COFDM modulator with one high definition HDMI input (1080P, MEPG4) and a full range COFDM modulator.

Specifications

ORDER INFORMATION
EAN Number 5702663001251
CHARACTERISTICS
Video Input HDMI
Audio Input Stereo, HDMI
Video resolution Up to 1080p@30Hz Pixel
Video Compression H.264/AC
Audio Compression MPEG-1 Audio Layer II (ISO/IEC 11172-3)
Number of carriers 2K / 8K
Guard Interval 1/4, 1/8, 1/16, 1/32
Constellation QPSK/16QAM/64QAM
COFDM DVB-T in accordance with ETSI EN 300 744
Code rate 1/2, 2/3, 3/4, 5/6, 7/8
Output level 90 dBµV
MER >36 dB
FREQUENCY
Frequency range 100-860 MHz
Bandwidth 6/8 MHz
RETURN LOSS
Screen Resolution 800x600 / 1024x768 / 1280x600 / 1280x720 / 1280x768 / 1360x768 / 1366x768
PID settings PMT/Video & Audio / PCR
PSI HID/ONID/P.D.S./TS ID
LCN Up to 1023
ELECTRICAL
Impedance 75 Ω
OPERATIONAL
DC Operating voltage 12 VDC
Power Consumption (typ.) 8 W
CONNECTORS
Connector Type F-female
Input connector Video / Audio: HDMI Type A
Connector IN HDMI female (Type A)
Connector OUT F-female
MECHANICAL
Display LCD panel
Mounting Wall mount
Product Height 37 mm
Product Depth 150 mm
Product Width 150 mm
Packing QTY 1
Packaging Height 0.072 m
Packaging Width 0.200 m
Packaging Depth 0.200 m
Packaging Volume 0.003 m3
Net Weight 0.480 kg
Tara Weight 0.150 kg
Total Weight 0.630 kg
