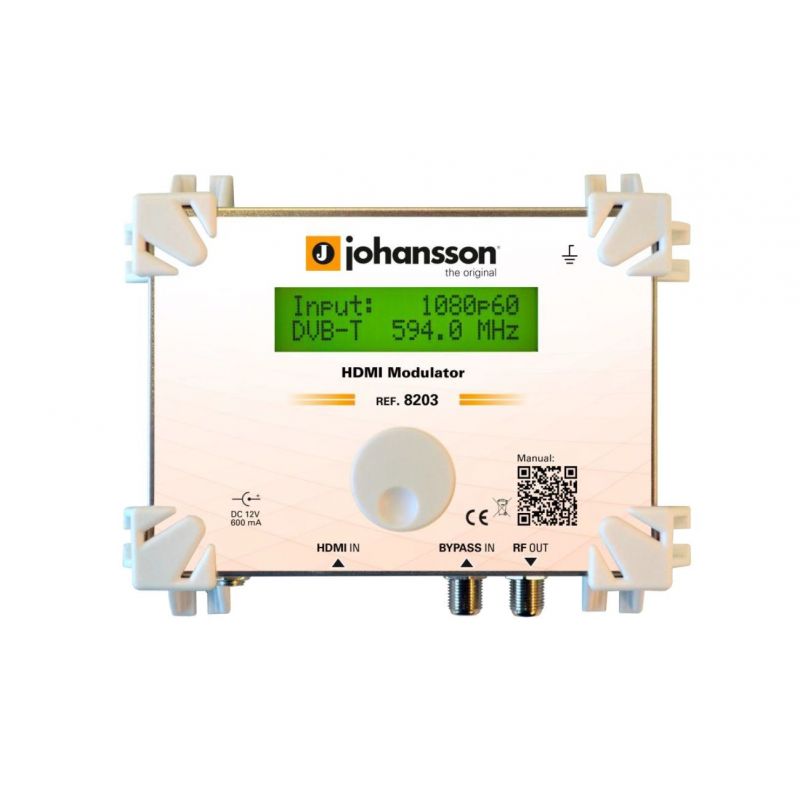

Johansson 8203 HDMI to DVB-T
HDMI to DVB-T modulator: 1 HDMI input / 1 RF input - output. This professional HDMI modulator converts your local HDMI signal into an RF signal, ready for distribution over coaxial cables. Suitable for 24/7 usage, which makes it one of the most reliable HDMI modulators on the market.
Reference
johansson-8203
Brand
Johansson
HDMI to DVB-T modulator: 1 HDMI input / 1 RF input - output
This professional HDMI modulator converts your local HDMI signal into an RF signal, ready for distribution over coaxial cables.
The 8203 is suitable for 24/7 usage, which makes it one of the most reliable HDMI modulators on the market.
Features
- 1 HDMI input, capable of receiving all resolutions up to 1080p60.
- 1 RF input, to by-pass terrestrial or cable signals.
- 1 RF output: DVB-T
- Perfect picture thanks to a MER comparable to other premium headend equipment.
- Easy to use menu structure, in combination with the Johansson rotary/push button.
- Optimized for cascading multiple modulators on your coaxial network.
- Smallest housing in its range.
Specifications
| HDMI INPUT | ||
|---|---|---|
| VIDEO RESOLUTION | - | 576i up to 1080p |
| VIDEO ENCODING | - | H264/AVC |
| AUDIO ENCODING | - | MPEG1 Layer II / AAC |
| CONNECTOR TYPE | - | HDMI Type A |
| RF INPUT | ||
| FREQUENCY | MHz | 5 - 1218 |
| LOSS TO RF OUTPUT | dB | 2 |
| RF OUTPUT | (=RF INPUT SIGNAL + HDMI MODULATED TRANSPONDER) | |
| MODULATED CHANNEL FREQUENCY | MHz | 174 - 790 |
| OUTPUT LEVEL | dBµV | 49 - 79 (adjustable) |
| MER | dB | Typ. 38 |
| OUTPUT SETTINGS | ||
| OUTPUT TYPE | - | DVB-T |
| BITRATE | MBps | 2 - 23 |
| CHANNEL BANDWIDTH | MHz | 6, 7 or 8 |
| CONSTELLATION | - | COFDM (QPSK / 16 QAM / 64QAM) |
| OTHER SETTINGS | - | Code rate, Guard interval, 2K-8K |
| CONFIGURATION | ||
| BASIC CONFIGURATION | - | Country | Output Type | Output Frequency | Output Level | LCN | Channel Name |
| ADVANCED CONFIGURATION | - | RF | Video & Audio | SID | PMT, VPID, APID | NIT, ONID | PDS | TS ID |
| POWER & DIMENSIONS, ETC... | ||
| POWER | - | Input Voltage: 12 VDC | Consumption: 5 W Typ. (6 W max.) | Jack Ø 2.1 mm |
| DIMENSIONS, WEIGHT, EAN CODE | - | 155 x 120 x 60 mm. | 0.6 kg. | 2082030000012 |
| ACCESSORIES | - | 12V power adapter |
