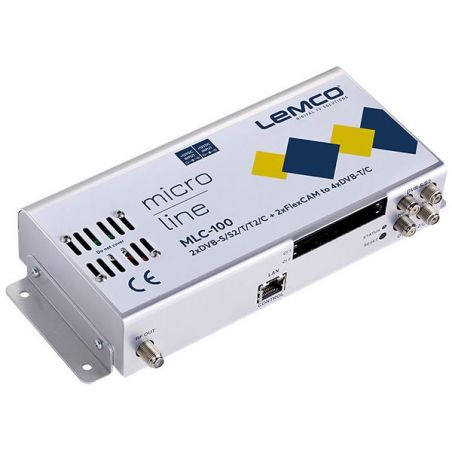

Lemco MLC-100 2 x DVB-S/S2/T/T2/C + 2 x FlexCAM to 4 x DVB-T/C
search
  • Lemco MLC-100 2 x DVB-S/S2/T/T2/C + 2 x FlexCAM to 4 x DVB-T/C

Lemco MLC-100 2 x DVB-S/S2/T/T2/C + 2 x FlexCAM to 4 x DVB-T/C

The MLC-100 is a very powerful, all-in-one mini headend device, able to receive up to 2 independent satellite (DVB-S/S2), terrestrial (DVB-T/T2) or cable (DVB-C) signals with 2x CI interfaces and convert them either in 4 x DVB-T/C RF output channels.

€1,072.50
Tax included
Reference lemco-mlc-100
Brand Lemco
Quantity
Available in 5/7 days

Free shipping
Lemco MLC-100 2 x DVB-S/S2/T/T2/C + 2 x FlexCAM to 4 x DVB-T/C

Lemco MLC-100 2 x DVB-S/S2/T/T2/C + 2 x FlexCAM to 4 x DVB-T/C

€1,072.50

5 - 7 days shipping

The MLC-100 is a very powerful, all-in-one mini headend device, able to receive up to 2 independent satellite (DVB-S/S2), terrestrial (DVB-T/T2) or cable (DVB-C) signals with 2x CI interfaces and convert them either in 4 x DVB-T/C RF output channels.

It supports "pool" technology, meaning that the user is able to select any program from any of the 2 inputs and assign them to any of the 4 RF or IP outputs providing great flexibility. The FlexCAM technology provides the ability to the user to connect the CAMs either at the inputs or the outputs of the device.

The embedded web server of the MLC-100 provides a very friendly user interface as well as the ability of remote or local control of the device via LAN.

Its small size and its powerful features render the MLC-100 the ideal solution in case we want to distribute FTA (Free-To-Air) or scrambled TV programs coming from satellite (DVB-S/S2), terrestrial (DVB-T/T2) or cable (DVB-C) sources to a CATV installation using the DVB-T/C.

Features

  • 2 x independent multi-standard inputs DVB-S/S2/T/T2/C
  • 4 x RF output DVB-T/C (software selectable)
  • 2 x FlexCAM
  • "Pool" technology
  • MER value > 42dB
  • PID filtering
  • Dual power supplies offering redundancy mode
  • Custom NIT/SDT
  • Local or remote control via webserver
  • Very friendly user interface
  • Wall or rack mount options
  • SNMP v2
  • Ultra-compact size
  • 5-year warranty

Highlights

  • Rack Mount, Ability to rack mount by using a specific rack mount case
  • Wall-Mount, Ability to wall mount without any prerequisites
  • LAN Interface, Control the device with any web browser, on local or remote network
  • EPG over RF, Electronic Program Guide broadcasts via RF
  • PID filtering
  • Customizable NIT & SDT to your needs
  • Pool Technology
  • FlexCAM
  • Multi-Standard
  • E/M Shielding, Each unit is electromagnetically shielded
  • Dual Power Supply, Each unit contains two power supplies

Specifications

Input
Type 2 x DVB-S/S2/T/T2/C
Frequencies 950…2150 MHz DVB-S/S2
118…900 MHz DVB-T/T2/C
Connector 75Ω - F, female
Descrambling Yes, Accepts 2 x universal CAM capable of connecting either on input or output
LNB
Voltage OFF / 13V / 18V
Current Less than 400mA
22 kHz signal On / Off
22 kHz signal - Voltage 0.65V ±0.35V
22 kHz signal - Frequency 22 KHz ±4Hz
22 kHz signal - DiSEqC 1.0 (Port A, B, C, D)
DVB-S (IN)
Symbol rate 1 - 45 MBaud
Roll off factor 0.2, 0.25, 0.35
Code rate 1/2, 2/3, 3/4, 5/6, 7/8 (Automatic)
Spectral inversion Reverse, Non-reverse (Automatic)
DVB-S2 (IN)
Constellation QPSK, 8PSK (Automatic)
Symbol rate 1 - 55 MBaud (QPSK)
1 - 45 MBaud (8PSK)
Roll off factor 0.2, 0.25, 0.35 (Automatic)
Code rate 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 8/10 (QPSK-Automatic)
3/5, 2/3, 3/4, 5/6, 8/9, 9/10 (8PSK-Automatic)
Spectral inversion Reverse, Non-reverse (Automatic)
DVB-T (IN)
Bandwidth 6, 7, 8 MHz
Mode 2K, 8K
Constellation QPSK, 16QAM, 64QAM
Guard interval 1/4, 1/8, 1/16, 1/32
Code rate 1/2, 2/3, 3/4, 5/6, 7/8
DVB-T2 (IN)
Bandwidth 5, 6, 7, 8 MHz
Mode 1K, 2K, 4K, 8K, 16K, 32K (Included extended mode)
Constellation QPSK, 16QAM, 64QAM, 256QAM
Code rate 1/2, 3/5, 2/3, 3/4, 4/5, 5/6
DVB-C (Annex A,B,C) (IN)
Bandwidth 5, 6, 7, 8 MHz
Mode Automatic modulation detection
Constellation 16QAM, 32QAM, 64QAM, 128QAM, 256QAM
Transport Stream Processing
Services User selection by service names
Automatic regeneration PAT, CAT, SDT, PMTs, EITs tables
NIT Pass-through, custom,automatic
PCR re-stamping
LCN support Yes
RF Output
Type 4 x RF out in adjacent channels
Output Frequencies 110…950 MHz (1 Hz step)
Output Level 104dBµV
Connector 75Ω - F, female
Output Attenuator 0…-10dB
MER More than 42dB
DVB-T (OUT)
Bandwidth 5, 6, 7, 8 MHz
Mode 2K, 8K
Constellation QPSK, 16QAM, 64QAM
Guard interval 1/4, 1/8, 1/16, 1/32
Code rate 1/2, 2/3, 3/4, 5/6, 7/8
DVB-C (OUT)
Bandwidth 5, 6, 7, 8 MHz
Mode 2K, 8K
Constellation 16QAM, 32QAM, 64QAM, 128QAM, 256QAM
Symbol rate 1-7.2 Ms/s
Programming Interface
Ethernet webserver Yes, embedded webserver
Speed 10/100 Mbps
Connector RJ45
Browser compatibility Chrome, Firefox, Safari, Opera, Edge et al.
General
Power supply 2 x +12VDC
Power supply consumption 1.8A max.
Operating temperature 0 °C to 40 °C
Storage temperature -10 °C to +70 °C
Humidity Up to 90%
Dimensions 235 x 115 x 48 mm
Weight 450 g
