search

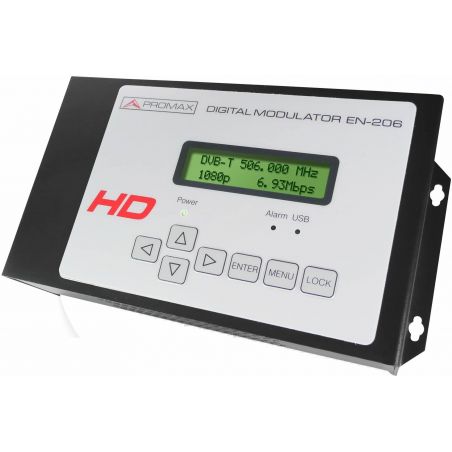

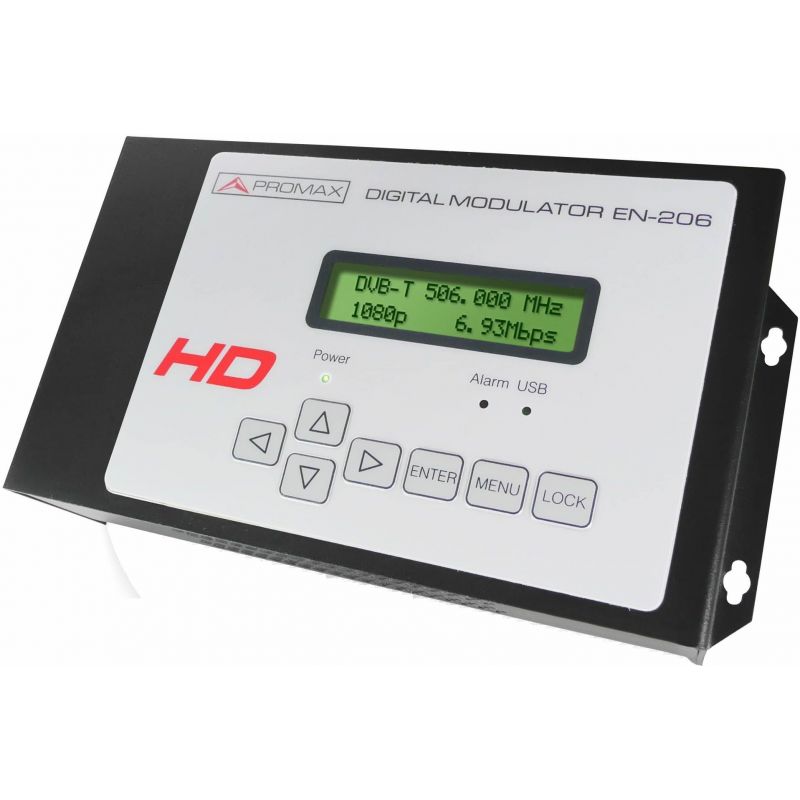

Promax EN-206D High definition multistandard modulator (DVB-T, DVB-C, ATSC and ISDB-T/Tb)

The EN-206D modulator sends HDMI high definition audio/video signal from TV satellite receivers, closed-circuit television cameras (CCTV), video players or USB pendrives to a TV which uses DVB-T, ATSC and ISDB-T/Tb Digital Terrestrial Television standards, as well as DVB-C digital cable television receivers.

€845.79
Tax included
Reference promax-en-206d
Brand Promax
Quantity
Available in 24/48h

Free shipping

Promax EN-206D High definition multistandard modulator (DVB-T, DVB-C, ATSC and ISDB-T/Tb)

€845.79

The EN-206D home modulator sends HDMI high definition audio / video signal from TV satellite receivers, closed-circuit television cameras (CCTV), video players or USB pendrives to a TV which uses DVB-T, ATSC and ISDB-T/Tb Digital Terrestrial Television standards, as well as DVB-C digital cable television receivers.

The EN-206D can be set from a PC, accessing to its internal web settings page (webserver). It can also be set via the keyboard and display built on the modulator.

The EN-206D includes an RF combiner on which a channel modulated from existing antenna signals can be added easily. It is a passive combiner that works even if the modulator is off. It can also be daisy-chained with other EN-206D modulators and with any other RF signal so that the number of channels in the SMATV system can be increased as desired.

Main Features

  • Easy to program via webserver or keyboard + display
  • HDMI to DVB-T/C, ATSC or ISDB-T/T B in VHF and UHF
  • Built-in RF Combiner
  • LCN Programmable
  • DVB Tables Generation
  • Compact and small, 45 mm high

Specs

SPECIFICATIONS EN-206D
INPUTS HDMI, YPbPr, CVBS, S-Video, USB
HDMI INPUT
  Video encoding
  Video resolutions
  Audio encoding
  Audio bit rate
MPEG-4 AVC/H.264
1920x1080 @(50/60p, 50/60i), 1280x720 @(50/60p)
MPEG-1 Layer II, MPEG2-AAC, MPEG4-AAC
64, 96, 128, 192, 256, 320, 384 kbps
CVBS / S-VIDEO INPUTS
  Resolutions
  Encoding
720x576 @50i (PAL), 720x480 @60i (NTSC)
MPEG-4 AVC/H.264
YPbPr INPUT
  Resolutions
  Encoding
1920x1080 @(60i/50i), 1280x720 @(60p/50p)
MPEG-4 AVC/H.264
USB TS files recording and playback
MODULATION DVB-T COFDM
DVB-C J.83 A/B/C
ATSC A/53
ISDB-T/Tb ARIB STD-B31
MANAGEMENT Via web interface (webserver) or LCD + control buttons
