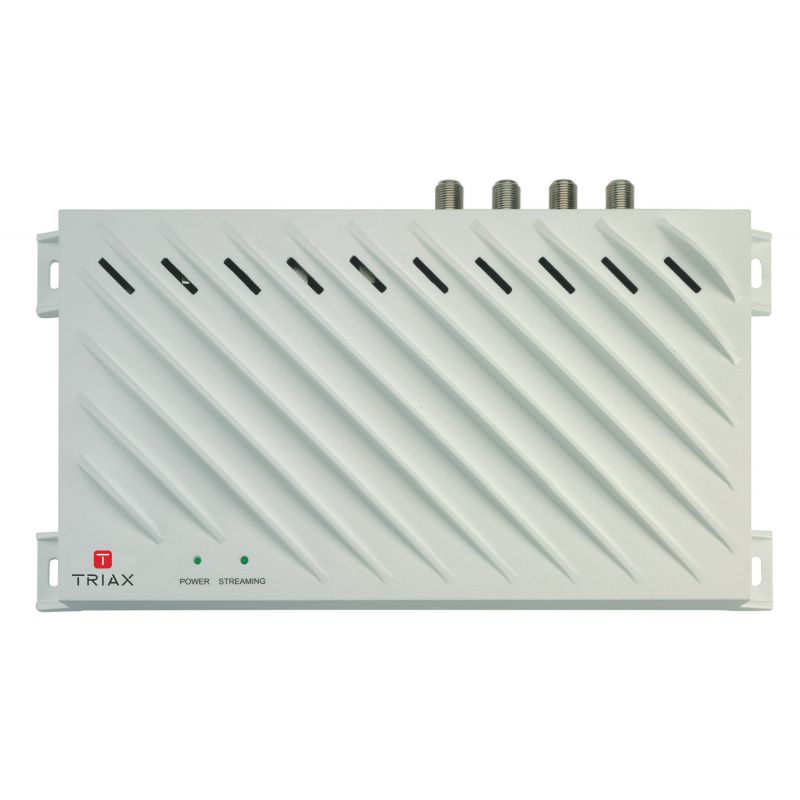

TSS 400 converter of SAT to IP signals Triax
The TRIAX TSS 400 SAT> IP server receives classic SAT signals, converts them and distributes them to up to four different clients or units of the IP network. SAT signals can be fed through a Quad LNB or Quatro LNB. Audio quality and digital image even in high resolution HD format. Up to four units can access different television programs at the same time.
€453.75
Tax included
Reference
triax-310101
Brand
Triax
The TRIAX TSS 400 SAT> IP server receives classic SAT signals, converts them and distributes them to up to four different clients or units of the IP network. SAT signals can be fed through a Quad LNB or Quatro LNB.
Features
- The SAT> IP server is easy to configure and control with a web controller.
- Tuning of all free television and radio programs through a satellite.
- SAT distribution through wired and wireless networks.
- Audio quality and digital image even in high resolution HD format.
- Up to four units can access different television programs at the same time.
- Supports all SAT> IP units such as the Triax IP 100 SATIP receiver, tablets, smartphones, computers and laptops.
- UDP / RTP multicast
- Software update via USB.
- Supports 100/1000 MBit networks.
Specifications
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702663101012 |
| CHARACTERISTICS | |
| CEC | Yes |
| Sat>IP DVB-S/S2 live streaming to IP media | Yes |
| Sat>IP Multicast via UDP/RTP | Yes |
| Sat>IP Unicast | Yes via HTTP 1.0/1.1 |
| Tuner Input LNB type | Single, Twin, Quad, Quattro, Optical Quad/Quattro, Unicable LNB |
| Tuner Input ports | 4 x DVB-S/S2 (F-female) |
| ELECTRICAL | |
| Ethernet interface - data rate | 100/1000 |
| OPERATIONAL | |
| Control LEDs | Ethernet: Blue / Activity: Blue blink / NO Ethernet: LED OFF |
| DC Operating voltage | 12 VDC |
| External PSU | Included |
| Power on LED | Green |
| Sat>IP Protocols supported | V1.2 |
| Temperature - operating | 0...+40 °C |
| DC Current consumption | 2500 mA |
| CONNECTORS | |
| Connector SAT in | F-female |
| Connector DC | DC jack |
| Connector LAN | RJ45 female |
| MECHANICAL | |
| Colour | White |
| Product Depth | 125 mm |
| Total Weight | 1,230 kg |
| Net Weight | 1,230 kg |
| Packaging Volume | 0,001 m3 |
| Product Width | 250 mm |
| Product Height | 35 mm |
The TRIAX TSS 400 SAT> IP server receives classic SAT signals, converts them and distributes them to up to four different clients or units of the IP network. SAT signals can be fed through a Quad LNB or Quatro LNB. Audio quality and digital image even in high resolution HD format. Up to four units can access different television programs at the same time.
