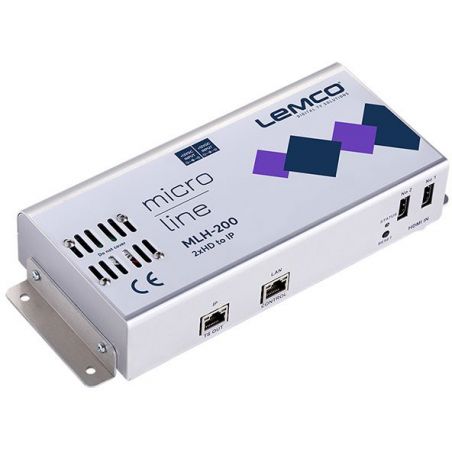

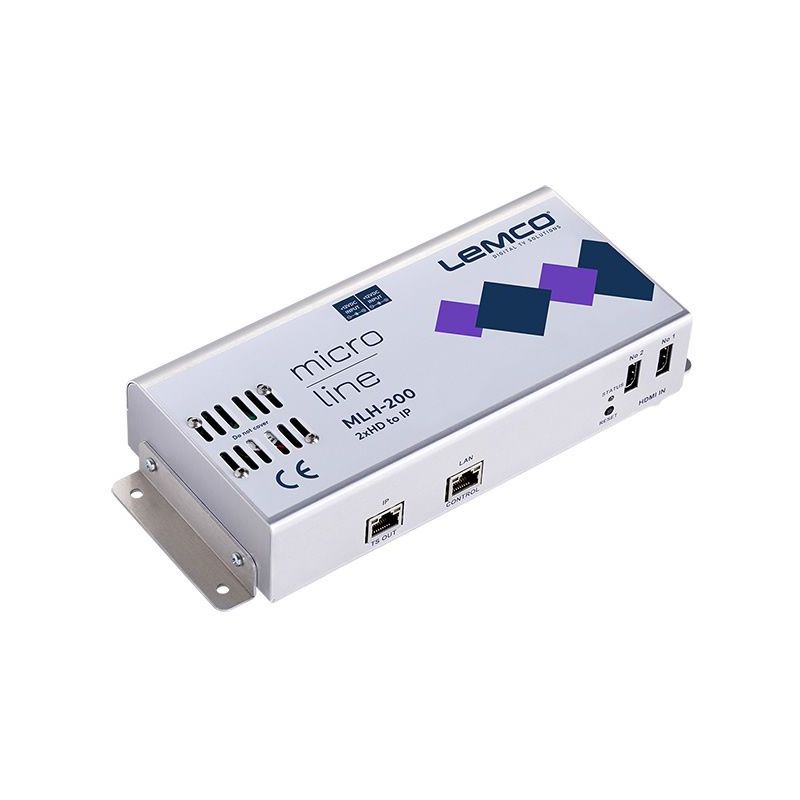

Lemco MLH-200 2 x HDMI to IP streaming

The MLH-200 is a very powerful, all-in-one mini headend device, able to receive up to 2 HDMI signals and convert them either in IPTV streaming using UDP/RTP protocols multicast/unicast. The embedded web server of the MLH-200 provides a very friendly user interface as well as the ability of remote or local control of the device via LAN.

€862.95
Tax included
Reference lemco-mlh-200
Brand Lemco
Quantity
Available in 5/7 days

Free shipping

Lemco MLH-200 2 x HDMI to IP streaming

€862.95

5 - 7 days shipping

The MLH-200 is a very powerful, all-in-one mini headend device, able to receive up to 2 HDMI signals and convert them either in IPTV streaming using UDP/RTP protocols multicast/unicast.

The embedded web server of the MLH-200 provides a very friendly user interface as well as the ability of remote or local control of the device via LAN.

Its small size and its powerful features render the MLH-200 the ideal solution in case we want to distribute HDMI content eg. coming from STBs or Blu-ray to a CATV installation using the IPTV technology.

Features

  • 2 x HDMI inputs (up to 1080-30p)
  • HDCP support
  • Gbit IP streaming (up to 64 x SPTS / 4 x MPTS)
  • Dual power supplies offering redundancy mode
  • Local or remote control via webserver
  • Very friendly user interface
  • Wall or rack mount options
  • SNMP v2
  • Ultra-compact size
  • 5-year warranty

Highlights

  • Rack Mount, Ability to rack mount by using a specific rack mount case
  • Wall-Mount, Ability to wall mount without any prerequisites
  • LAN Interface, Control the device with any web browser, on local or remote network
  • HDCP support, The device supports HDCP-locked content
  • EPG over IP, Electronic Program Guide broadcasts via IP streaming
  • E/M Shielding, Each unit is electromagnetically shielded
  • Dual Power Supply, Each unit contains two power supplies

Specifications

Input
Type 2 x HDMI
Video coding MPEG-4 AVC / H.264
Profile High profile 4.0
Input resolution Up to 1920 x 1080 - 50/60 p & i
Output resolution Up to 1920 x 1080 - 30p
HDCP support Yes
Audio (IN)
Audio HDMI
Standard MPEG-1 Layer II
Bit rate ήχου 64, 96, 128, 192, 256, 320 Kbps
Format MPEG2, AAC, AC3
H.264 encoder
Standard MPEG-4 AVC / H.264
Bit rate 1 – 19 Mbps adjustable
Configurable parameters Service Name, Service ID
LCN processing Yes
IP Streaming
IP TS Out Yes
Protocol UDP / RTP (Multicast/Unicast)
Speed 1 Gbit
IGMP support Yes, v2, v3
Type MPTS (up to 4 TS)
SPTS (up to 64TS)
Max. bitrate 480Mbps max.
Programming Interface
Ethernet webserver Yes, embedded webserver
Speed 10/100 Mbps
Connector RJ45
Browser compatibility Chrome, Firefox, Safari, Opera, Edge et al.
General
Power supply 2 x +12VDC
Power supply consumption 1.4A max.
Operating temperature 0 °C to 40 °C
Storage temperature -10 °C to +70 °C
Humidity Up to 90%
Dimensions 235 x 115 x 48 mm
Weight 450 g
