SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 79SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 8210 AND id_lang = 1 Lemco MLH-300 2 x HDMI to 2 x DVB-T/C + IP streaming

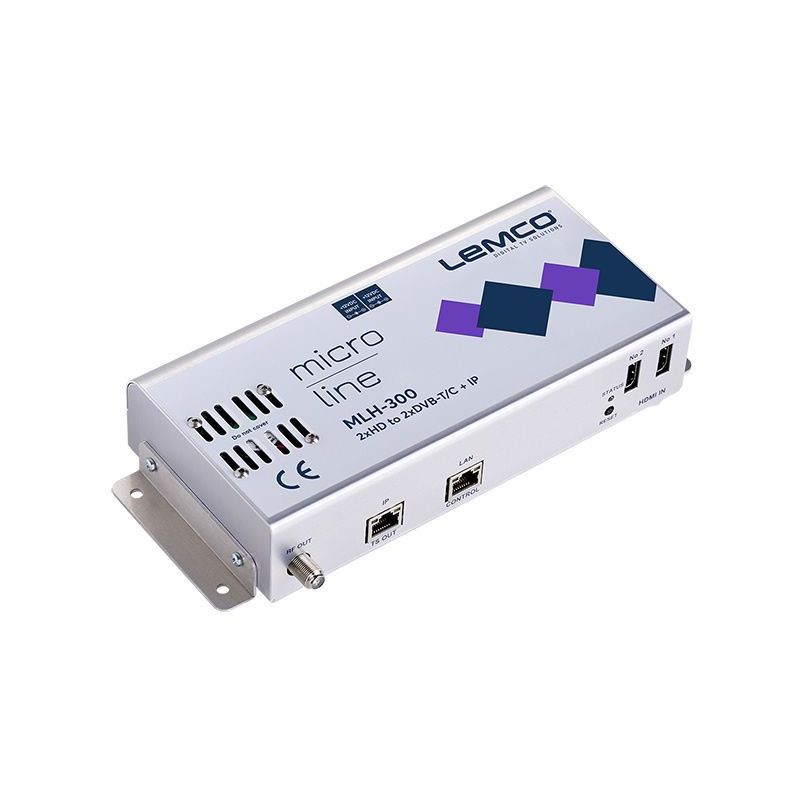

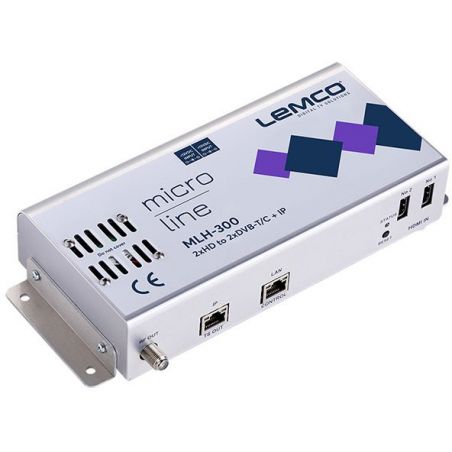

Lemco MLH-300 2 x HDMI to 2 x DVB-T/C + IP streaming
search
  • Lemco MLH-300 2 x HDMI to 2 x DVB-T/C + IP streaming

Lemco MLH-300 2 x HDMI to 2 x DVB-T/C + IP streaming

The MLH-300 is a very powerful, all-in-one mini headend device, able to receive up to 2 HDMI signals and convert them either in 2 x DVB-T/C RF output channels or in IPTV streaming using UDP/RTP protocols multicast/unicast. It supports "pool" technology, the user is able to select any program from any of the 2 inputs and assign them to any of the 2 RF or IP outputs providing great flexibility.

€1,326.60
Tax included
Reference lemco-mlh-300
Brand Lemco
Quantity
Available in 5/7 days

Free shipping
Lemco MLH-300 2 x HDMI to 2 x DVB-T/C + IP streaming

Lemco MLH-300 2 x HDMI to 2 x DVB-T/C + IP streaming

€1,326.60
The MLH-300 is a very powerful, all-in-one mini headend device, able to receive up to 2 HDMI signals and convert them either in 2 x DVB-T/C RF output channels or in IPTV streaming using UDP/RTP protocols multicast/unicast.

It supports "pool" technology, meaning that the user is able to select any program from any of the 2 inputs and assign them to any of the 2 RF or IP outputs providing great flexibility.

The embedded web server of the MLH-300 provides a very friendly user interface as well as the ability of remote or local control of the device via LAN.

Its small size and its powerful features render the MLH-300 the ideal solution in case we want to distribute HDMI content eg. coming from STBs or Blu-ray to a CATV installation using the DVB-T/C or IPTV technology.

Features

  • 2 x HDMI inputs (up to 1080-30p)
  • HDCP support
  • 4 x RF output DVB-T/C (software selectable)
  • Gbit IP streaming (up to 64 x SPTS / 4 x MPTS)
  • "Pool" technology
  • MER value > 42dB
  • Dual power supplies offering redundancy mode
  • Custom NIT/SDT
  • Local or remote control via webserver
  • Very friendly user interface
  • Wall or rack mount options
  • SNMP v2
  • Ultra-compact size
  • 5-year warranty

Highlights

  • Rack Mount, Ability to rack mount by using a specific rack mount case
  • Wall-Mount, Ability to wall mount without any prerequisites
  • LAN Interface, Control the device with any web browser, on local or remote network
  • HDCP support, The device supports HDCP-locked content
  • EPG over RF & IP, Electronic Program Guide broadcasts via RF & IP streaming
  • PID filtering
  • Customizable NIT & SDT, Customize NIT and SDT to your needs
  • Hybrid IP-RF, Simultaneous RF outputs and IP streaming supported
  • Pool Technology
  • E/M Shielding, Each unit is electromagnetically shielded
  • Dual Power Supply, Each unit contains two power supplies

Specifications

Input
Type 2 x HDMI
Video coding MPEG-4 AVC / H.264
Profile High profile 4.0
Input resolution Up to 1920 x 1080 - 50/60 p & i
Output resolution Up to 1920 x 1080 - 30p
HDCP support Yes
Audio (IN)
Audio HDMI
Standard MPEG-1 Layer II
Bit rate ήχου 64, 96, 128, 192, 256, 320 Kbps
Format MPEG2, AAC, AC3
H.264 encoder
Standard MPEG-4 AVC / H.264
Bit rate 1 – 19 Mbps adjustable
Configurable parameters Service Name, Service ID
LCN processing Yes
Transport Stream Processing
Services User selection by service names
Automatic regeneration PAT, CAT, SDT, PMTs, EITs tables
NIT Pass-through, custom,automatic
PCR re-stamping
LCN support Yes
RF Output
Type 4 x RF out in adjacent channels
Output Frequencies 110…950 MHz (1 Hz step)
Output Level 104dBµV
Connector 75Ω - F, female
Output Attenuator 0…-10dB
MER More than 42dB
DVB-T (OUT)
Bandwidth 5, 6, 7, 8 MHz
Mode 2K, 8K
Constellation QPSK, 16QAM, 64QAM
Guard interval 1/4, 1/8, 1/16, 1/32
Code rate 1/2, 2/3, 3/4, 5/6, 7/8
DVB-C (OUT)
Bandwidth 5, 6, 7, 8 MHz
Mode 2K, 8K
Constellation 16QAM, 32QAM, 64QAM, 128QAM, 256QAM
Symbol rate 1-7.2 Ms/s
Programming Interface
Ethernet webserver Yes, embedded webserver
Speed 10/100 Mbps
Connector RJ45
Browser compatibility Chrome, Firefox, Safari, Opera, Edge et al.
General
Power supply 2 x +12VDC
Power supply consumption 1.4A max.
Operating temperature 0 °C to 40 °C
Storage temperature -10 °C to +70 °C
Humidity Up to 90%
Dimensions 235 x 115 x 48 mm
Weight 450 g
