  • Lemco MLF-201 4 x DVB-S/S2/S2X to IP

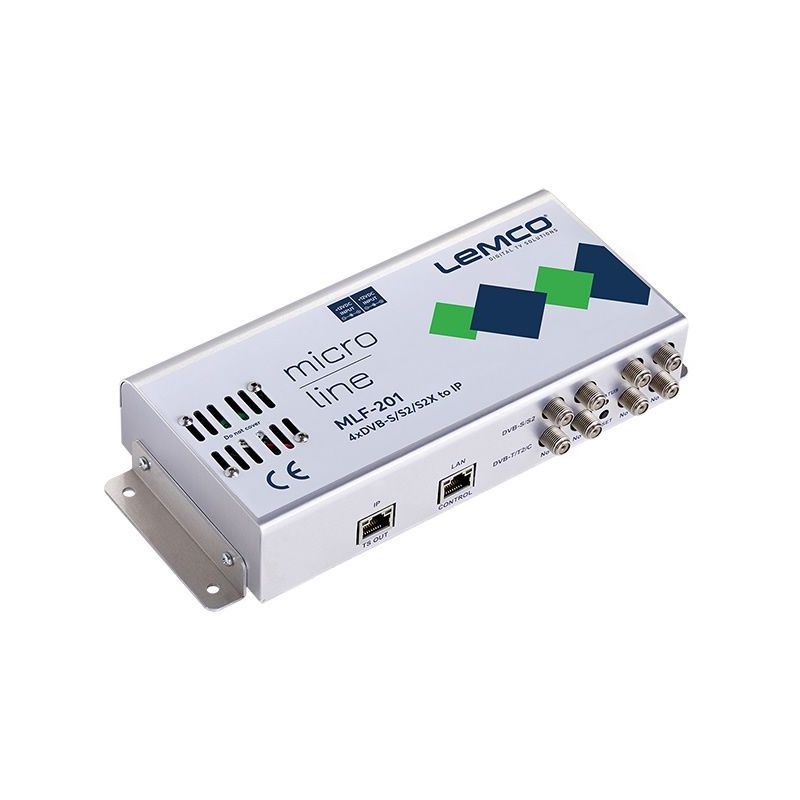

Lemco MLF-201 4 x DVB-S/S2/S2X to IP

The MLF-201 is a very powerful, all-in-one mini headend device, able to receive up to 4 independent satellite (DVB-S/S2/S2X) signals and convert them in IPTV streaming using UDP/RTP protocols multicast/unicast. Moreover, the MLF-201 supports "multistream" satellite reception too.

€965.25
Tax included
Reference lemco-mlf-201
Brand Lemco
Quantity
Available in 5/7 days

Free shipping

Lemco MLF-201 4 x DVB-S/S2/S2X to IP

€965.25
The MLF-201 is a very powerful, all-in-one mini headend device, able to receive up to 4 independent satellite (DVB-S/S2/S2X) signals and convert them in IPTV streaming using UDP/RTP protocols multicast/unicast. Moreover, the MLF-201 supports "multistream" satellite reception too.

The embedded web server of the MLF-201 provides a very friendly user interface as well as the ability of remote or local control of the device via LAN.

Its small size and its powerful features render the MLF-201 the ideal solution in case we want to distribute FTA (Free-To-Air) TV programs coming from satellite (DVB-S/S2/S2X) sources to an installation using IPTV technology.

Features

  • 4 x independent multi-standard inputs DVB-S/S2/S2X
  • "Multistream" reception support
  • Gbit IP streaming (up to 64 x SPTS / 4 x MPTS)
  • Dual power supplies offering redundancy mode
  • Local or remote control via webserver
  • Very friendly user interface
  • Wall or rack mount options
  • SNMP v2
  • Ultra-compact size
  • 5-year warranty

Highlights

  • Rack Mount, Ability to rack mount by using a specific rack mount case
  • Wall-Mount, Ability to wall mount without any prerequisites
  • LAN Interface, Control the device with any web browser, on local or remote network
  • EPG over IP, Electronic Program Guide broadcasts via IP streaming
  • Multi-Standard
  • Multi-Stream Support
  • E/M Shielding, Each unit is electromagnetically shielded
  • Dual Power Supply, Each unit contains two power supplies


Specifications

Input
Type 4 x DVB-S/S2/S2X
Frequencies 950…2150 MHz DVB-S/S2/S2X
Multistream support Yes
Connector 75Ω - F, female
LNB
Voltage OFF / 13V / 18V
Current Less than 400mA
22 kHz signal On / Off
22 kHz signal - Voltage 0.65V ±0.35V
22 kHz signal - Frequency 22 KHz ±4Hz
22 kHz signal - DiSEqC 1.0 (Port A, B, C, D)
DVB-S (IN)
Symbol rate 1 - 55 MBaud
Roll off factor 0.2, 0.25, 0.35
Code rate 1/2, 2/3, 3/4, 5/6, 7/8 (αυτόματο)
Spectral inversion Reverse, Non-reverse (αυτόματο)
DVB-S2 (IN)
Constellation QPSK, 8PSK (Automatic)
Symbol rate 1 - 55 MBaud (QPSK)
1 - 45 MBaud (8PSK)
Roll off factor 0.2, 0.25, 0.35 (Automatic)
Code rate 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 8/10 (QPSK-Automatic)
3/5, 2/3, 3/4, 5/6, 8/9, 9/10 (8PSK-Automatic)
Spectral inversion Reverse, Non-reverse (Automatic)
DVB-S2X (IN)
Constellation QPSK, 8PSK (Automatic)
Symbol rate 1 - 45 MBaud (QPSK)
1 - 30 MBaud (8PSK)
Roll off factor Από 0.05 έως 0.35 (Automatic)
Code rate 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 8/10 (QPSK-Automatic)
3/5, 2/3, 3/4, 5/6, 8/9, 9/10 (8PSK-Automatic)
IP Streaming
IP TS Out Yes
Protocol UDP / RTP (Multicast/Unicast)
Speed 1 Gbit
IGMP support Yes, v2, v3
Type MPTS (up to 4 TS)
SPTS (up to 64TS)
Max. bitrate 480Mbps max.
Programming Interface
Ethernet webserver Yes, embedded webserver
Speed 10/100 Mbps
Connector RJ45
Browser compatibility Chrome, Firefox, Safari, Opera, Edge et al.
General
Power supply 2 x +12VDC
Power supply consumption 1.4A max.
Operating temperature 0 °C to 40 °C
Storage temperature -10 °C to +70 °C
Humidity Up to 90%
Dimensions 235 x 115 x 48 mm
Weight 450 g
