  • Lemco MLF-300 4 x DVB-S/S2/T/T2/C to 4 x DVB-T/C + IP streaming

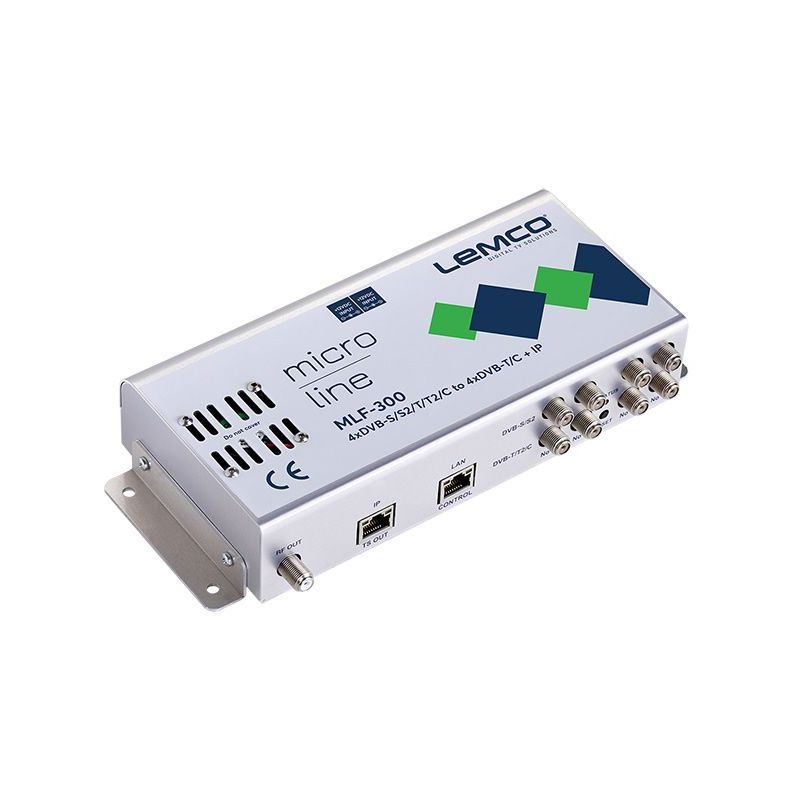

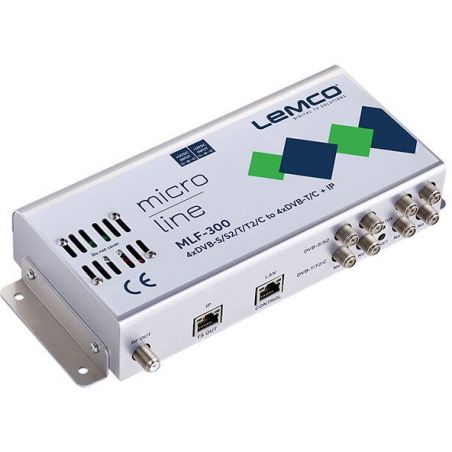

Lemco MLF-300 4 x DVB-S/S2/T/T2/C to 4 x DVB-T/C + IP streaming

The MLF-300 is a very powerful, all-in-one mini headend device, able to receive up to 4 independent satellite (DVB-S/S2), terrestrial (DVB-T/T2) or cable (DVB-C) signals and convert them either in 4 x DVB-T/C RF output channels or in IPTV streaming using UDP/RTP protocols multicast/unicast.

€1,353.00
Tax included
Reference lemco-mlf-300
Brand Lemco
Quantity
Available in 5/7 days

Free shipping

Lemco MLF-300 4 x DVB-S/S2/T/T2/C to 4 x DVB-T/C + IP streaming

€1,353.00

5 - 7 days shipping

The MLF-300 is a very powerful, all-in-one mini headend device, able to receive up to 4 independent satellite (DVB-S/S2), terrestrial (DVB-T/T2) or cable (DVB-C) signals and convert them either in 4 x DVB-T/C RF output channels or in IPTV streaming using UDP/RTP protocols multicast/unicast.

It supports "pool" technology, meaning that the user is able to select any program from any of the 4 inputs and assign them to any of the 4 RF or IP outputs providing great flexibility.

The embedded web server of the MLF-300 provides a very friendly user interface as well as the ability of remote or local control of the device via LAN.

Its small size and its powerful features render the MLF-300 the ideal solution in case we want to distribute FTA (Free-To-Air) TV programs coming from satellite (DVB-S/S2), terrestrial (DVB-T/T2) or cable (DVB-C) sources to a CATV installation using the DVB-T/C or IPTV technology.

Features

  • 4 x independent multi-standard inputs DVB-S/S2/T/T2/C
  • 4 x RF output DVB-T/C (software selectable)
  • Gbit IP streaming (up to 64 x SPTS / 4 x MPTS)
  • "Pool" technology
  • MER value > 42dB
  • PID filtering
  • Dual power supplies offering redundancy mode
  • Custom NIT/SDT
  • Local or remote control via webserver
  • Very friendly user interface
  • Wall or rack mount options
  • SNMP v2
  • Ultra-compact size
  • 5-year warranty

Highlights

  • Rack Mount, Ability to rack mount by using a specific rack mount case
  • Wall-Mount, Ability to wall mount without any prerequisites
  • LAN Interface, Control the device with any web browser, on local or remote network
  • Customizable NIT & SDT, Customize NIT and SDT to your needs
  • EPG over RF & IP, Electronic Program Guide broadcasts via RF & IP streaming
  • Hybrid IP-RF, Simultaneous RF outputs and IP streaming supported
  • Pool Technology
  • PID filtering
  • Multi-Standard
  • E/M Shielding, Each unit is electromagnetically shielded
  • Dual Power Supply, Each unit contains two power supplies

Specifications

Input
Type 4 x DVB-S/S2/T/T2/C
Frequencies 950…2150 MHz DVB-S/S2
118…900 MHz DVB-T/T2/C
Connector 75Ω - F, female
LNB
Voltage OFF / 13V / 18V
Current Less than 400mA
22 kHz signal On / Off
22 kHz signal - Voltage 0.65V ±0.35V
22 kHz signal - Frequency 22 KHz ±4Hz
22 kHz signal - DiSEqC 1.0 (Port A, B, C, D)
DVB-S (IN)
Symbol rate 1 - 45 MBaud
Roll off factor 0.2, 0.25, 0.35
Code rate 1/2, 2/3, 3/4, 5/6, 7/8 (Automatic)
Spectral inversion Reverse, Non-reverse (Automatic)
DVB-S2 (IN)
Constellation QPSK, 8PSK (Automatic)
Symbol rate 1 - 55 MBaud (QPSK)
1 - 45 MBaud (8PSK)
Roll off factor 0.2, 0.25, 0.35 (Automatic)
Code rate 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 8/10 (QPSK-Automatic)
3/5, 2/3, 3/4, 5/6, 8/9, 9/10 (8PSK-Automatic)
Spectral inversion Reverse, Non-reverse (Automatic)
DVB-T (IN)
Bandwidth 6, 7, 8 MHz
Mode 2K, 8K
Constellation QPSK, 16QAM, 64QAM
Guard interval 1/4, 1/8, 1/16, 1/32
Code rate 1/2, 2/3, 3/4, 5/6, 7/8
DVB-T2 (IN)
Bandwidth 5, 6, 7, 8 MHz
Mode 1K, 2K, 4K, 8K, 16K, 32K (Included extended mode)
Constellation QPSK, 16QAM, 64QAM, 256QAM
Code rate 1/2, 3/5, 2/3, 3/4, 4/5, 5/6
DVB-C (Annex A,B,C) (IN)
Bandwidth 5, 6, 7, 8 MHz
Mode Automatic modulation detection
Constellation 16QAM, 32QAM, 64QAM, 128QAM, 256QAM
Transport Stream Processing
Services User selection by service names
Automatic regeneration PAT, CAT, SDT, PMTs, EITs tables
NIT Pass-through, custom,automatic
PCR re-stamping
LCN support Yes
RF Output
Type 4 x RF out in adjacent channels
Output Frequencies 110…950 MHz (1 Hz step)
Output Level 104dBµV
Connector 75Ω - F, female
Output Attenuator 0…-10dB
MER More than 42dB
DVB-T (OUT)
Bandwidth 5, 6, 7, 8 MHz
Mode 2K, 8K
Constellation QPSK, 16QAM, 64QAM
Guard interval 1/4, 1/8, 1/16, 1/32
Code rate 1/2, 2/3, 3/4, 5/6, 7/8
DVB-C (OUT)
Bandwidth 5, 6, 7, 8 MHz
Mode 2K, 8K
Constellation 16QAM, 32QAM, 64QAM, 128QAM, 256QAM
Symbol rate 1-7.2 Ms/s
IP Streaming
IP TS Out Yes
Protocol UDP / RTP (Multicast/Unicast)
Speed 1 Gbit
IGMP support Yes, v2, v3
Type MPTS (up to 4 TS)
SPTS (up to 64TS)
Max. bitrate 480Mbps max.
Programming Interface
Ethernet webserver Yes, embedded webserver
Speed 10/100 Mbps
Connector RJ45
Browser compatibility Chrome, Firefox, Safari, Opera, Edge et al.
General
Power supply 2 x +12VDC
Power supply consumption 1.8A max.
Operating temperature 0 °C to 40 °C
Storage temperature -10 °C to +70 °C
Humidity Up to 90%
Dimensions 235 x 115 x 48 mm
Weight 450 g
